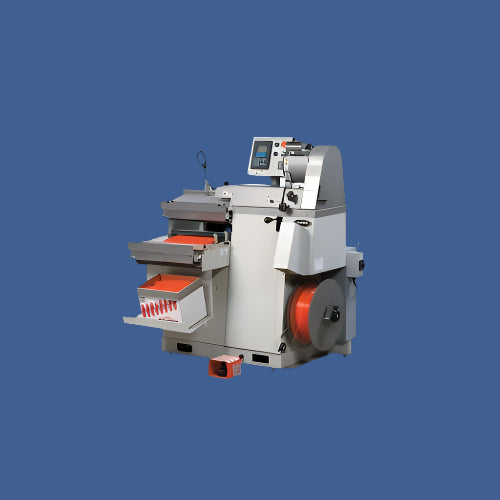

JBI CF30
JBI CF30 Plastic Coil Forming Machine: Produces 26 coil sizes (6mm–30mm), supports multiple pitches, and offers precise control for efficient in-house coil
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
Plastic coil forming machine
The JBI CF30 is a plastic coil forming machine for making spiral coil in-house. It forms multiple coil diameters and pitches, so a bindery can produce the coil each job needs on demand.
Key features
- Produces 26 coil diameters (6mm to 30mm; expandable to 50mm)
- Supports pitches of 4:1, 5:1, and 2.5:1
- Coil lengths adjustable from 6.5" to 43"
- Electronic temperature control
- Digital counter for box and total order tracking
- Automatic oiling system and hot start feature
- Interchangeable mandrel parts
- Compact design with quiet operation
Specifications
| Specification | Details |
|---|---|
| Model | CF30 |
| Manufacturer | James Burn |
| Item Number | 04JBCBFORMER |
| Coil Diameter Range | 6mm to 30mm (expandable to 50mm) |
| Coil Length Range | 6.5" to 43" |
| Supported Pitches | 4:1, 5:1, 2.5:1 |
| Sheet Size | 5" to 17" binding edge |
| Books per Hour | 750+ |
| Power Requirements | 220 V / 1-phase / 60Hz / 20A |
| Air Required | Yes |
| Dimensions (W x D x H) | 168.6" x 61.2" x 55" |
| Weight | 570 lbs |
Applications
- In-house spiral coil production
- High-volume bookbinding operations
- Commercial printing and finishing shops
Benefits
- Cuts coil inventory and packaging costs
- Makes coil on demand instead of waiting on stock
- Temperature control and the digital counter keep coil quality consistent
- Hot start and automatic oiling reduce waste
