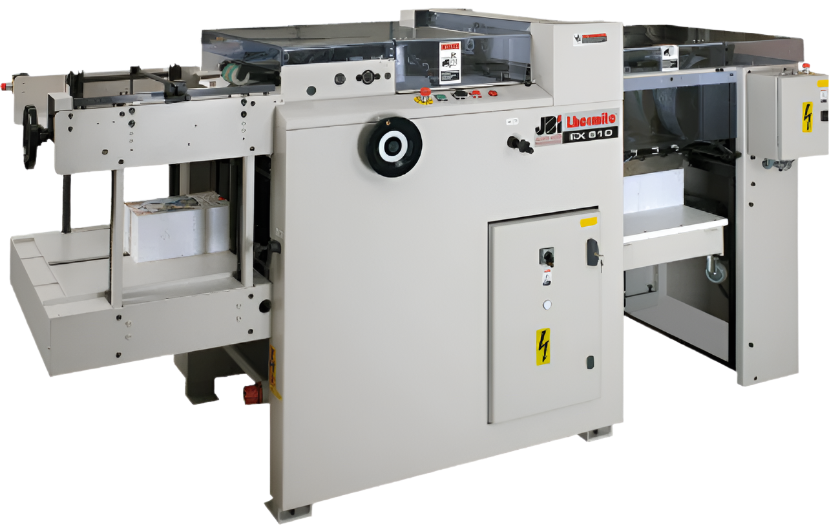

James Burn EX610
The James Burn EX610 automatic punching machine offers up to 7,200 cycles/hr with sheet sizes up to 610x700mm. Ideal for tabs, corners, and precision work.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Automatic Punching Machine
The James Burn EX610 is a high-output automatic punching system engineered for precision, speed, and versatility across a wide range of sheet sizes and substrates. With up to 7,200 cycles per hour and options like tab cutting, corner perforating, and even center-hole punching, the EX610 is ideal for commercial binderies and finishing lines requiring scalable, continuous punching operations. Available in several configurations including standard, duplex, and double-action models.
Key Features
đź”· Speeds up to 7,200 cycles per hour
đź”· Handles sheets up to 610 x 700 mm
đź”· Optional tab, corner, and mid-sheet punching
đź”· Compatible with thick and rigid boards (Duplex model)
đź”· Quick-change tool system with micro-adjustments
đź”· Continuous high-pile feeding and reception options
Specifications
| Specification | Detail |
|---|---|
| Max Sheet Size | Up to 610 x 700 mm (depending on model) |
| Min Sheet Size | 110 x 95 mm (standard) |
| Cycle Speed | Up to 120 cycles per minute |
| Punching Thickness | Up to 2.5 mm |
| Tool Change Time | Under 5 minutes |
| Voltage | 230/415V, 3-phase |
| Air Supply | 6 bar / 410 L/min |
| Dimensions (High Pile Ver.) | 2.80 x 1.04 x 1.40 m |
| Weight | 1,200–1,500 kg (depending on configuration) |
Applications
đź“„ Commercial print punching and perforating
đź“š Tabbed index and book finishing
📦 Packaging insert prep and die-cut perforations
🛍 Retail and calendar production with shaped cuts
Available Options
đź“Ť Duplex system for dual output and board handling
đź“Ť Double Action model for tab + line perforation
📍 Center-sheet “Punch Anywhere” functionality
đź“Ť Variable-speed conveyor or jogger output options
Benefits
âś… Highest punching speed in its class
âś… Extremely versatile across sheet sizes and materials
âś… Reduces manual handling with continuous feeding
âś… No marking during punching thanks to belt-free contact zone
âś… Designed for heavy-duty production workflows
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
