Max-Air T4822 Shrink Tunnel
Authorized Heat Seal dealer. The Max-Air T4822 is a 48 in shrink tunnel with three heat zones and a variable-speed roller conveyor. Michigan sales and service.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Access system layout diagram here

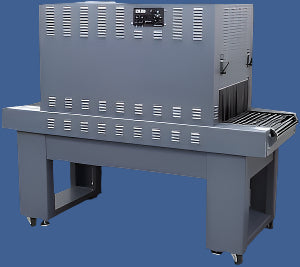

The Max-Air T4822 is an industrial-grade shrink tunnel with a compact footprint, built for medium- to high-volume shrink wrapping in production and fulfillment settings. The tunnel chamber is 48" long with three heat zones and dual mechanical airflow controls, so heat stays even across the product. A variable-speed roller conveyor, digital temperature controls, and an automatic cool-down cycle are standard, and a stainless steel version is available for food, pharmaceutical, and corrosive environments.
Key features
- Three heat zones with dual airflow adjustments for consistent heating through the tunnel
- 48" tunnel chamber takes products up to 22" wide and 8" high
- Digital temperature controls with built-in overheat protection
- Automatic cool-down cycle extends the life of the heating elements
- Live/dead roller conveyor: high-temperature silicone-covered rollers on 2" spacing with a quick-change design
- Variable conveyor speed, 0-30 ft/min standard or 0-70 ft/min on the live/dead roller version
- Height-adjustable console on casters for flexible floor placement
- Optional stainless steel construction for food, pharma, or corrosive environments
Specifications
| Specification | Details |
|---|---|
| Tunnel size | 48" L x 22" W x 8" H (122 x 56 x 20 cm) |
| Conveyor speed | 0-30 ft/min (standard), up to 70 ft/min (LDR) |
| Roller type | 1/2" dia. silicone-covered live/dead rollers (2" spacing) |
| Overall dimensions | 74" L x 31" W x 58" H (189 x 79 x 148 cm) |
| Power requirements | 208-240V, 65 Amps, 3 Phase |
| Wattage | 18,000 Watts |
| Weight | 675 lbs (307 kg) |
Applications
The T4822 shrink wraps consumer goods, kits, and promo packs for retail, bundled books, documents, and mailers in print and publishing, food and beverage products on the stainless model, and inline or standalone work in contract packaging and fulfillment operations.
Available options
- Stainless steel construction (T4822S) for sanitary and corrosive environments
- Stainless or non-stick mesh belt conveyor to prevent sticking and support specialized films
- 1" roller spacing for smaller packages or tighter control
- 12" tunnel opening for taller product heights
- Reverse conveyor flow to adapt to varied facility layouts
Shrink coverage stays even across a wide range of product shapes, the auto cool-down and overheat protection reduce wear on the heating system, and the footprint fits mid-sized production lines.
About Heat Seal Max-Air shrink tunnels
Heat Seal builds its Max-Air shrink tunnels in the USA. The Max-Air line spans compact 26 in tunnels up to the 48 in T4822 and T4832. Mid-State Litho is an authorized Heat Seal dealer and services the tunnels and companion L-sealers. Browse our shrink tunnels and Heat Seal packaging equipment.
How to choose a Heat Seal shrink tunnel
- Compact tunnels: T2615 ($8,830), T2622 ($9,950), T3417 ($10,610), T3422 ($11,730).
- Mid-volume 48 in: Max-Air T4822 (this page, $15,810).
- Heavier-duty 48 in: Max-Air T4832 ($24,790 MSRP).
- Banding tunnels: SB2615 ($9,690), SB3422 ($13,040).
- Combo shrink system (tunnel plus L-sealer): HDX250 ($16,830).
Frame the choice by package size, throughput, tunnel width, and whether the shop needs a combo L-sealer plus tunnel (HDX250) instead of a stand-alone tunnel. Point heavier runs to the T4832 and combo buyers to the HDX250. See all shrink wrapping equipment.
Why buy the Max-Air T4822 from Mid-State Litho
- Authorized Heat Seal dealer since 1984, based in Michigan and serving the Great Lakes region.
- Factory-trained technicians for setup, heat-zone tuning, and service.
- Installation, operator training, and companion L-sealer and film support. See service.
- Equipment financing available as a monthly number.
- Freight handled and quoted; the T4822 ships as a 675 lb freight item.
Frequently asked questions
What size is the Max-Air T4822 tunnel?
It has a 48 in heated tunnel with three heat zones and a variable-speed roller conveyor.
What is the T4822 built for?
Mid-volume production and fulfillment shrink wrapping. It uses dual mechanical airflow controls and a digital temperature interface for even, repeatable shrink.
What films does it run?
It handles common shrink films. Call us with your film type and package size so we match the tunnel and conveyor speed.
How does the T4822 compare to the T4832?
Both are 48 in tunnels. The T4832 is the heavier-duty step up ($24,790 MSRP). The T4822 fits mid-volume runs. Call 800-544-9010 for a comparison.
Does Mid-State Litho sell and service Heat Seal tunnels in Michigan?
Yes. We are an authorized Heat Seal dealer with factory-trained technicians serving Michigan and the Great Lakes region.
