Triumph Speedcut 68 Programmable Hydraulic Paper Cutter
Triumph Speedcut 68 Programmable Hydraulic Paper Cutter
This item includes free freight. The shipment will come by truck. (Shipping Policy)
Couldn't load pickup availability
Triumph Speedcut 68 Programmable Hydraulic Paper Cutter
Next-generation programmable cutting with electro-mechanical precision blade drive, hydraulic clamping, and advanced operator safety.

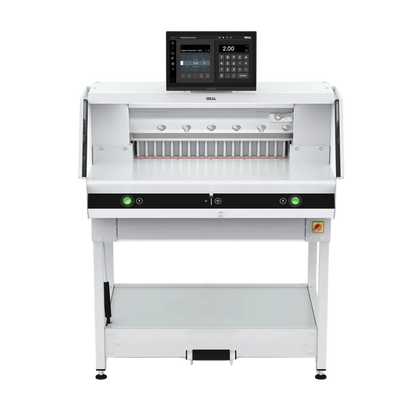

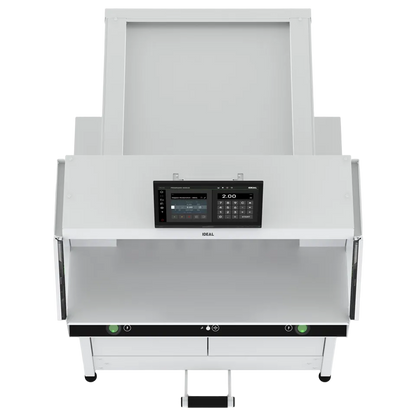

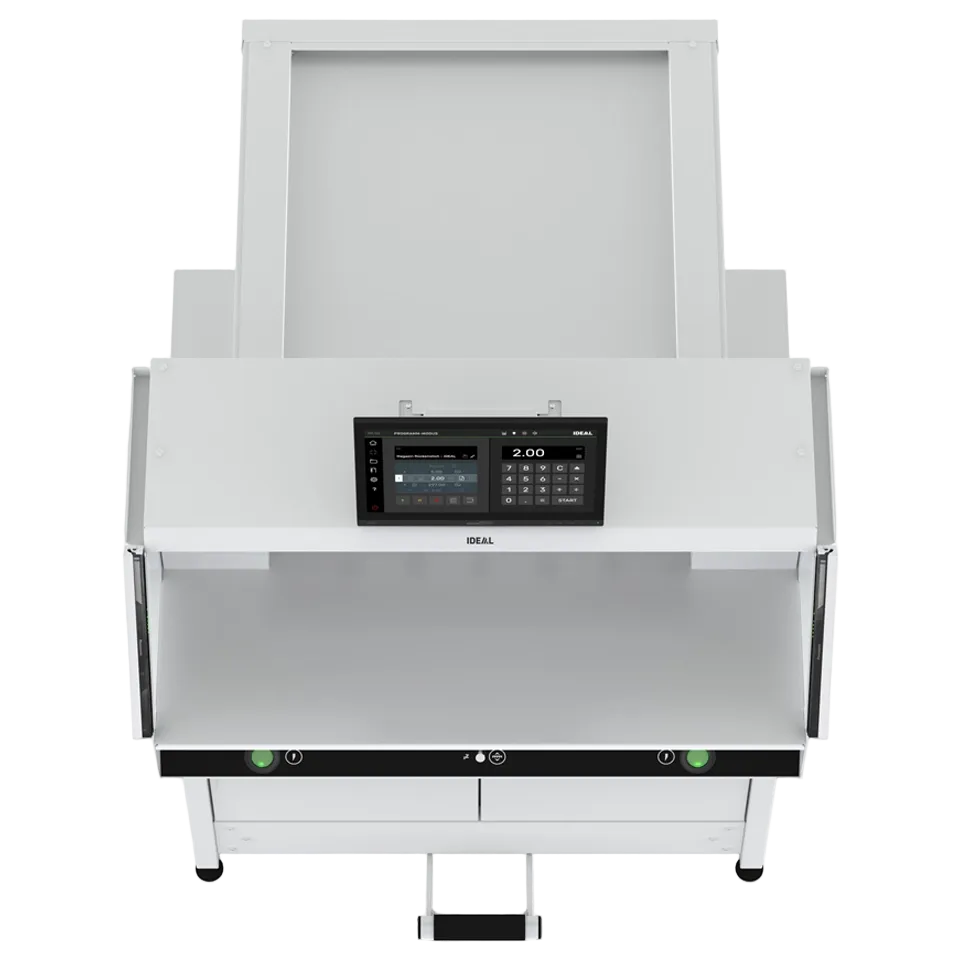

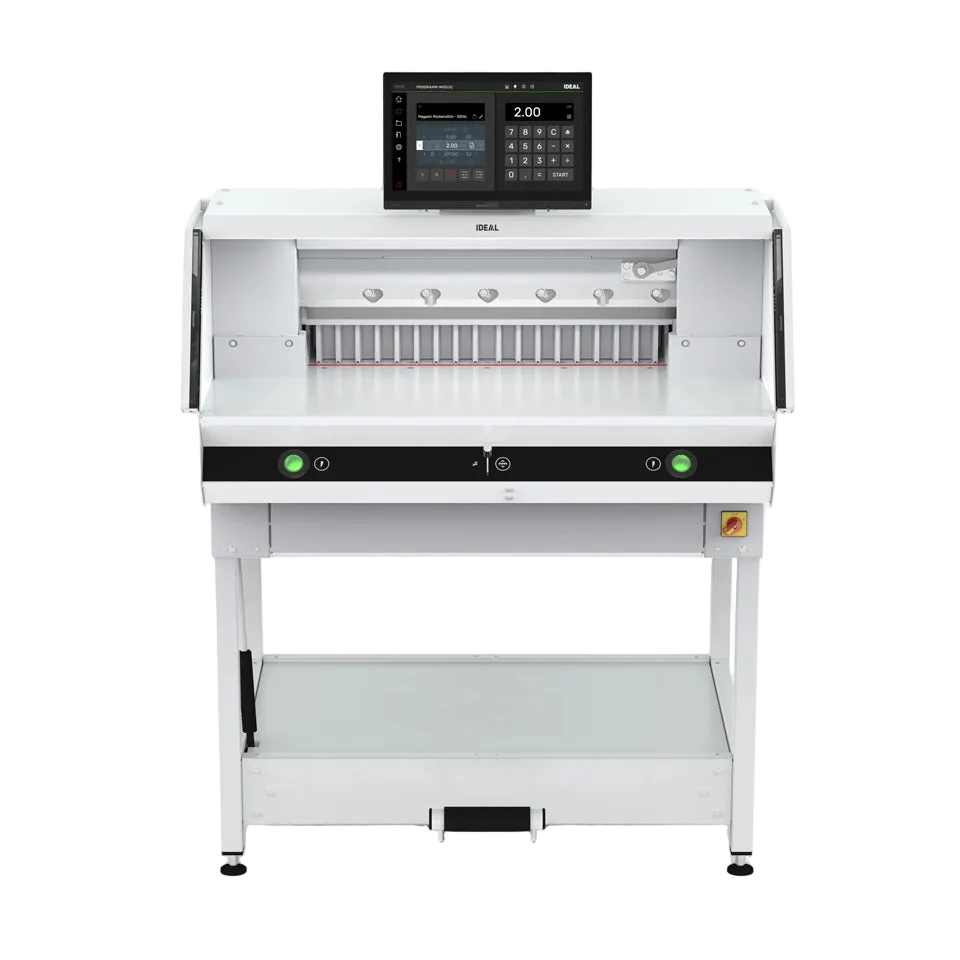

The Triumph Speedcut 68 is a programmable hydraulic powered paper cutter built to increase efficiency and productivity by working smarter. A large 15.6” multi-touch display streamlines operation, while the precision backgauge system supports accurate, repeatable cutting.

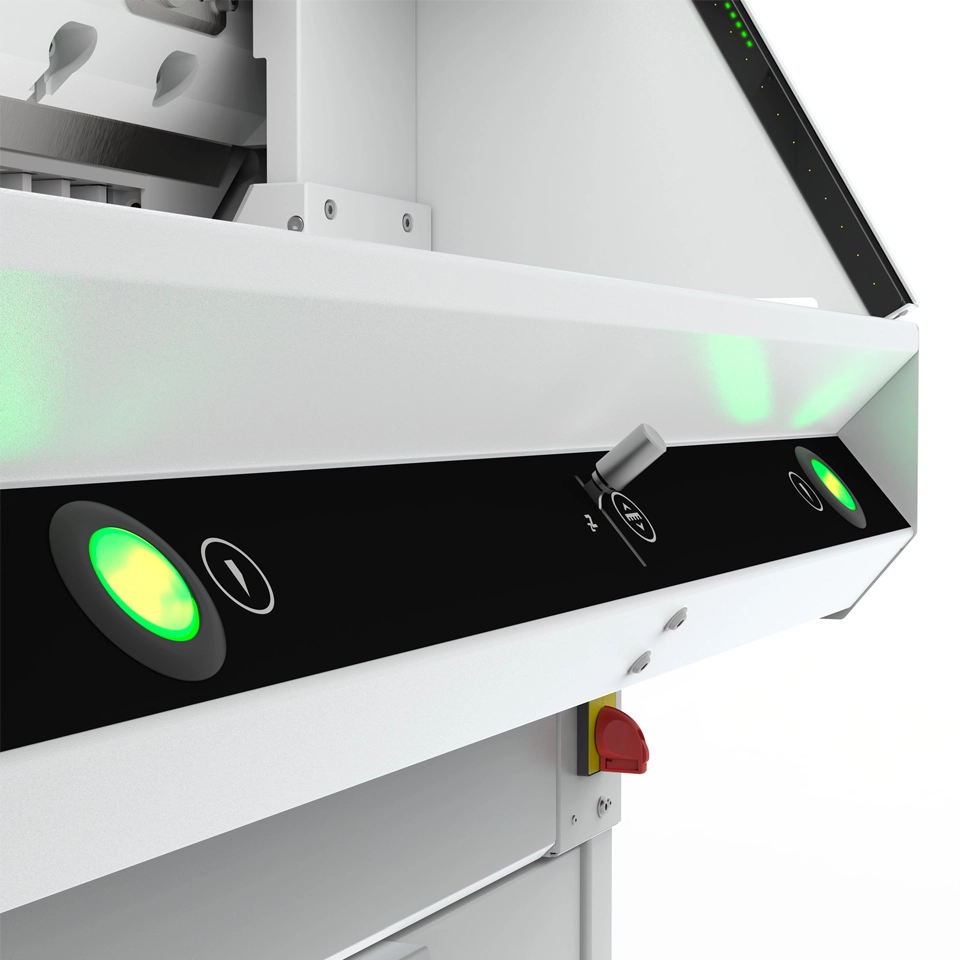

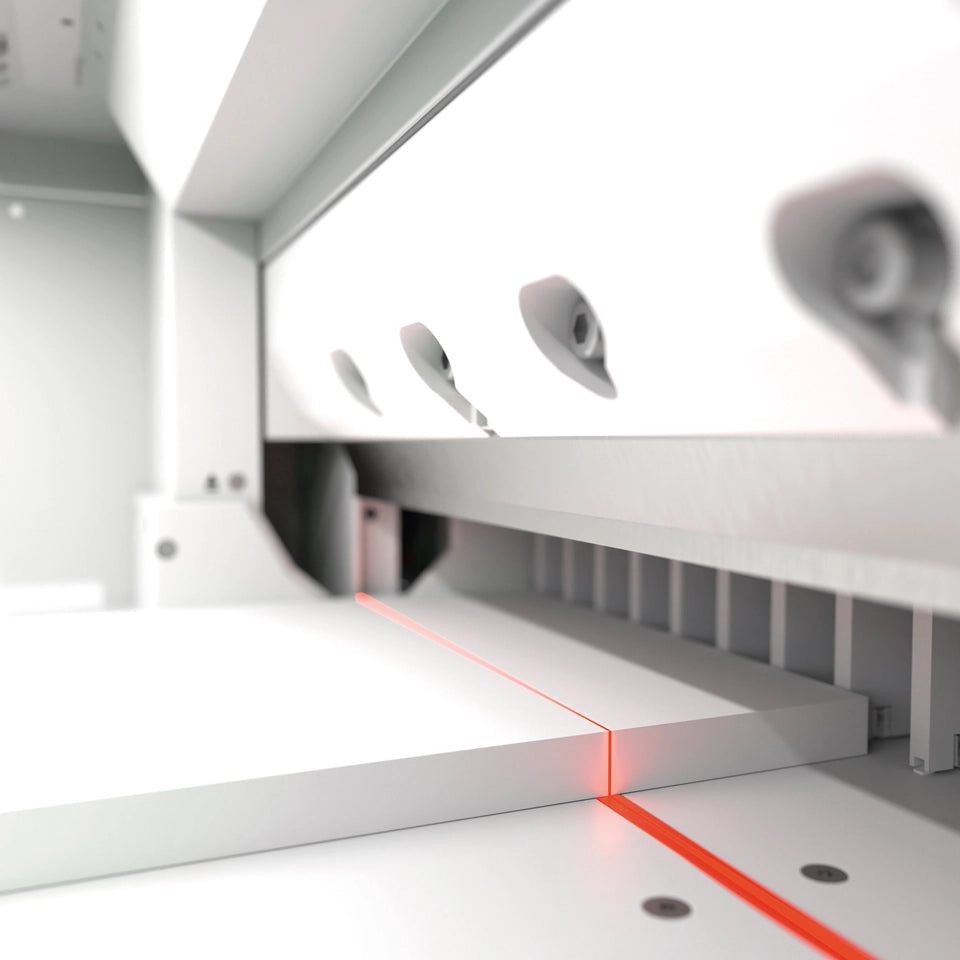

For operator protection and secure production use, the Speedcut 68 includes a comprehensive safety package with an IR light beam safety curtain, plus true two-hand cut activation with integrated optical status signals.

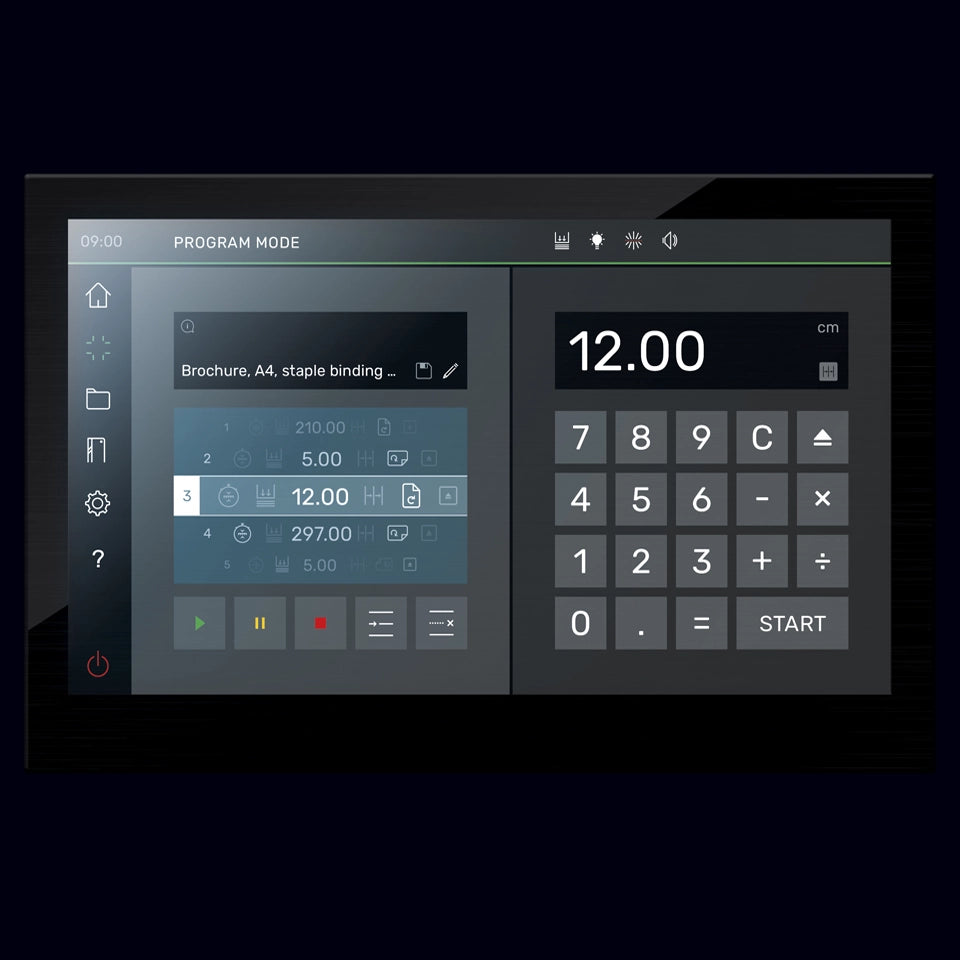

- 15.6” tilt-adjustable multi-touch display with intuitive touch and swipe control
- Electro-mechanical precision blade drive paired with hydraulic clamp drive
- IR light beam safety curtain and comprehensive safety package
- Pin-controlled electronic code lock to secure the machine
- Infinitely programmable clamp pressure adjustment for mixed stocks
Mid-State Litho is an authorized Triumph dealer and has equipped commercial print shops, binderies, and in-plant production teams across Michigan and the Great Lakes since 1984. We sell, install, service, and finance the Speedcut 68 in-house, so the team that quotes the machine is the team that keeps it running.
- Mechanical foot clamp for independent pre-clamping or cutting line indication
- Manual fine adjustment control for maximum backgauge precision at the front of the machine
- High-quality special steel knife with patented knife depth adjustment
- Integrated cutting stick change function and integrated tool storage
- Pallet jack compatible stand with lower storage shelf
| Cutting width | 26.77” |
|---|---|
| Cutting height | 3.15” / 3” (with false clamp) |
| Narrow cut | < .6” / 2.3” (with false clamp) |
| Table depth | 26.77” |
| Table height | Adjustable from 37.4” – 39.3” |
| Electrical requirements | 120 V, 60 Hz (20 amp dedicated line required) |
- –Production cutting for digital print sheets and short-run finishing
- –Bindery trimming for book blocks, covers, and inserts
- –Collateral and packaging work requiring consistent, repeatable cut programs
- –In-plant and commercial environments needing secure, operator-friendly operation
- –Speedcut software for automating cutting programs

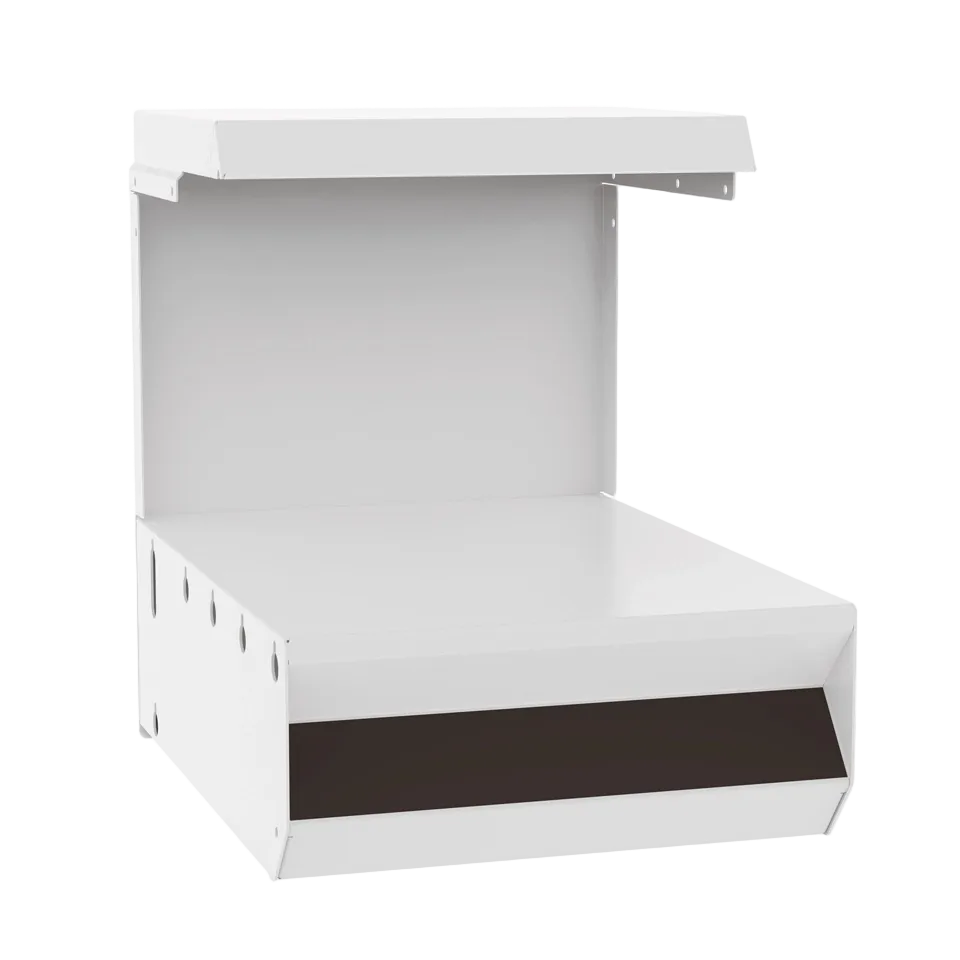

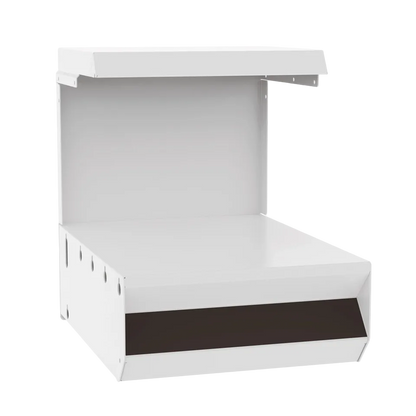

- –Optional side tables
- –Speedcut 68 LT with front and rear air tables (special order)
- –Increases throughput with faster clamp and cut cycles and faster backgauge movement
- –Improves cut accuracy through precision backgauge control and fine adjustment
- –Reinforces shop-floor safety with IR curtain protection and two-hand activation
- –Supports reliable daily production with robust knife and clamp design features
As an authorized Triumph dealer, Mid-State Litho backs every Speedcut 68 with in-house, factory-trained service technicians, not a national call queue. We handle delivery, installation, and operator training, and we keep wear parts such as knives and cutting sticks on hand. Equipment financing and leasing are available through Mitsubishi HC Capital and LEAF Commercial Capital, and we accept trade-ins on older cutters. Based in the Great Lakes region, we give you same-region response when a deadline is on the line.
The Triumph cutter line scales by cutting width. Tabletop manual and semi-automatic models (4305, 4315, 4350) handle about 16.8 inches; the 48-series and 52-series cover roughly 18.5 to 20 inches. Hydraulic production cutters start with the 55-series, including the air-table Triumph 5560 LT at 21.6 inches, and the Triumph Speedcut 56 at 22 inches. The Triumph 6660 covers 25.5 inches. The Speedcut 68 sits near the top of the line at 26.77 inches, a high-speed hydraulic guillotine cutter for production digital and bindery work, with only the Triumph 7260 at 28 inches above it.
What is the cutting width of the Triumph Speedcut 68?
26.77 inches.
Is the Speedcut 68 hydraulic?
Yes. It pairs an electro-mechanical precision blade drive with a hydraulic clamp drive for consistent pressure and repeatable cuts.
What is the difference between the Speedcut 68 and the Speedcut 68 LT?
The LT configuration adds front and rear air tables that make it easier to move and align large stacks. It is a special-order option.
What electrical supply does the Speedcut 68 need?
120 volts, 60 Hz, on a dedicated 20-amp line.
Does Mid-State Litho install and service the Speedcut 68?
Yes. Our factory-trained technicians handle installation, operator training, and ongoing service across Michigan and the Great Lakes.
