Morgana AutoCreaser Pro XL
Morgana AutoCreaser Pro XL is a high-speed, precision creaser eliminating cracking on digital & conventional prints, handling sheets up to 51” long.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

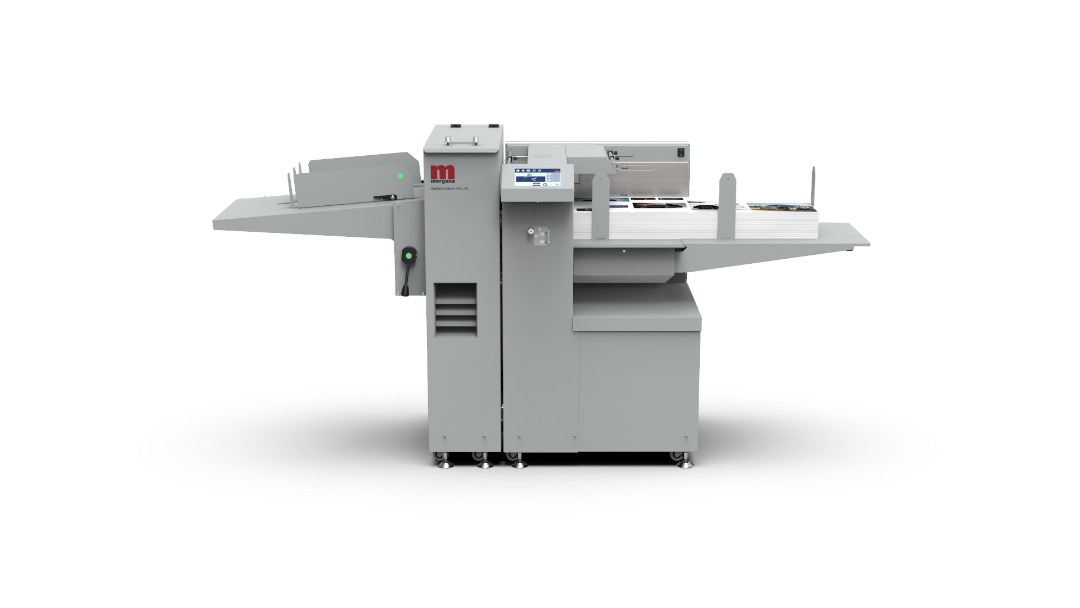

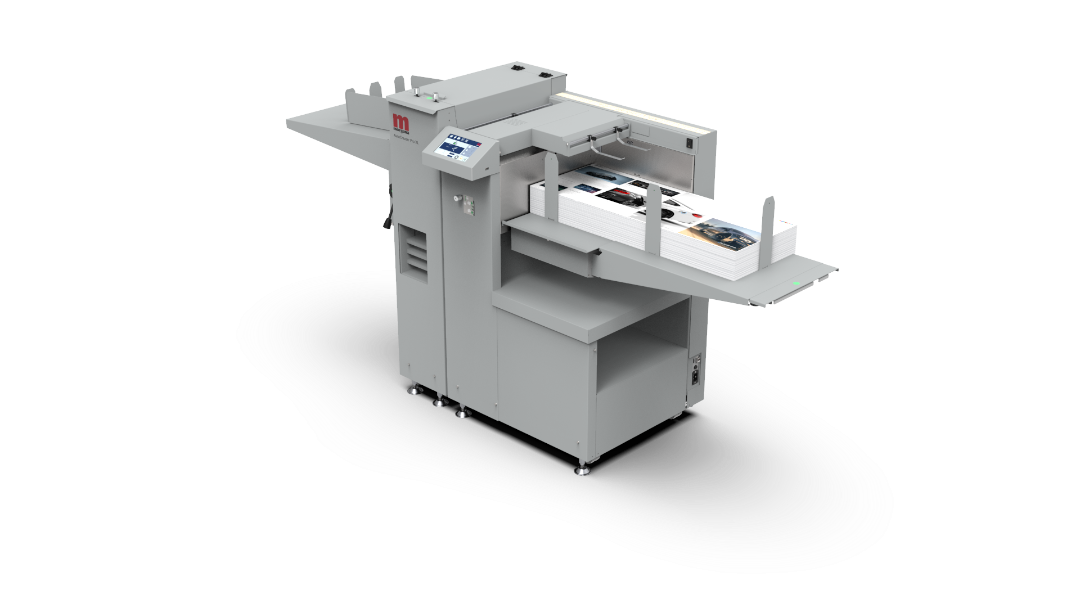

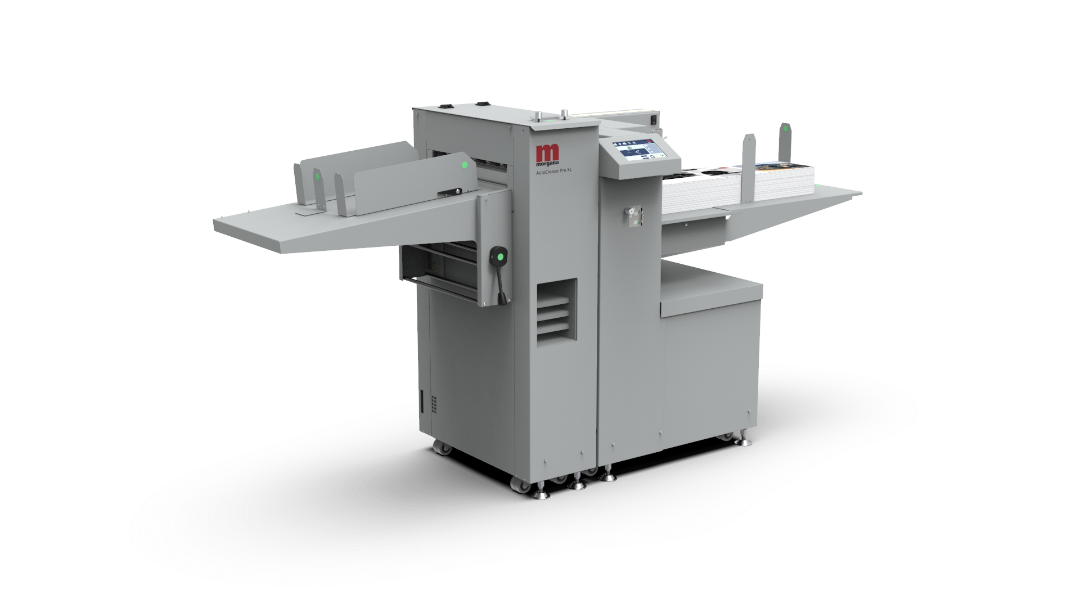

The Morgana AutoCreaser Pro XL is a high-performance automatic creasing system designed to eliminate cracking on digitally printed and conventionally printed materials. It is ideal for high-volume production, handling laminated, cross-grained, and heavy stock with precision. This machine offers automatic feeding, adaptive process control, and an extended table option, making it perfect for print shops, in-house production facilities, and commercial printers.
See a case study on this system here!
Key Features

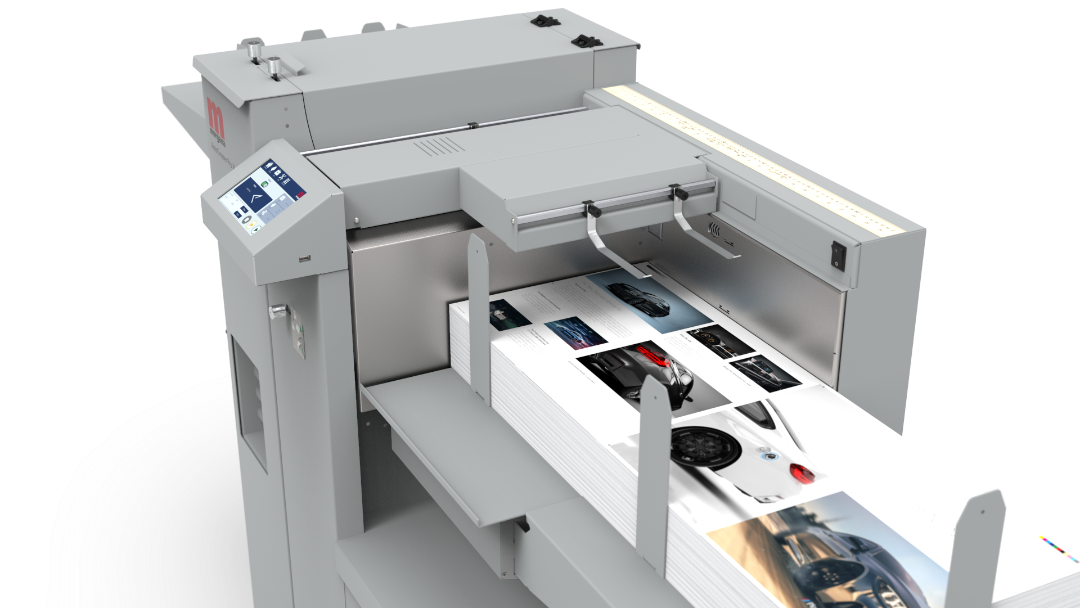

🔹 Edge Registered Vacuum Top Feeder – Large 7.9” (200mm) capacity for continuous operation
🔹 Adaptive Process Control (APC) – Monitors and adjusts sheet feeding in a closed-loop system for exceptional accuracy
🔹 Automatic Feeding Parameter Selection – Automatically adjusts based on paper size and thickness for operator-friendly setup
🔹 Ultrasonic Double Sheet Detection – Prevents misfeeds and ensures job accuracy
🔹 Table Extension for Long Sheets – Handles sheets up to 51” (1300mm) for large-format applications
🔹 Powerful Creasing Unit – Supports standard, narrow, and optional perforation blades

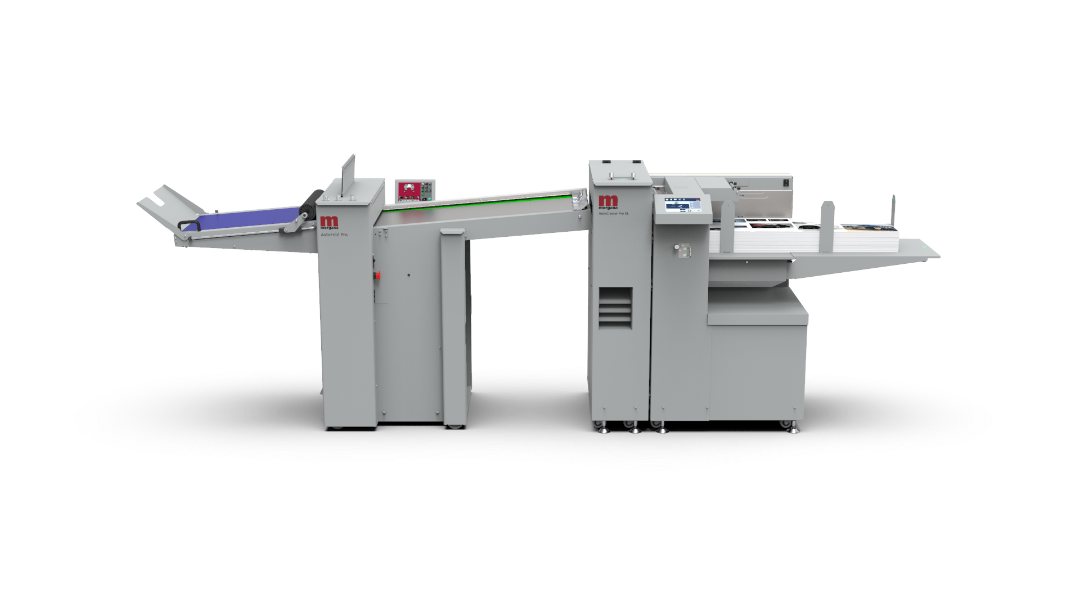

🔹 Optional Second Creaser – Up/down creasing in a single pass, increasing efficiency
🔹 Tool-Free Blade Changes – Quick and easy without requiring special tools
🔹 Inline Rotary Perforation – Standard feature with a variety of wheels available for customization
🔹 Optional Cross Perforation Unit – Expands capability for advanced finishing applications
Technical Specifications
| Specification | Details |
|---|---|
| Max. Sheet Size | 15.2” x 27.6” (Extended: 15.2” x 51”) |
| Min. Sheet Size | 3.7” x 8.3” |
| Max. Paper Thickness | 0.0157” (0.4mm) |
| Max. No. of Creases | 30 (Up to 60 with 2 creasers) |
| Min. Distance Between Creases | 0.004” (0.1mm) |
| Max. Load Capacity | 7.9” (200mm) |
| Speed per Hour (A4 Half-Fold) | 8,500 sheets |
| Feeding System | Vacuum belt top-fed with Advanced Process Control (APC) |
| Weight | 673lb (305kg) incl. packing |
| Power Requirement | 1 phase 230V 50/60Hz |
| Sound Power Level | 78 dB(A) |
Applications

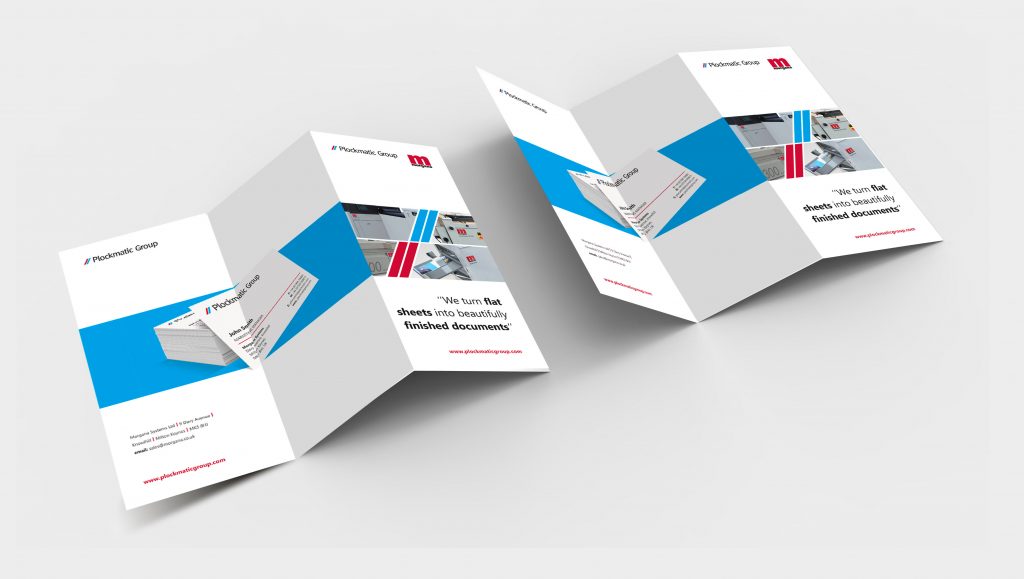

📄 Digital Print Finishing – Eliminates cracking for digitally printed stock
🎨 Conventional Print Finishing – Creases laminated, coated, and textured stock with precision
🎟️ Perforated Applications – Ideal for tickets, tear-off vouchers, and coupon sheets
Software Compatibility

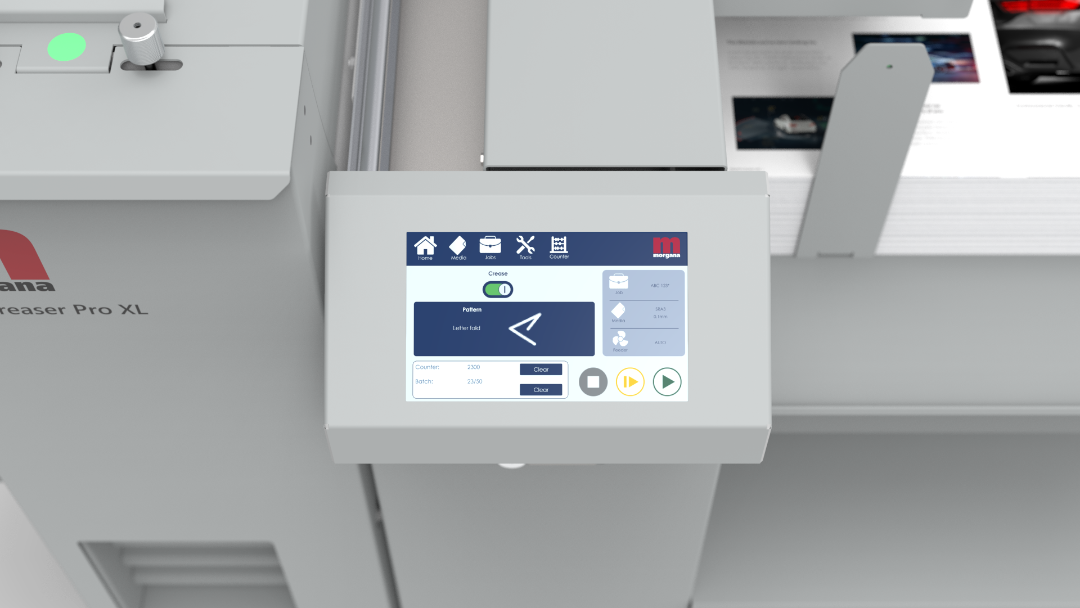

✔ Automated Crease Positioning – Reads job files and automatically positions creases
✔ Job Memory Recall – Saves unlimited job programs for fast repeat setup
✔ EasyBlade System – No tools needed for quick blade changes, minimizing downtime
Rotary Perforation Comes Standard:
