DocuFold Pro Product Description:

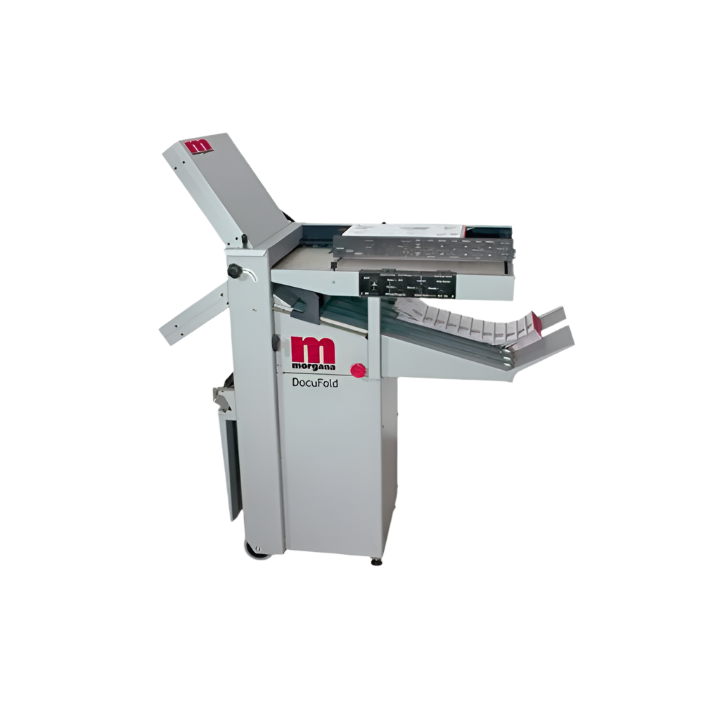

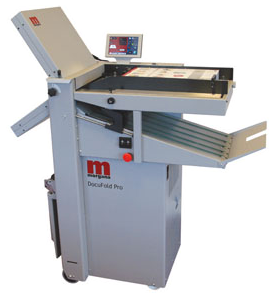

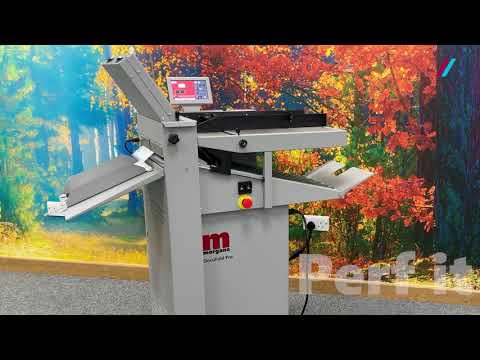

The Morgana DocuFold Pro is a fully automatic paper folding machine designed for litho or digital stock. Featuring SmartScreen technology, this machine offers easy operation with an icon-driven touch screen.
Key features include:
- Powerful suction feeder
- 7" SmartScreen
- Side lay alignment
- Low-pressure suction chamber
- Enclosed fold plates with anti-static brushes
- Perforating and scoring attachment
- Variable speed up to 27,500 sph
- Catch tray
- Driven delivery belt stacker
- Counting & batching functions
- Double sheet and jam detector.

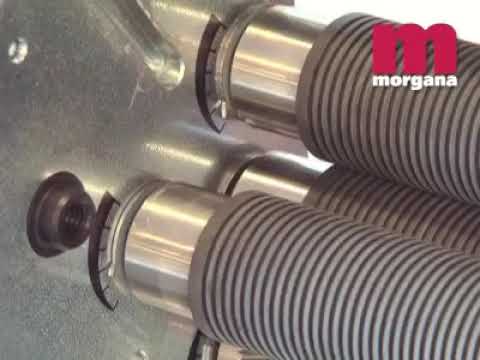

The design focuses on automation for simplicity and efficiency. The SmartScreen allows for easy setup by entering sheet size and fold type, automatically adjusting fold plates and delivery rollers. The machine's fold rollers adapt to various fold types and paper weights without manual adjustment. Anti-static brushes aid in discharging print material, while the pressure suction chamber controls curled paper for smooth feeding into the fold rollers.
Technical Specifications:
| Maximum Sheet Size: |
26.5" x 14.3" |
| Minimum Sheet Size: |
6.2" x 5.5" (3.7" with optional narrow sheet attachment) |
| Maximum Paper Weight: |
90lb cover (varies according to material and grain direction) |
| Minimum Paper Weight: |
16lb bond |
| Load Capacity: |
500 sheets 22lb bond |
| Maximum Number Programs: |
Unlimited alpha numeric |
| Speed per Hour (8.5" x 11"):: |
27,000 (Stream Feed) |
| Dimensions: |
L 48.8" x W 21.8" x H 53.9" |
| Weight |
260 LB |
| Power Requirement: |
240v 50/60hz |
| Options: |
Electric rear delivery, Cross-fold, Narrow sheet guide |
| Note: Equipment specifications subject to change without notice. Please refer to equipment brochure for additional information. |
