Morgana Digifold Pro XL
DigiFold Pro XL is a high-speed automatic creasing and folding system with a top-fed vacuum feeder, dual folding knives, and cross perforation for long sheets.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

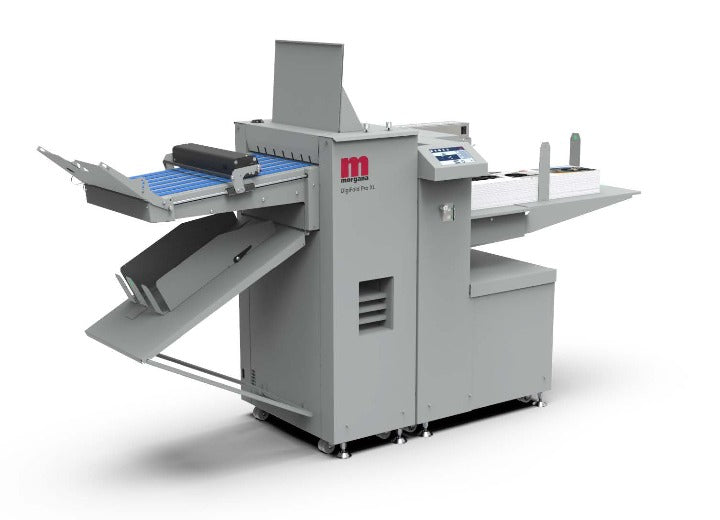

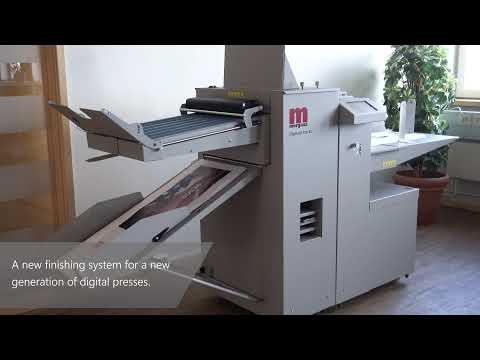

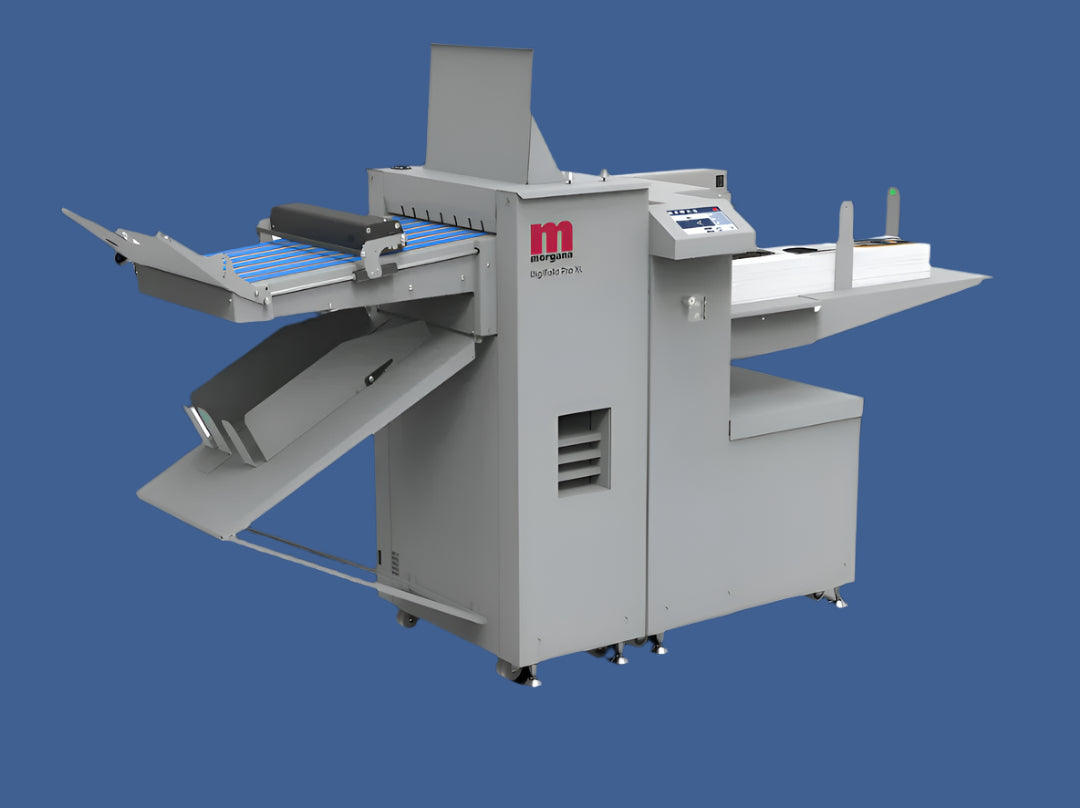

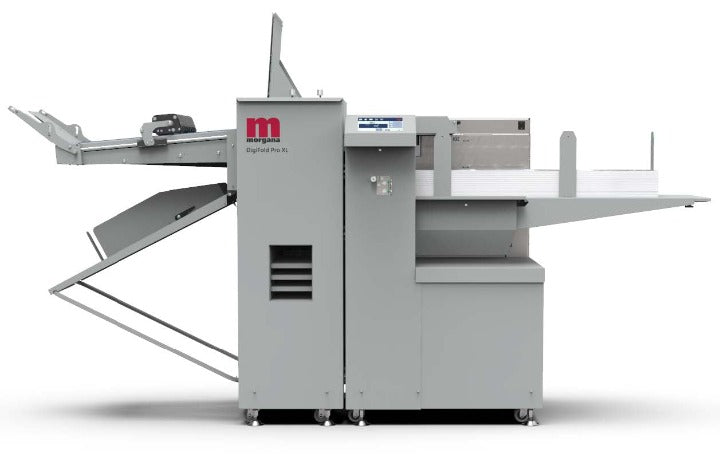

The Morgana DigiFold Pro XL is a high-speed creasing and folding system designed to handle long sheets up to 51.2”, making it ideal for digital and offset production environments. Built for mid-to-high volume operations, this system ensures precise, crack-free creasing and folding for book covers, landscape brochures, multi-panel documents, and oversized prints.
Key Features
🔹 High-Speed Folding & Creasing – Folds up to 6,000 A4 sheets per hour and creases up to 7,500 sheets per hour

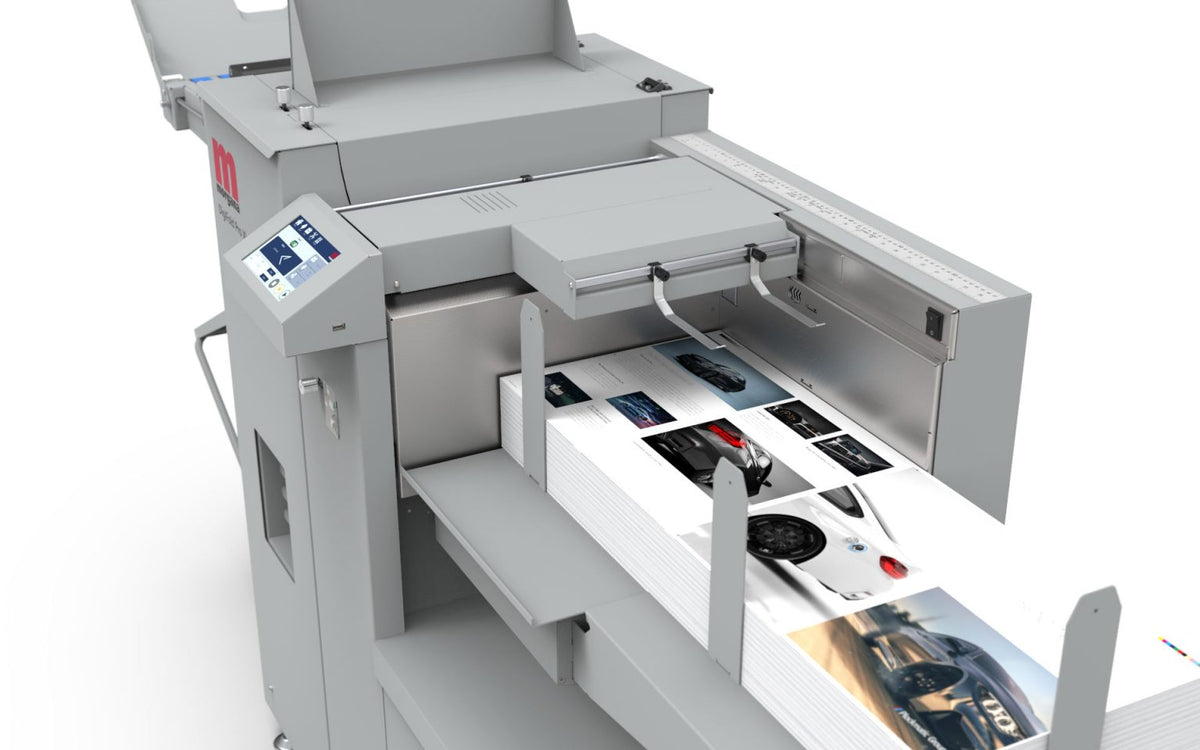

🔹 Vacuum Top Feeder – Stable, continuous feeding with a 7.9” stack capacity
🔹 Automated Setup – Enter sheet size, media type, and thickness, and the machine automatically configures speed, roller gap, and fan settings
🔹 Air Knife System – Prevents double feeds and ensures perfect separation for slippery stocks

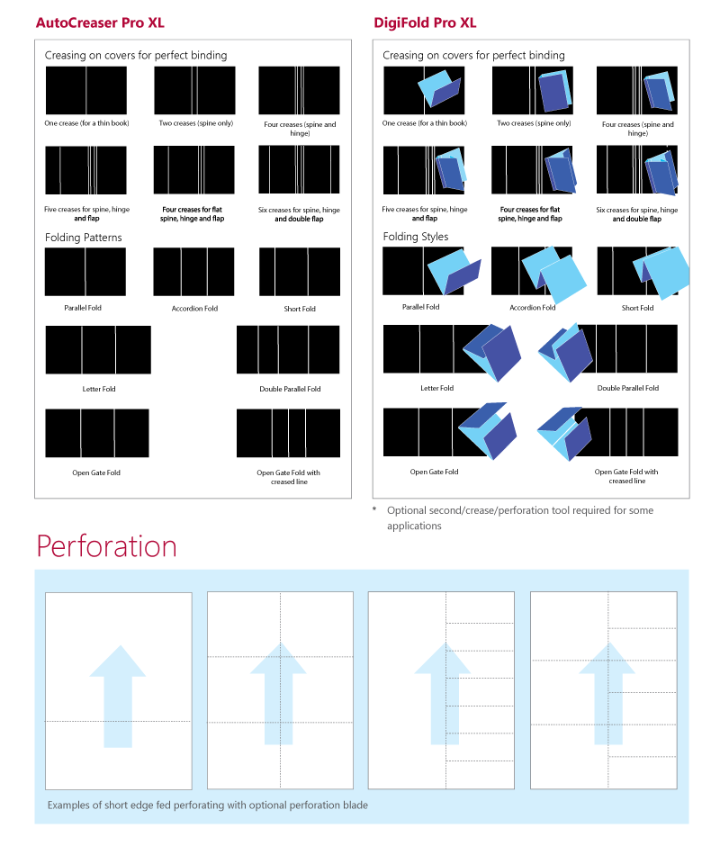

🔹 30 Creases Per Sheet – Handles multiple creases per sheet for precision folding
🔹 Inline & Cross Perforation – Standard inline perforation, with optional full cross-perforation unit

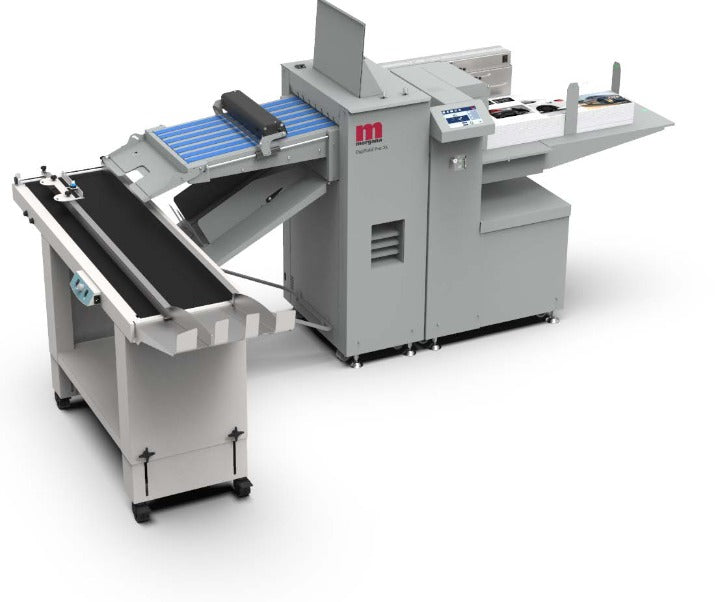

🔹 Dual Folding Knives – Provides a choice between a belt stacker for folded sheets and a delivery tray for creased-only jobs
🔹 Open Feeder Design – Easy loading and unloading of long, heavy stacks

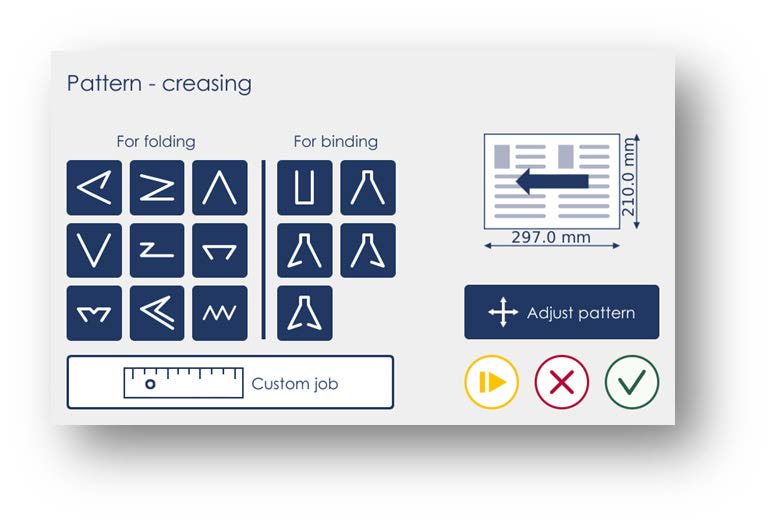

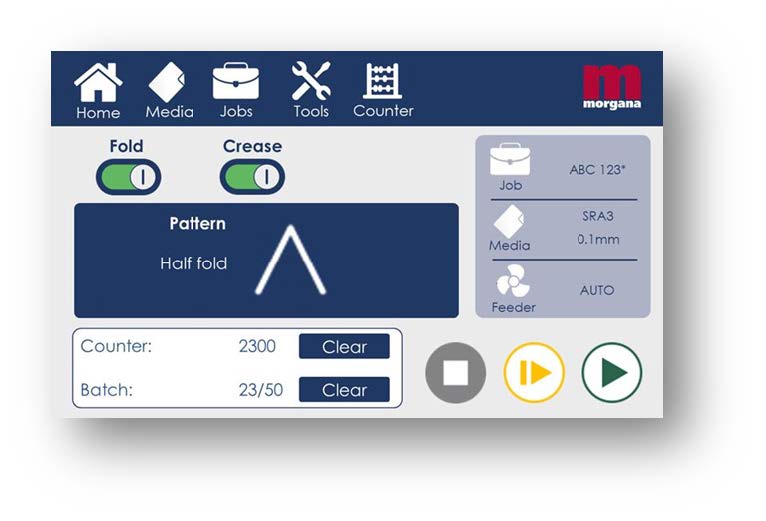

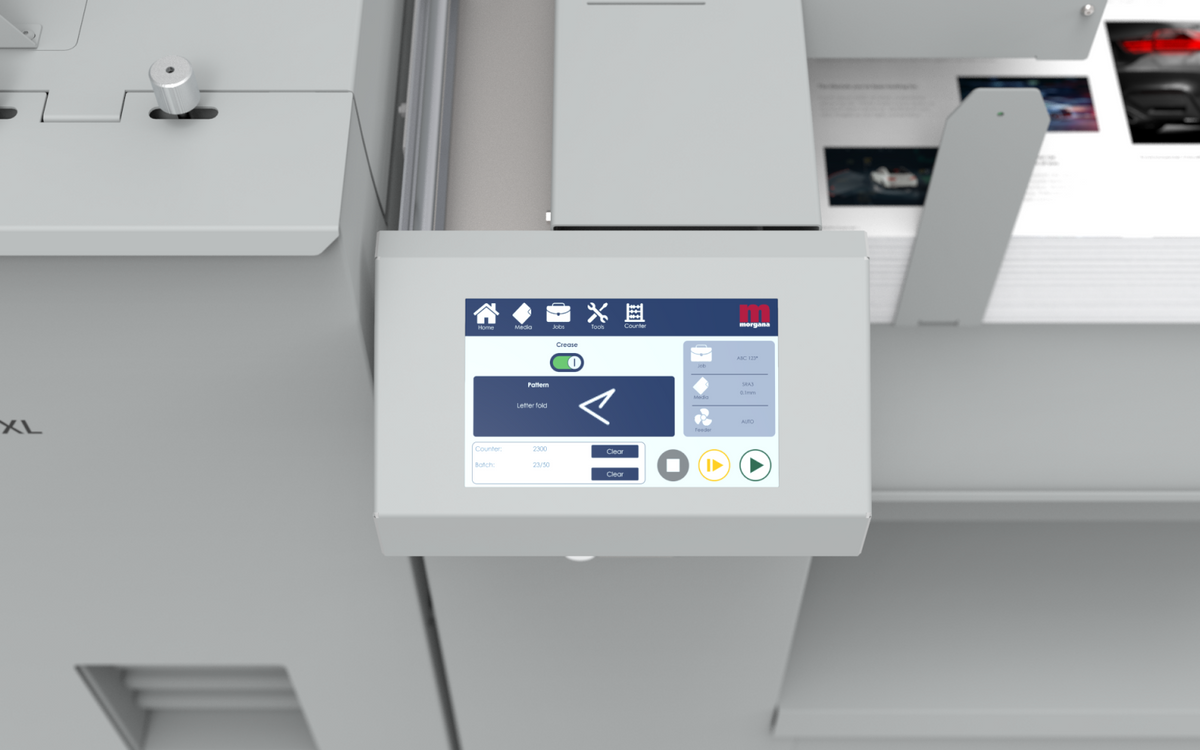

🔹 User-Friendly Touchscreen – Full job overview, live adjustments, and quick pattern access
Technical Specifications
| Specification | Details |
|---|---|
| Max. Sheet Size | 15.2” x 27.6” (15.2” x 51” with table extension) |
| Min. Sheet Size | 3.7” x 8.3” |
| Max. Paper Thickness | 0.0157” (0.4mm) |
| Max. No. of Creases | 30 (with DynaCrease tool and static creasing tool) |
| Max. Speed | 6,000 A4 sheets per hour (folding), 7,500 sheets per hour (creasing) |
| Loading Capacity | 7.9” stack |

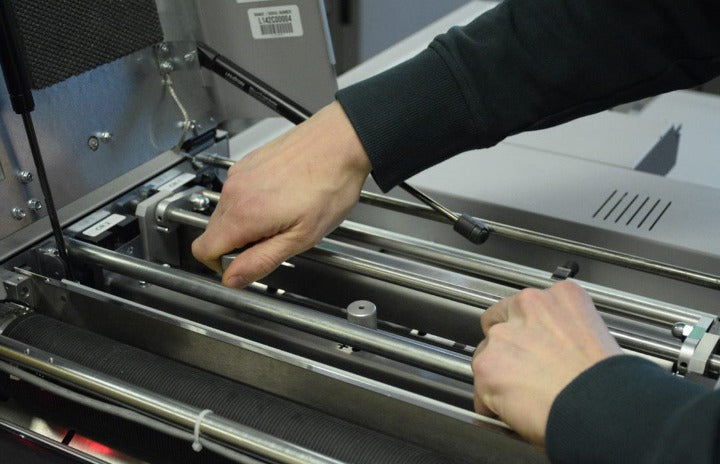

| Creasing Tools | Up to two (one DynaCrease, one static crease optional) |
| Inline Perforation | Standard |
| Cross Perforation | Optional (included with static crease kit) |
| Feed Technology | Vacuum belt top-fed with Advanced Process Control (APC) |
| Weight | 811lb (incl. packing) |
Applications
📄 Digital Print Finishing – Eliminates cracking on digital prints
📚 Conventional Print Finishing – Ideal for coated, laminated, and cross-grain stocks
🎟 Perforated Products – Perfect for tear-off vouchers, tickets, and coupons
📖 Book Covers & Multi-Panel Brochures – Oversized landscape booklets and perfect-bound covers
Software Compatibility
✔ Automated Job Setup – Stores folding and creasing settings for quick recall
✔ Live Adjustments – Make real-time modifications while running
✔ Touchscreen Control – Simple interface for intuitive job setup
The Morgana DigiFold Pro XL is a high-speed, precision creasing and folding solution designed for digital and offset finishing. With automated job setup, vacuum feeding, and seamless long-sheet handling, it’s the perfect addition to any high-volume finishing workflow.
