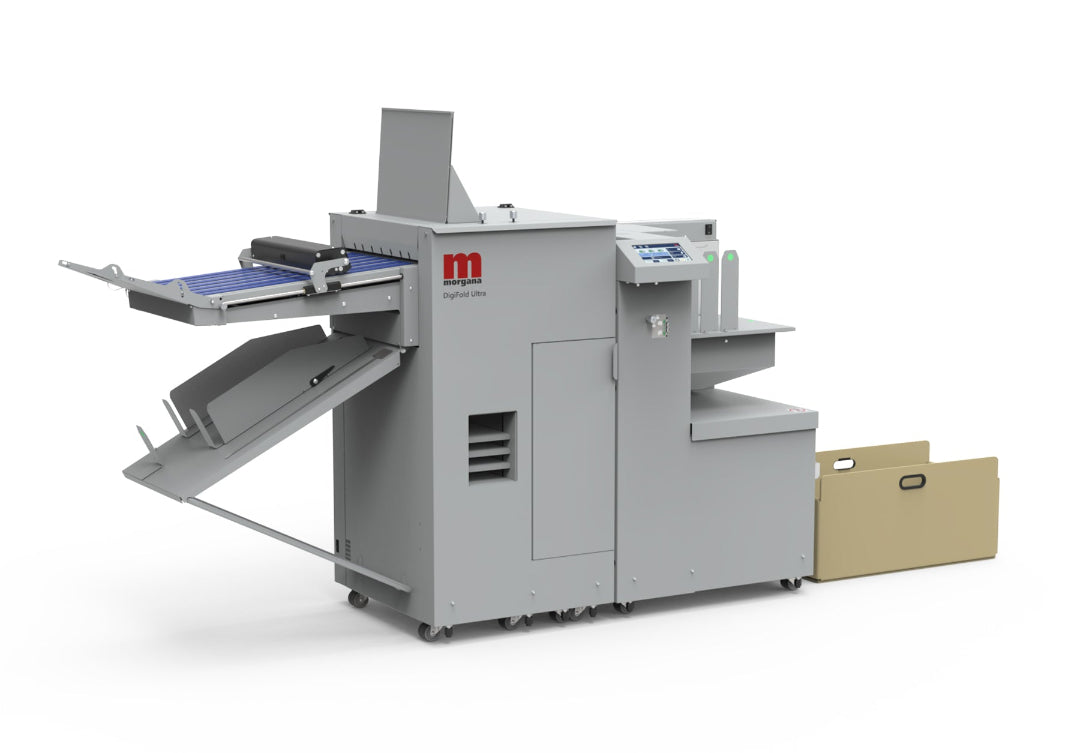

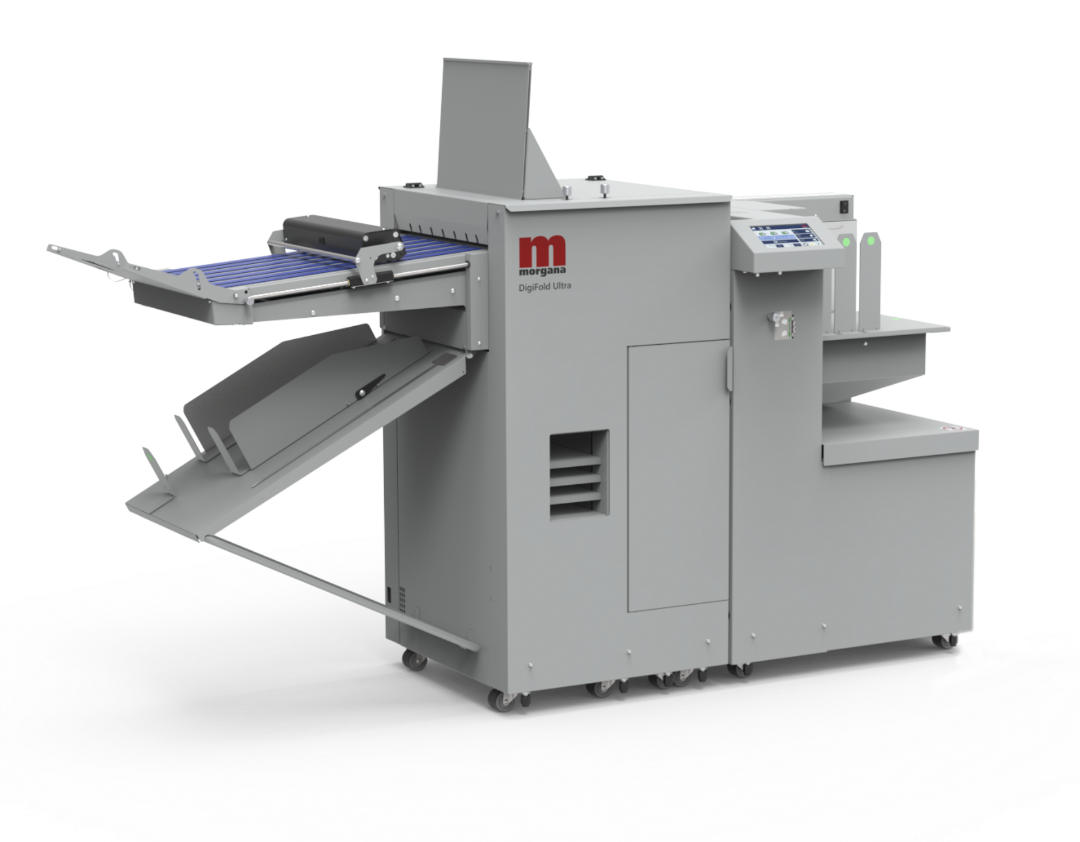

The Morgana DigiFold Ultra is a versatile and advanced creasing and folding machine, purpose-built for digital and offset print environments. With the ability to slit, cut, crease, perforate, and fold in a single pass, it simplifies finishing operations while delivering unparalleled productivity. Designed for mid to high-volume workflows, it is ideal for producing high-quality, full-bleed applications, including brochures, banners, and other specialty prints.
Key Features
🔹 Full Bleed Trimming: Efficiently trims applications on sheets up to 1300mm long, ideal for duplex printing on extended sheets.
🔹 One-Pass Operation: Simultaneously slit, cut, crease, perforate, and fold to streamline production workflows.
🔹 High-Speed Output: Processes up to 6,000 A4 sheets per hour, maintaining consistency and quality at high speeds.

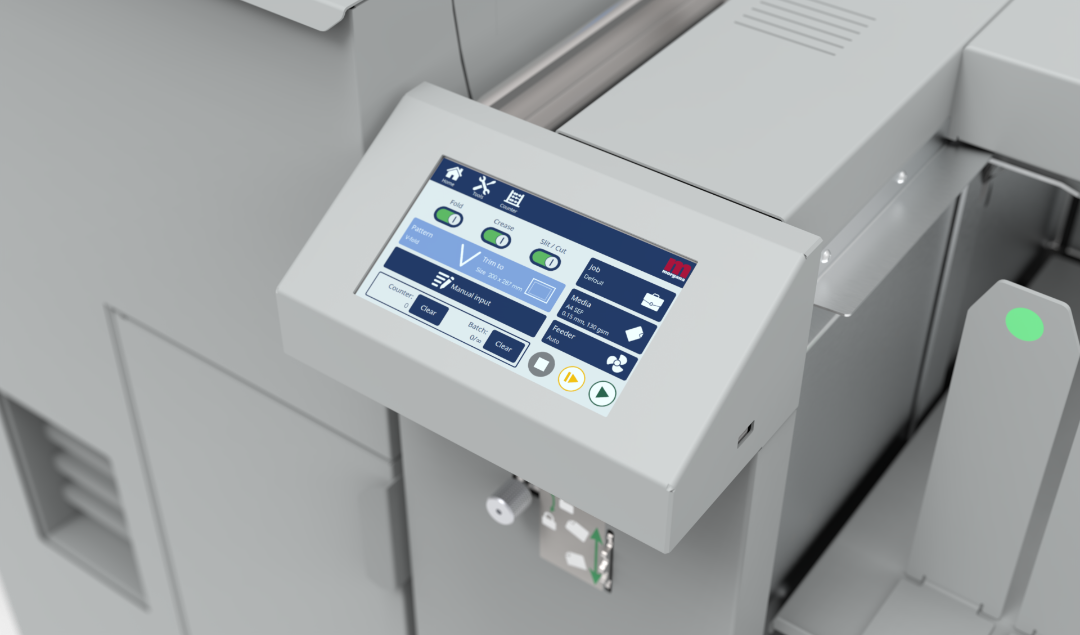

🔹 User-Friendly Automation: Automated setup with a color touch screen interface, providing quick access to crease and fold patterns, as well as on-the-fly adjustments.
🔹 Versatile Folding Options: Dual folding knives ensure precise folds, supporting a wide variety of applications such as 3-panel brochures and landscape booklets.
🔹 Dynamic Creasing Technology: Includes one DynaCreaser and supports up to two crease tools, with optional static crease tools for additional flexibility.
🔹 Inline Perforation & Slitting: Comes with standard inline perforation and optional slitting/scoring capabilities with up to five wheels, enabling customized output.
🔹 Enhanced Feeding System: Vacuum belt top feeding with Advanced Process Control (APC) for consistent media handling, supporting weights from 80 to 400gsm. Optional table extension allows feeding of extra-long sheets.

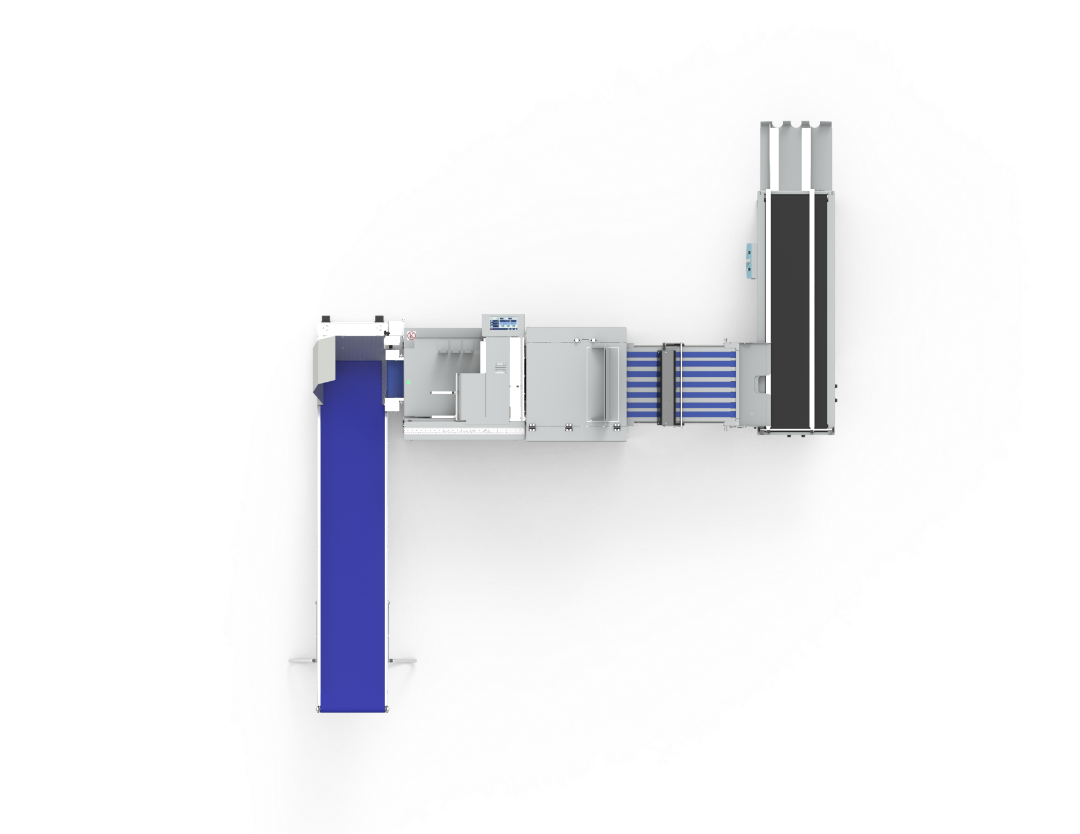

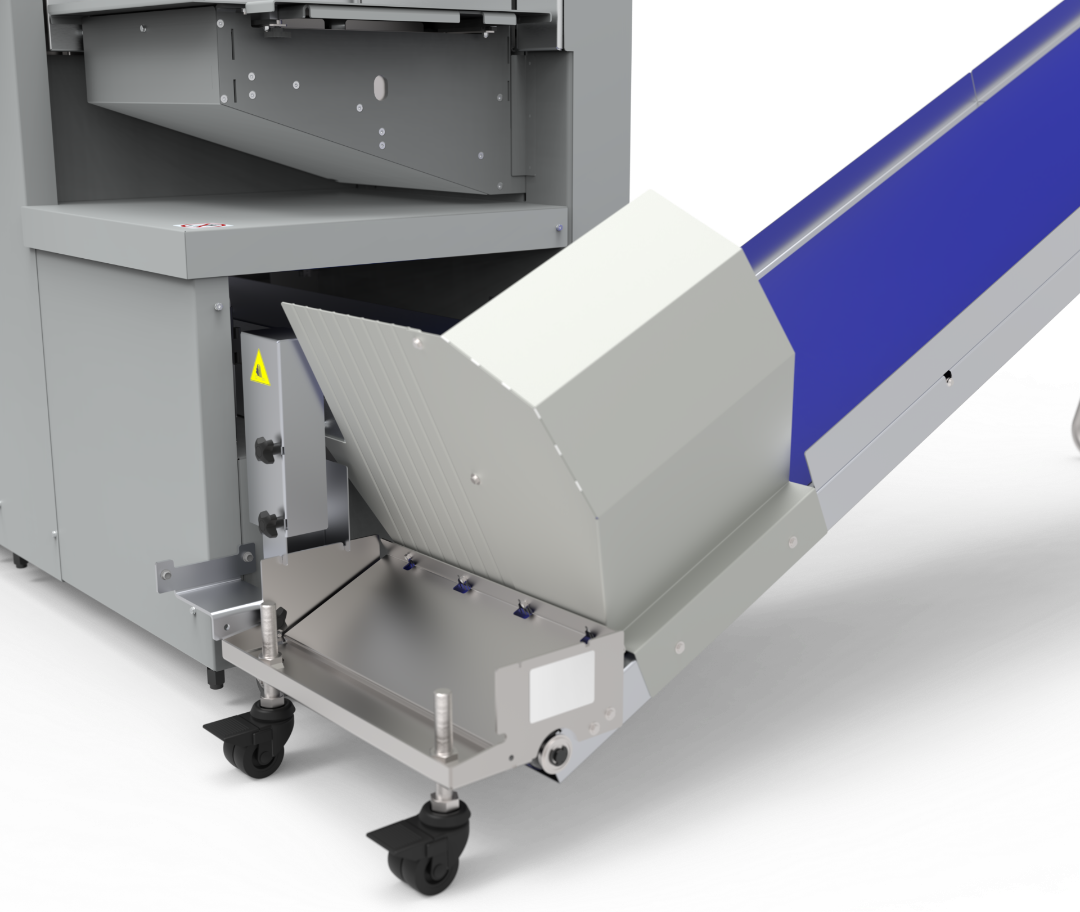

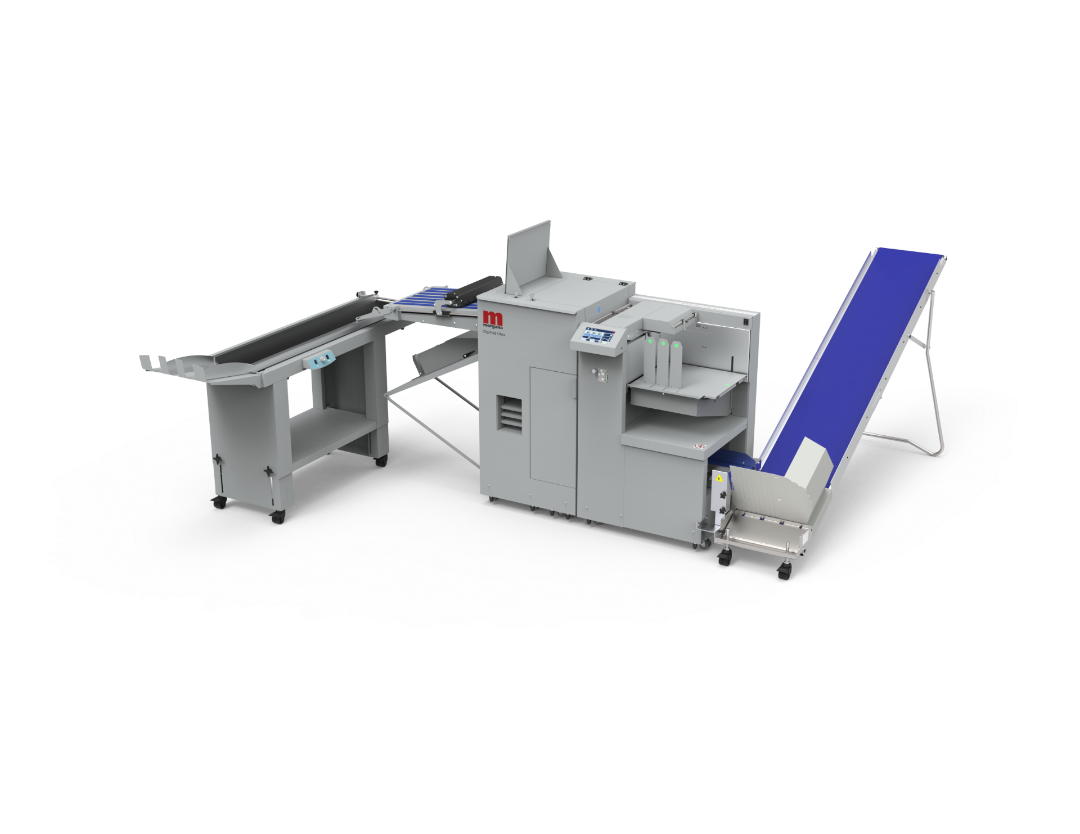

🔹 Scalable Workflow Attachments: Compatible with the BST-4000 Belt Stacker for enhanced stacking and the Trim Waste Conveyor Belt for optimized waste handling in high-production environments.
Specifications
Specification | Details |
---|---|
Maximum Sheet Size | 385 x 700mm (385 x 1300mm with table extension) |
Minimum Sheet Size | 93 x 210mm |
Maximum Number of Creases | 30 (with optional static crease tool) |
Creasing Options | DynaCrease (standard); optional static creasing tools |
Media Range | 0.1 - 0.4mm (approximately 80gsm - 400gsm) |
Maximum Productivity | 6,000 sheets/hour (A4 half fold, one crease only) |
Feed Technology | Vacuum belt top feeding with APC |
Inline Perforation | Standard |
Inline Scoring & Slitting | Optional, up to 5 wheels |
Cross Perforation | Optional (requires static crease kit) |
Load Capacity | 200mm |
Machine Dimensions | Contact manufacturer for detailed dimensions |
Applications
- 6 or 8-Panel Brochures: Achieve professional-quality folds and creases for marketing materials.
- A4 Landscape Formats: Create long-format applications with full-bleed trimming.
- Custom Folded Materials: Handle specialty projects, including booklets, banners, and custom-sized media.
The Morgana DigiFold Ultra is the perfect solution for high-volume digital and offset environments, reducing manual labor while ensuring consistent, high-quality output.
