Morgana SFT SquareFold Trim Module
Finish with the Morgana SFT SquareFold Trim Module. Combines square folding and trimming for professional, full-bleed booklets with a perfect-bound look.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

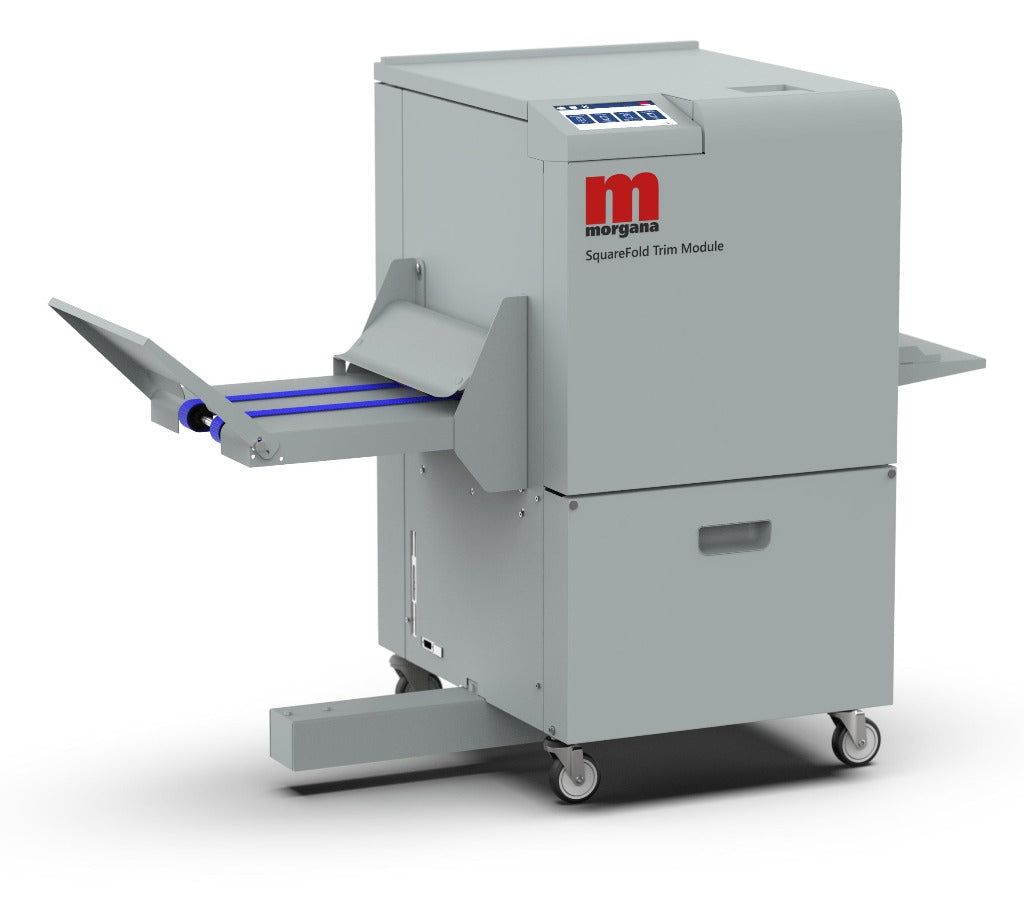

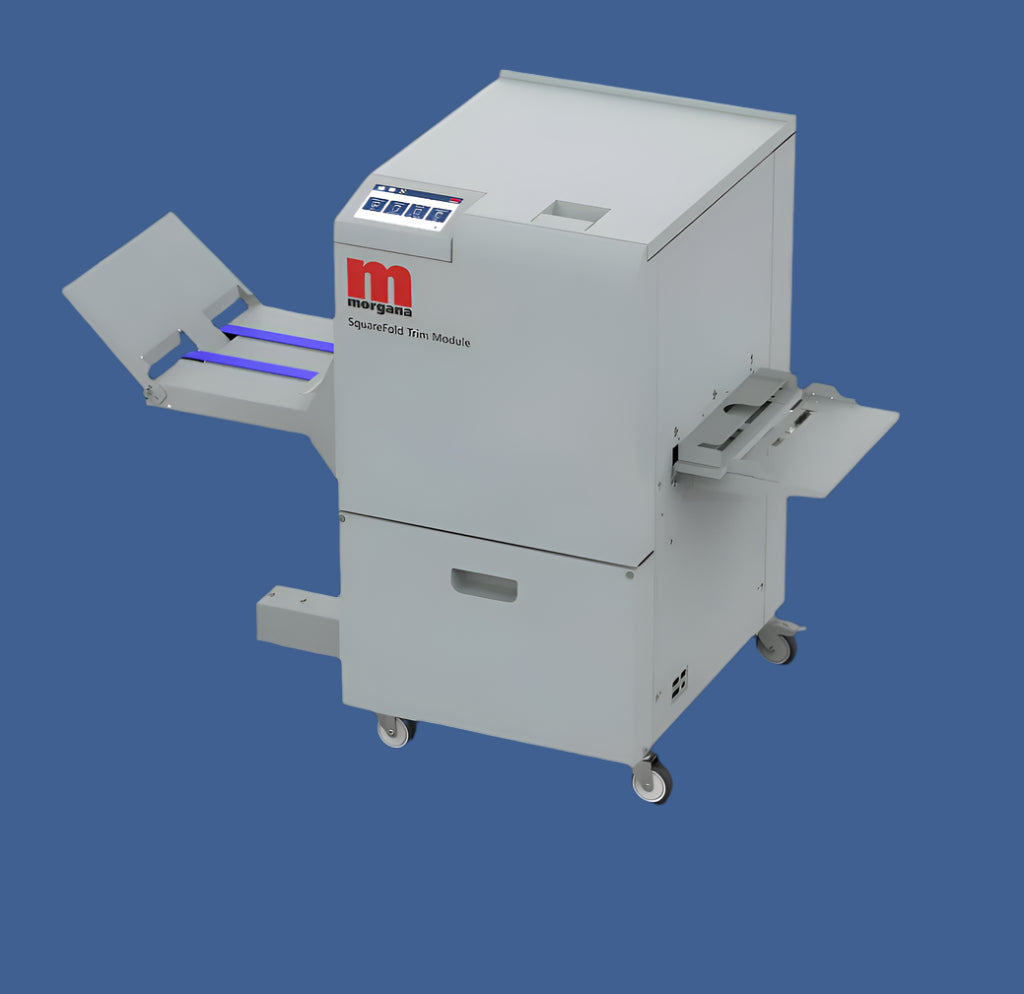

The Morgana SFT SquareFold Trim Module is an innovative finishing solution that combines booklet square folding and trimming into a single, compact unit. Designed for Corporate Reprographics Departments (CRDs), in-plants, and commercial print shops, this module enhances booklet presentation with a sharp squarefold spine and precise front-edge trimming, providing a perfect-bound appearance at a fraction of the cost.
Key Features
🔷 Dual Functionality – Square folds and trims in a single pass, streamlining post-print finishing.
🔷 Operator-Assisted Three-Side Trimming – Ideal for short-run jobs, allowing full-bleed booklets without access to a guillotine.
🔷 Wide Application Range – Supports Junior Legal (5” x 8”) to Letter Landscape booklets and up to 12.6” x 12.2” in size.
🔷 Heavy-Duty SquareFold Mechanism – Produces perfectly formed book spines, making booklets easier to stack and more durable.

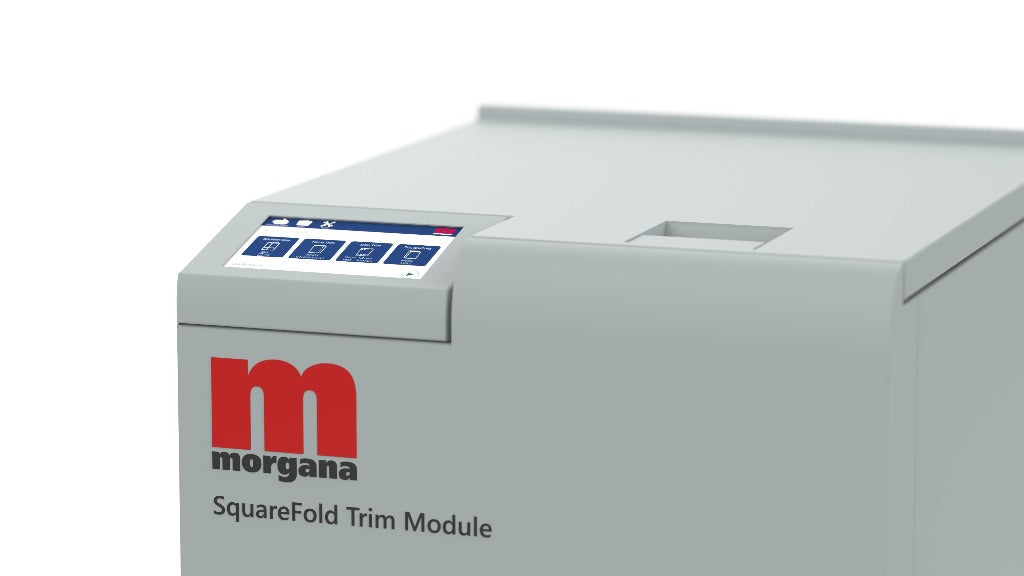

🔷 User-Friendly Interface – Touchscreen operation simplifies setup and use, ensuring consistent results across all operators.
🔷 Seamless Integration – Works standalone or nearline with an optional conveyor attachment for automated workflow.
Technical Specifications
| Specification | Value |
|---|---|
| Paper Weight (Min) | 17 lb Bond |
| Paper Weight (Max) | 130 lb Cover |
| Sheet Count (Min) | 1 folded sheet |
| Sheet Count (Max) | 50 stapled & folded sheets (25 sheets using side trimmer) |
| Fed Book Size (Min) | 5.85” x 4.14” |
| Fed Book Size (Max) | 12.6” x 12.2” |
| Finished Book Size (Min) | 5.85” x 3.93” |
| Finished Book Size (Max) | 12.6” x 12.2” (bypass), 12.5” x 12.16” (trimming all sides) |
| Face Trimming (Min) | 0.039” |
| Face Trimming (Max) | 8.26” |
| Side Trimming (Min) | 0.039” per side |
| Side Trimming (Max) | 0.94” per side |
| Duty Cycle | Average 20,000 booklets/month |
| Optional Adjustable Conveyor Attachment Dimensions | W: 31.5”, D: 18”, H: 25” |
| SquareFold Trim Module Footprint | W: 55.7”, D: 27.6” |
Some customers may not have the resources or time to use a guillotine for short run jobs. In such cases, the SFT module offers a solution by processing booklets with bleed trimming on a book-by-book basis with the help of an operator. This feature also allows for full bleed booklets, making it a valuable option for small CRD's or office installations.
Our SquareFold Trim Module includes the heavy-duty module found in our larger Booklet Making Systems, allowing for perfectly formed spines on booklets made from various paper stocks and sizes. This feature also improves stackability. Experience the professional and cost-effective appearance of a Perfect Bound book.
Optimized Applications
📚 Manuals & Reports – Creates SquareFold booklets for business and corporate presentations.
📖 Marketing & Magazines – Ideal for high-end print brochures, catalogs, and magazines.
🖨 Print-on-Demand – Enhances short-run booklet production with a professional finish.
📦 Educational Materials – Perfect for training guides, academic journals, and course books.
