Morgana

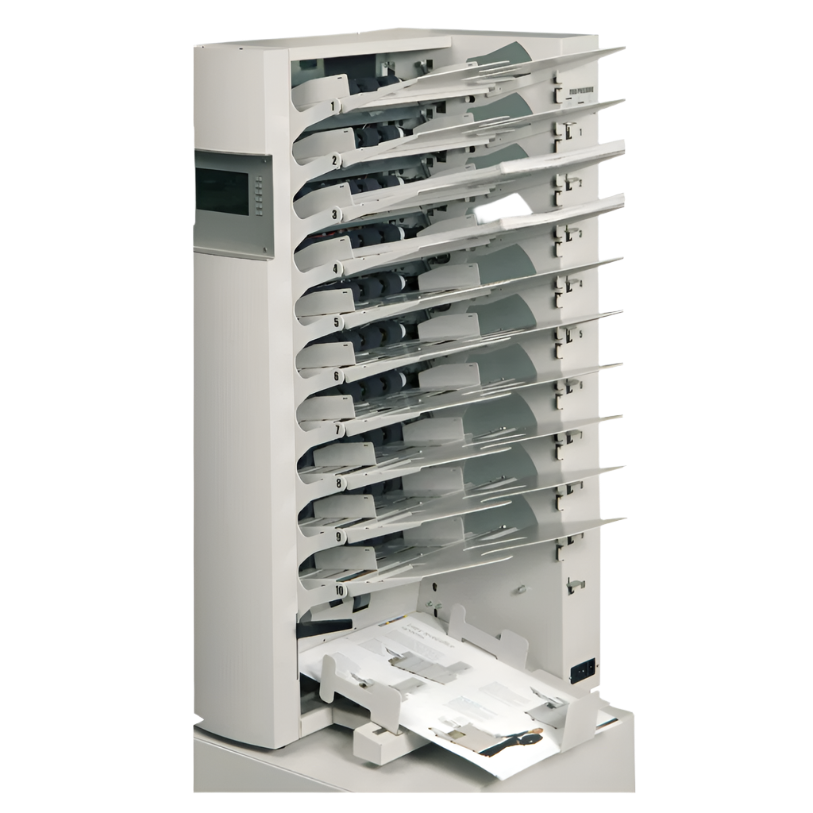

Morgana 510 Feeder/Collator

Morgana 510 Feeder/Collator

Item Number: M510F

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

The Morgana 510 Feeder/Collator series is a high-capacity, user-friendly system designed for both digital and litho printed applications. Featuring a modular 10-station bin tower with center registration, it efficiently handles feeding and collating for a wide range of finishing tasks. The 510 series integrates seamlessly with Morgana booklet makers for streamlined production.

Models Available

  • AC 510 Collator – Air suction feed collator for standalone or offline applications. Ideal for high-speed collation of sheets into finished sets.

  • AC 510 Collator (Inline Ready) – The AC 510 upgraded with feeder controls and hardware for integration into Morgana booklet makers or other inline finishing systems.

  • ACF 510 Feeder/Collator – Combines collating capability with integrated feeder functionality and air separation for handling static-prone stocks. Ready for offline or inline use.

  • ACF 510 Feeder/Collator (Inline Ready) – ACF 510 equipped with the base to connect seamlessly into Morgana booklet makers or inline finishing equipment.

Key Features

  • High-speed collation up to 4,000 sets per hour

  • Fast feeding up to 10,000 sheets per hour (ACF 510)

  • Air separation for smoother handling of static-prone stock (AC and ACF models)

  • Large LCD control panel with memory recall for frequent jobs

  • Error detection for double feed, misfeed, jams, empty bins, and full stackers

  • Compact 10-station bin tower with center registration

  • Versatile paper handling for various sizes and weights

  • Offset or straight stacking for organized output

  • Seamless integration with Morgana BM61, BM200e, BM2000S, BM350, and BM500 booklet makers

Technical Specifications

Specification Details
Maximum Sheet Size 12.6 x 18 inches (320 x 457 mm)
Minimum Sheet Size 4.75 x 8.25 inches (120 x 210 mm)
Collating Speed Up to 4,000 sets per hour
Feeding Speed Up to 10,000 sheets per hour (ACF 510)
Bin Capacity 1.102 inches (28 mm)
Paper Weight Range 14 lb bond to 67 lb bond (50 gsm to 250 gsm)
Air Separation Included on AC and ACF models
Error Detection Double feed, misfeed, empty bin, paper jam, stacker full
Receiving Tray Offset or straight stacking
Control Panel Large LCD display with memory recall
Dimensions (H x W x D) 75.8 x 23.6 x 27.6 inches (1925 x 600 x 700 mm)
Weight 238 lbs (150 kg)

Benefits

  • High productivity for collating and feeding

  • Ideal for both digital and litho printed work

  • User-friendly operation with programmable memory

  • Air separation improves reliability on static-prone stock

  • Integrates seamlessly with Morgana booklet makers for full finishing solutions

Ideal Applications

  • Digital printing – Feeds and collates pre-collated digital prints

  • Litho printing – Handles traditional litho print collation

  • Booklet making – Integrates with Morgana booklet makers for automated finishing

Software Features

  • Automated job setup with memory recall

  • Real-time error monitoring and alerts

  • Batch and count management for high-volume production
