ColorCut SC6500

ColorCut SC6500

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

View full details

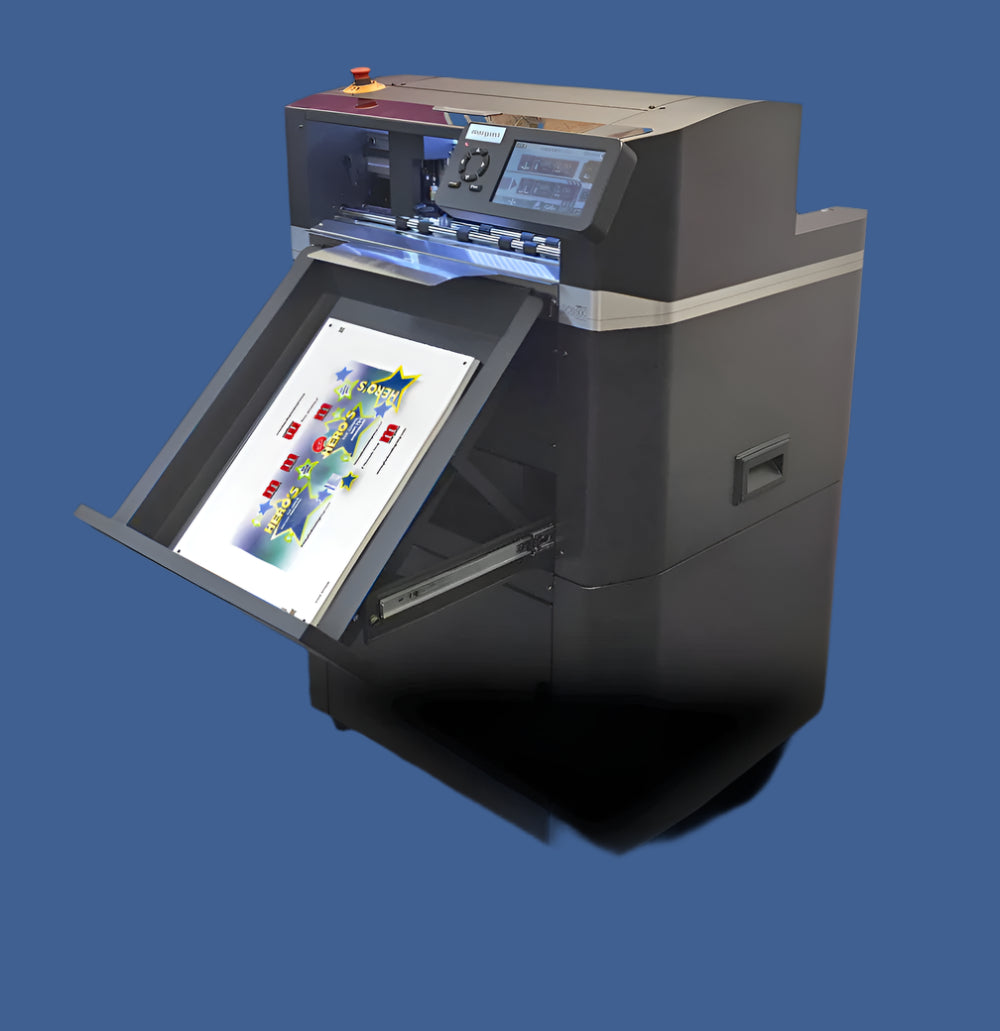

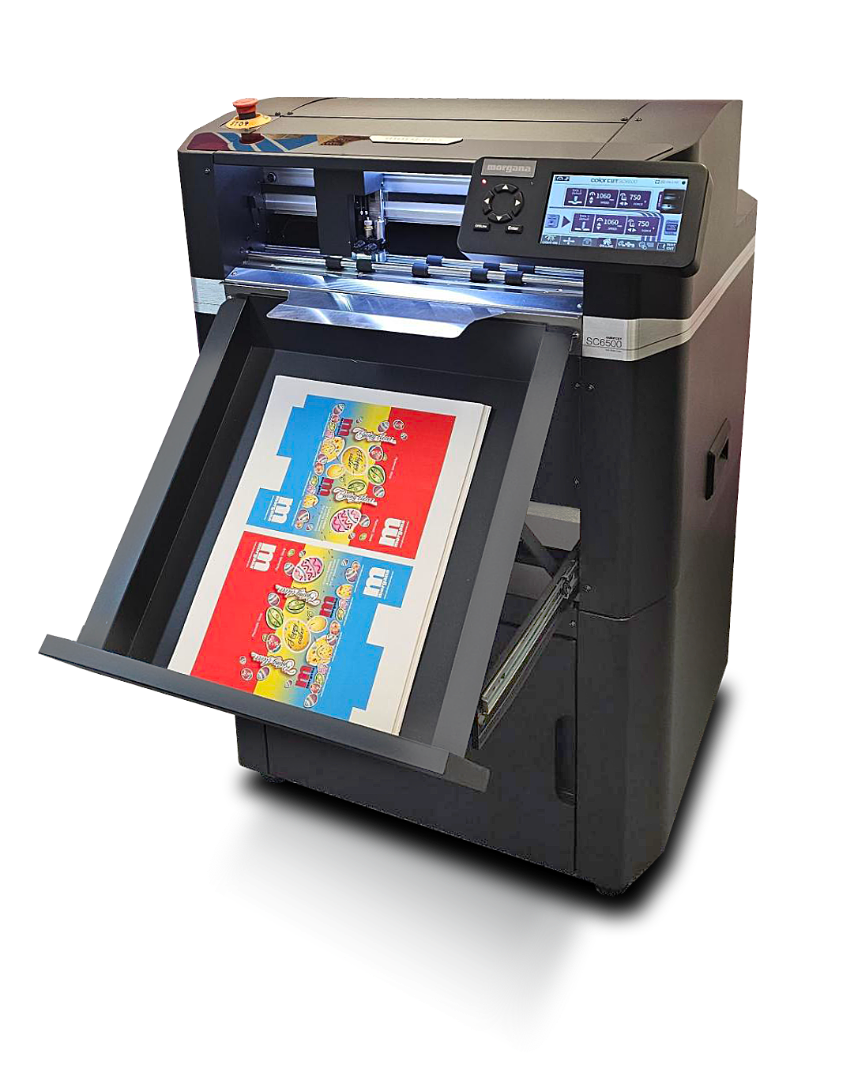

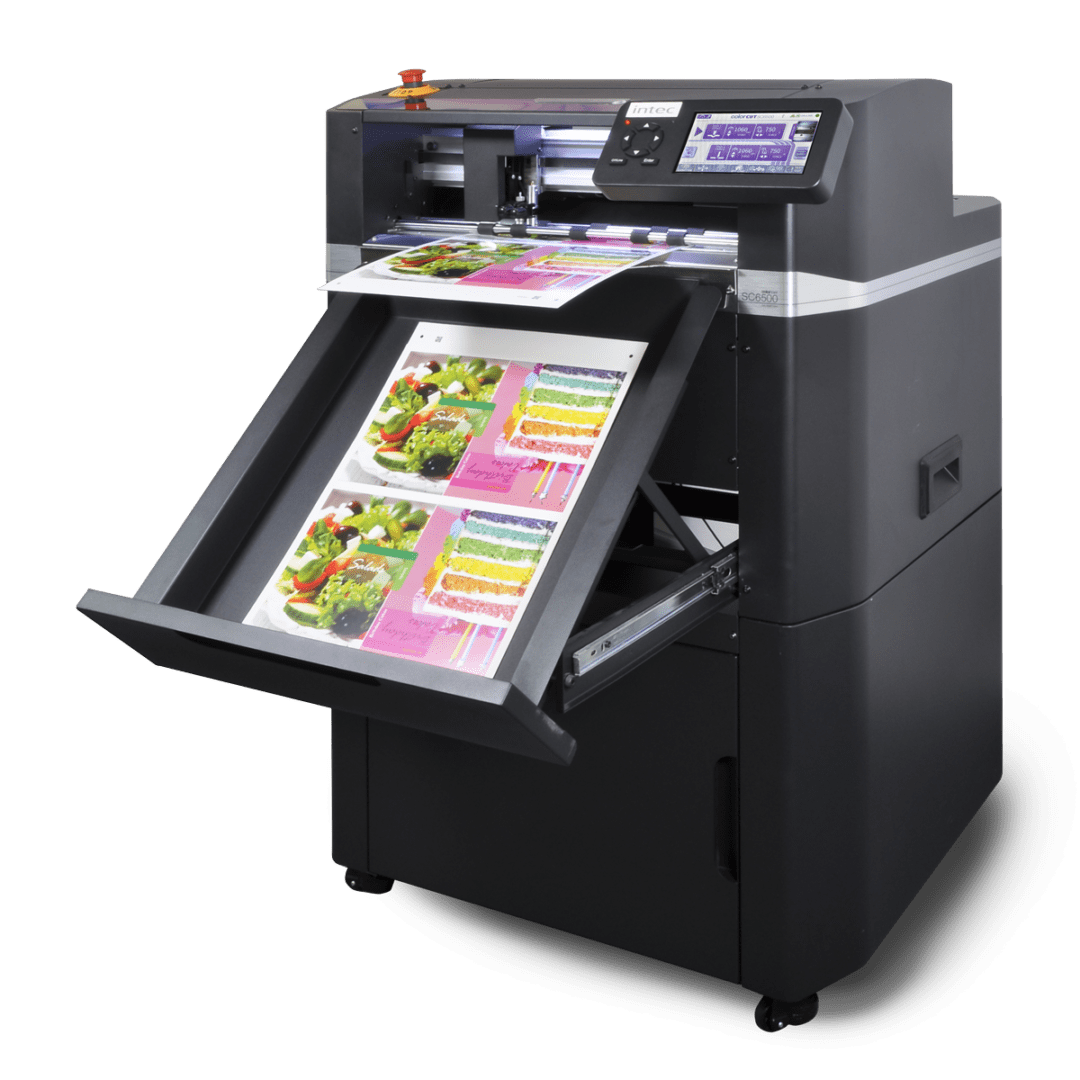

The ColorCut SC6500 is an advanced automated sheet-fed digital die-cutter designed for high-speed cutting and creasing of lightweight card, packaging, POS items, and kiss-cut sheet labels. Combining precision flatbed cutting and creasing with automatic sheet-fed functionality, this compact and mobile device is one of the most energy-efficient solutions in its class, consuming under 100W of power. The 8th-generation Vision3 CCD camera ensures seamless, uninterrupted operation by reading and retrieving cut files on the fly for mixed job processing. Its dual 'Grip and Drive' feed system allows for cutting closer to media edges, while the innovative cutting strip supports cut-through, creasing, and kiss-cutting with minimal SmartTags for clean, manageable stacks.

Key Features

🔹 Precision Flatbed Cutting and Creasing – Ideal for lightweight card, packaging, POS, and kiss-cut sheet labels
🔹 Compact and Mobile Design – Ergonomic and energy-efficient, consuming under 100W of power
🔹 Advanced Vision3 CCD Camera – Enables automatic mixed job processing and precise registration by reading QR codes and SmartMarks
🔹 Dual 'Grip and Drive' Feed System – Allows for cutting closer to media edges
🔹 Innovative Cutting Strip – Supports cut-through, creasing, and kiss-cutting with minimal SmartTags for clean stacks

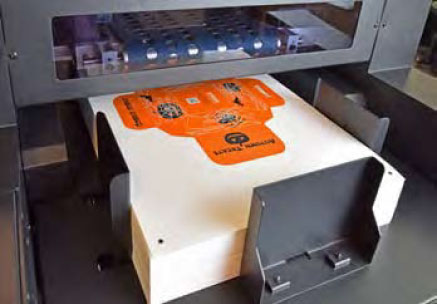

🔹 High-Capacity Auto Feeder – Handles up to 1,000 sheets with air blade separation and jog functionality for perfect sheet presentation

Technical Specifications

Specification Details
Media Handling A4 (210 x 297mm), A3 (297 x 420mm), SRA3 (330 x 485mm), A3+ (320 x 480mm), and custom sizes
Custom Sized Media Min-Max Width: 180mm – 340mm / Min-Max Length: 279mm – 710mm
Max Media Thickness Up to 350 microns (0.35mm)

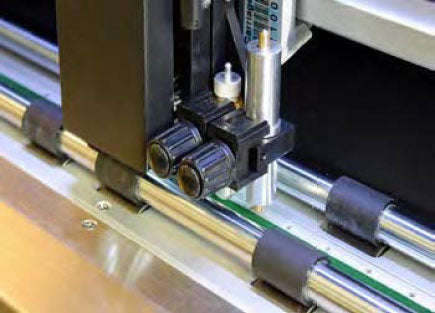

Cutting Control Dual tool functionality, with 4 tools supplied: Blade holder, dual creasing tool, and pen calibration tool
Cut and Crease Force Up to 750gf
Max Speed Up to 1060mm/sec
Job Recognition Advanced QR code technology for instant file recognition and registration
Registration System Vision3 - High-resolution CCD vision system for accurate cutting and creasing
Power Supply 100-240V 50/60Hz, 100W Avg. (320W peak)
Stand Included
Media Storage Included
Weight 136kg
Dimensions 820 x 1300 x 1230mm (in use)

Applications

📦 Custom Packaging – Create precise and attractive packaging with superb cutting and creasing
🛒 Point-of-Sale Materials – Produce high-quality POS displays with precision cutting
🏷️ Kiss-Cut Labels – Perfect for clean, high-detail label production
🎨 On-Demand Cutting – Ideal for print shops and manufacturers needing efficient, high-speed cutting and creasing

ColorCut Pro Software

✔ QR Code Job Retrieval – Instantly recognizes & loads job files
✔ Live Job Preview – Ensures precise cut alignment
✔ Adobe Illustrator & CorelDRAW Integration – Directly imports designs for seamless workflow efficiency

The Morgana ColorCut SC6500, powered by ColorCut Pro software, is a high-speed, energy-efficient solution for digital cutting and creasing. Its advanced features and user-friendly design make it an ideal choice for businesses looking to enhance their print finishing capabilities.
