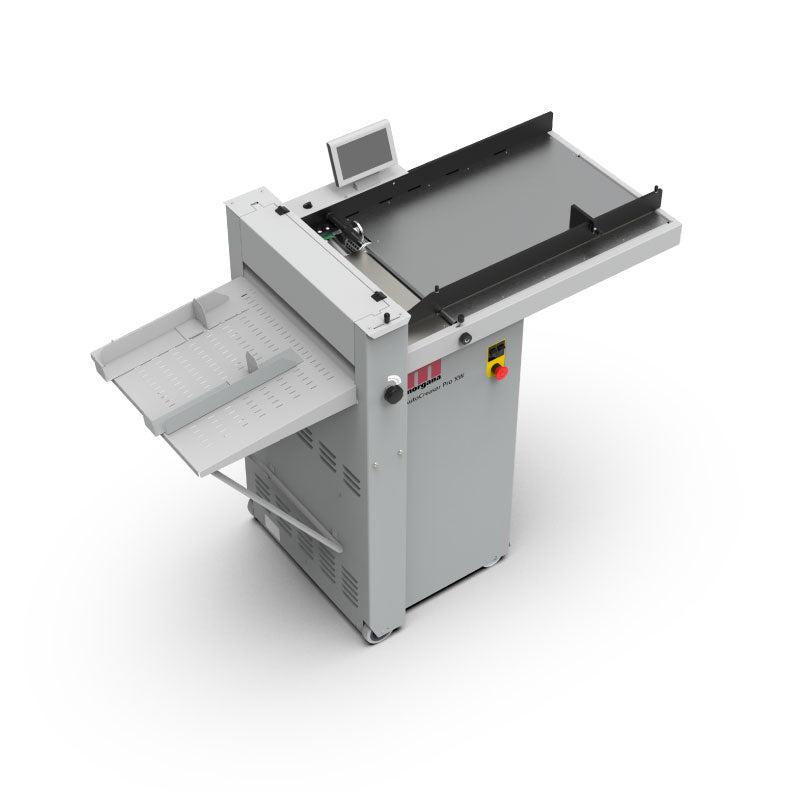

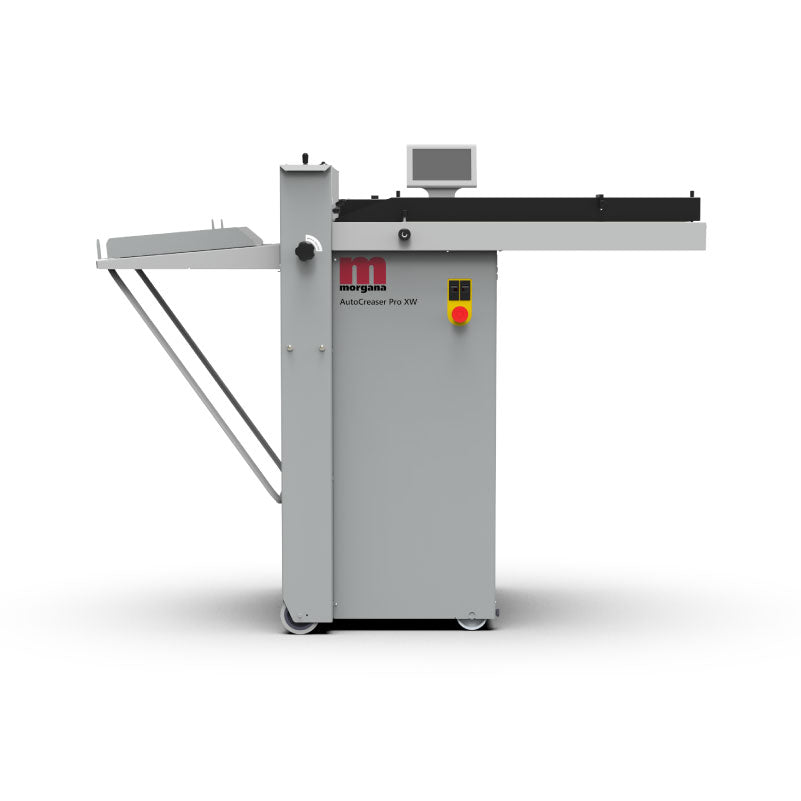

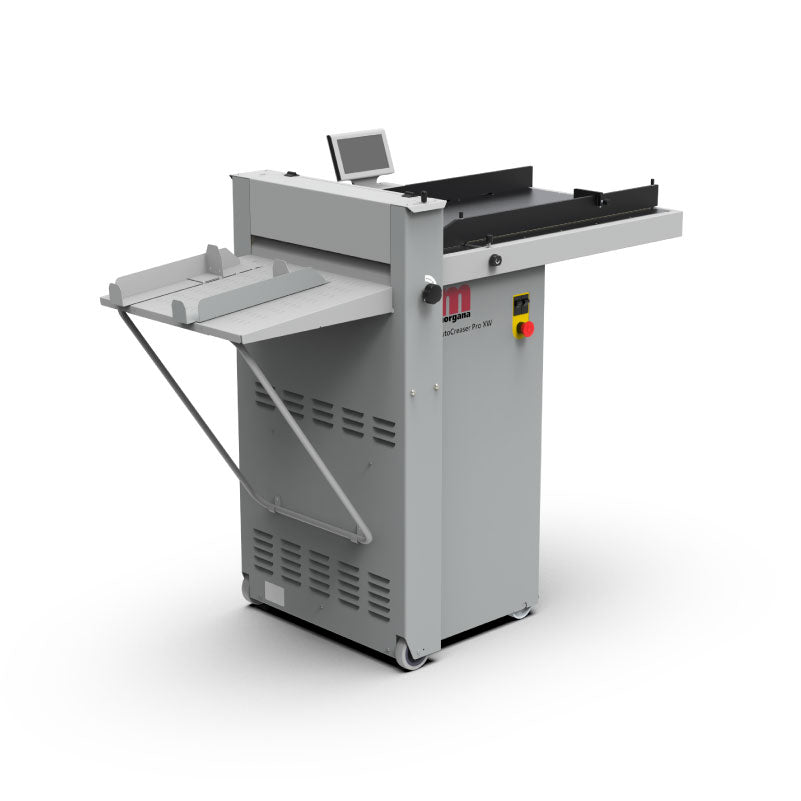

Morgana AutoCreaser Pro XW
The Morgana AutoCreaser Pro XW creases sheets up to 19.7" wide for crack-free digital folding. Dealer pricing, financing & service at Mid-State Litho.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

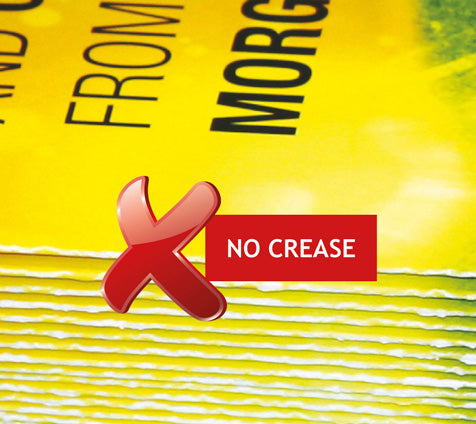

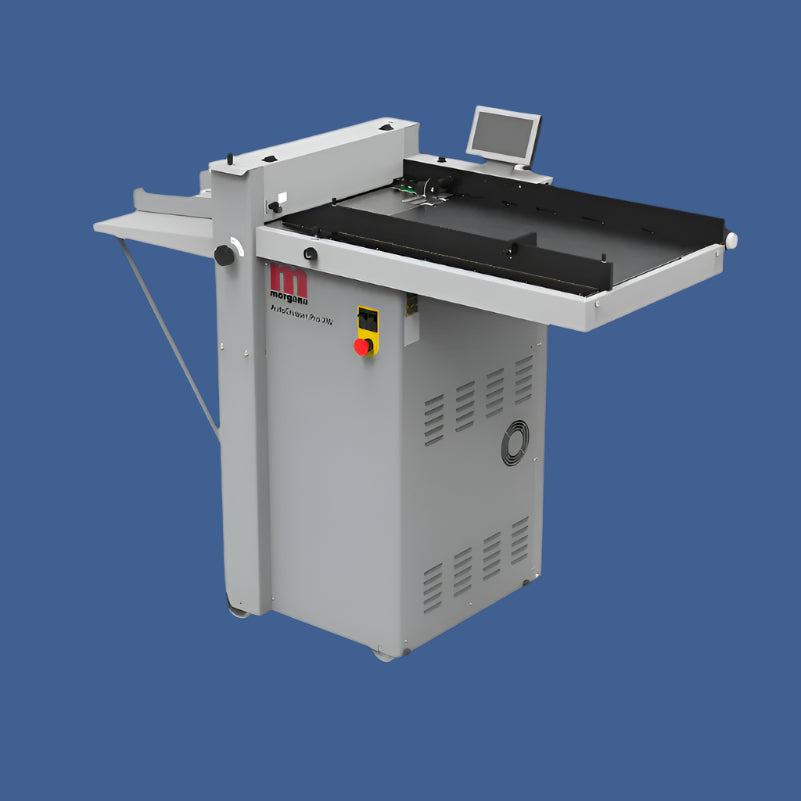

The Morgana AutoCreaser Pro XW is a high-speed digital creasing machine designed to eliminate cracking issues in digitally printed and conventionally printed materials. Engineered for high productivity, it delivers precise creases on laminated, cross-grained, and heavy stock, making it an essential tool for print shops, in-house production facilities, and commercial printers.
Key Features

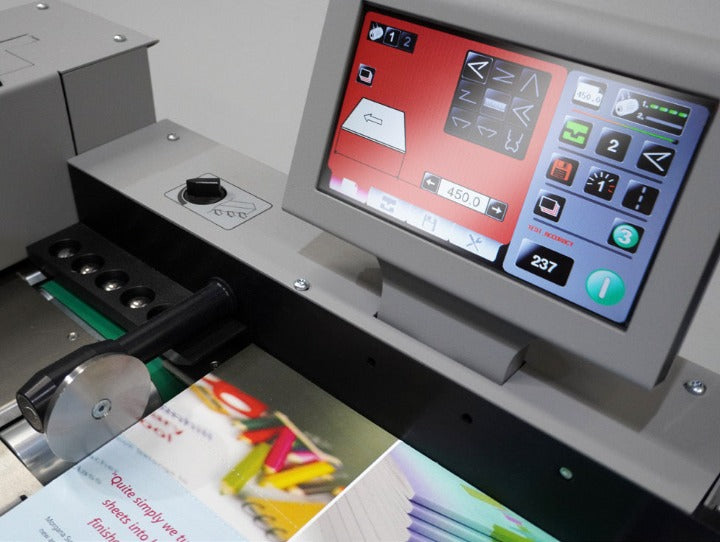

🔹 7” SmartScreen Touch Interface – Intuitive and easy-to-use touchscreen controls all main functions
🔹 Large Sheet Size – Handles up to 27.5” x 19.7” (700mm x 500mm), accommodating large-format jobs
🔹 High-Speed Production – Processes up to 8,500 A4 sheets per hour with a single crease
🔹 Versatile Creasing – Up to 16 creases per sheet, with adjustable depth and position

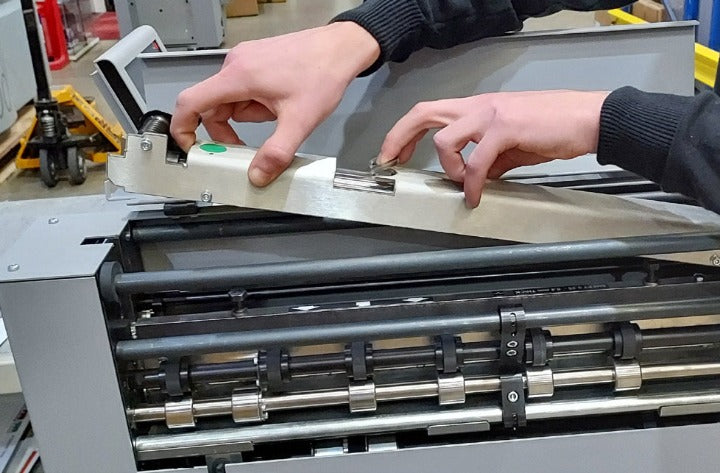

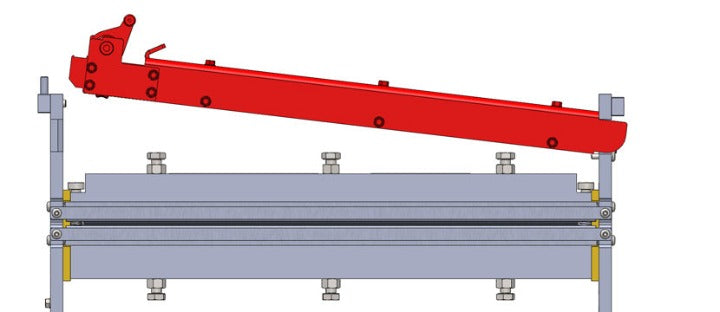

🔹 EasyBlade System – Quick, tool-free blade removal and replacement, reducing downtime
🔹 Unlimited Memory Storage – Saves an unlimited number of named job programs for easy recall

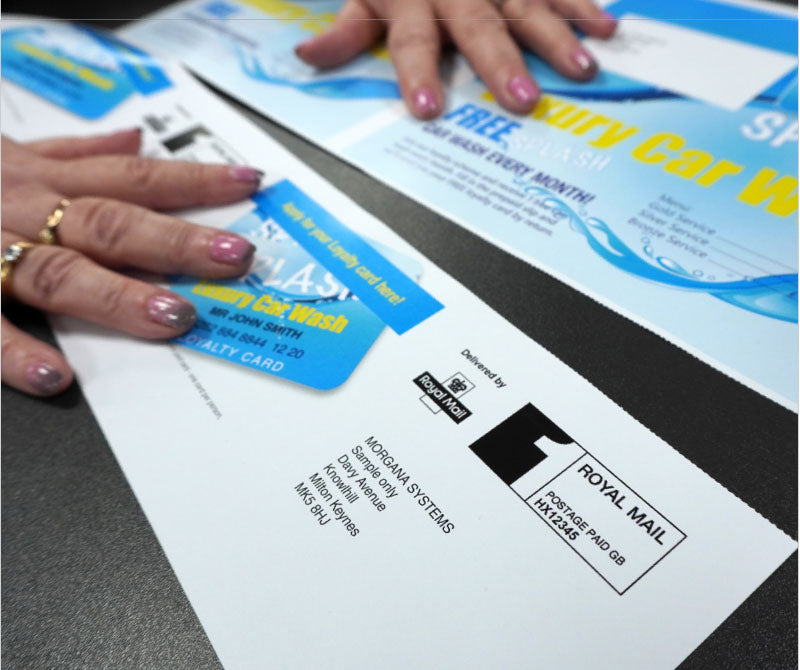

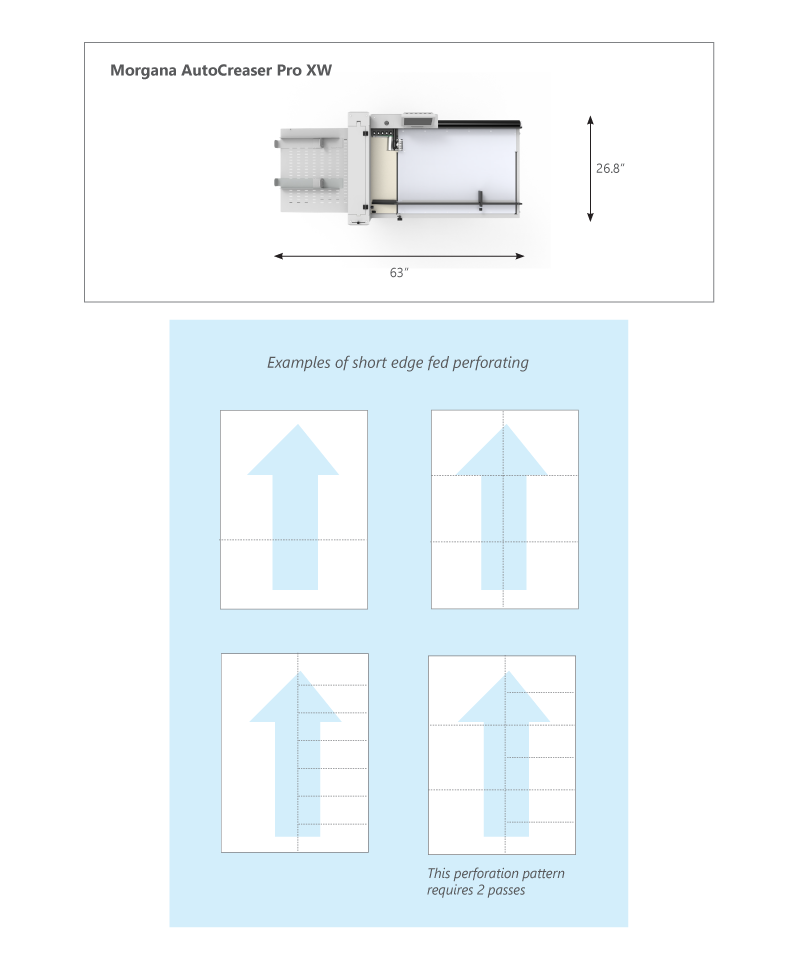

🔹 Full Cross Perforation – Optional feature for tear-off vouchers, tickets, and perforated applications
Technical Specifications
| Specification | Details |
|---|---|
| Max. Sheet Size | 27.5” x 19.7” (700mm x 500mm) |
| Min. Sheet Size | 8.5” x 5.5” (210mm x 140mm) |
| Max. Paper Thickness | 0.0157” (0.4mm) |
| Max. Number of Creases | 16 |
| Min. Distance Between Creases | 0.004” (0.1mm) |
| Max. No. of Stored Programs | Unlimited |
| Min. Crease Distance from Leading Edge | 0.1” (2.5mm) |
| Speed per Hour (A4 Half-Fold) | 8,500 sheets |
| Speed per Hour (A5 Half-Fold) | 11,000 sheets |
| Feeding System | Bottom suction feed |
| Dimensions (L x H x W) | 59” x 48.2” x 26.8” (1500mm x 1224mm x 682mm) |
| Weight | 365.9lb (166kg) |
| Power Requirement | 1 phase 230v 50/60Hz |
| Sound Power Level | 78 dB(A) |
Applications
📄 Digital Print Finishing – Eliminates cracking on digitally printed materials for a professional finish
🎨 Conventional Print Finishing – Ensures perfect creasing for laminated, coated, or textured stock
🎟️ Perforated Applications – Ideal for tickets, tear-off vouchers, and coupon sheets
Software Compatibility
✔ Automated Crease Positioning – Reads job files and automatically positions creases
✔ Job Memory Recall – Saves unlimited programs for fast repeat job setup
✔ EasyBlade System – No tools needed for quick blade swaps, reducing downtime
