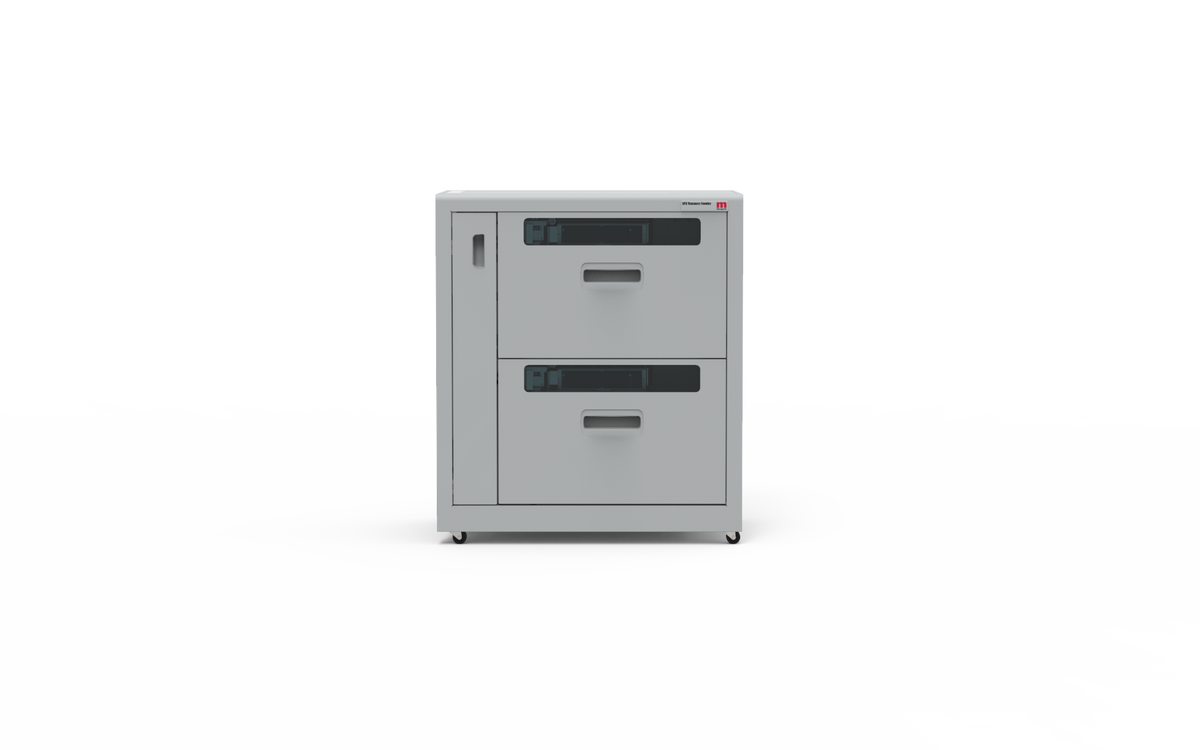

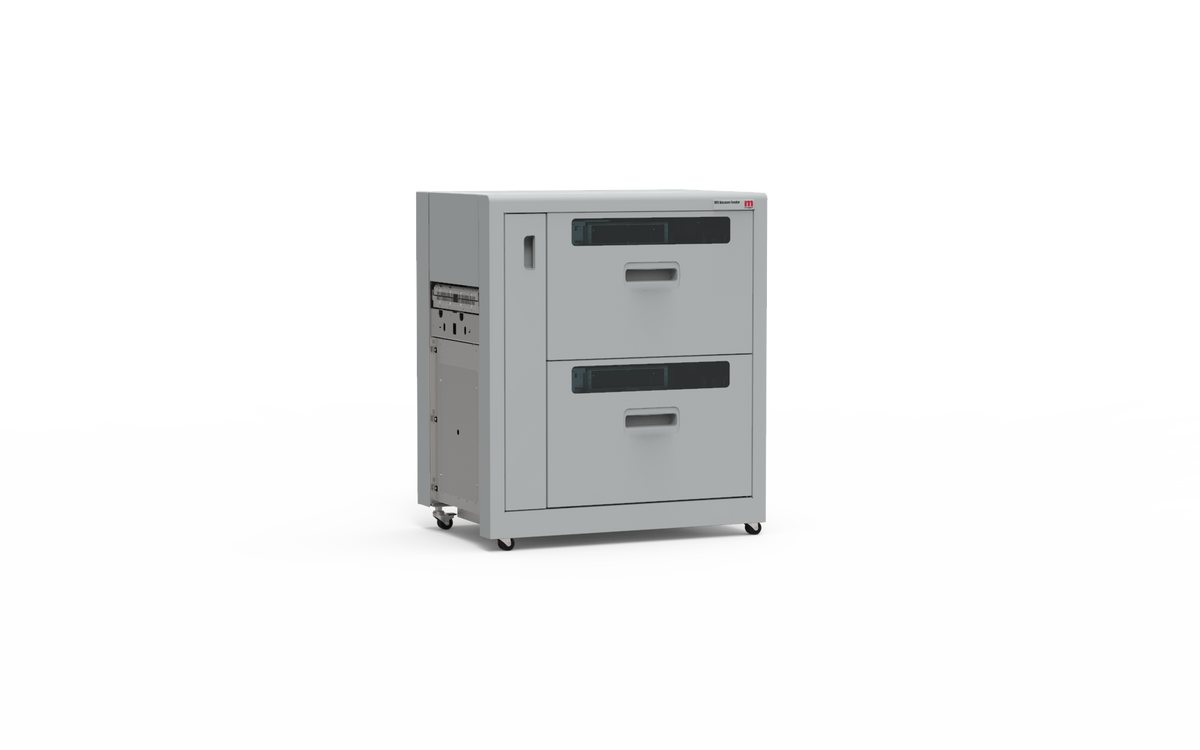

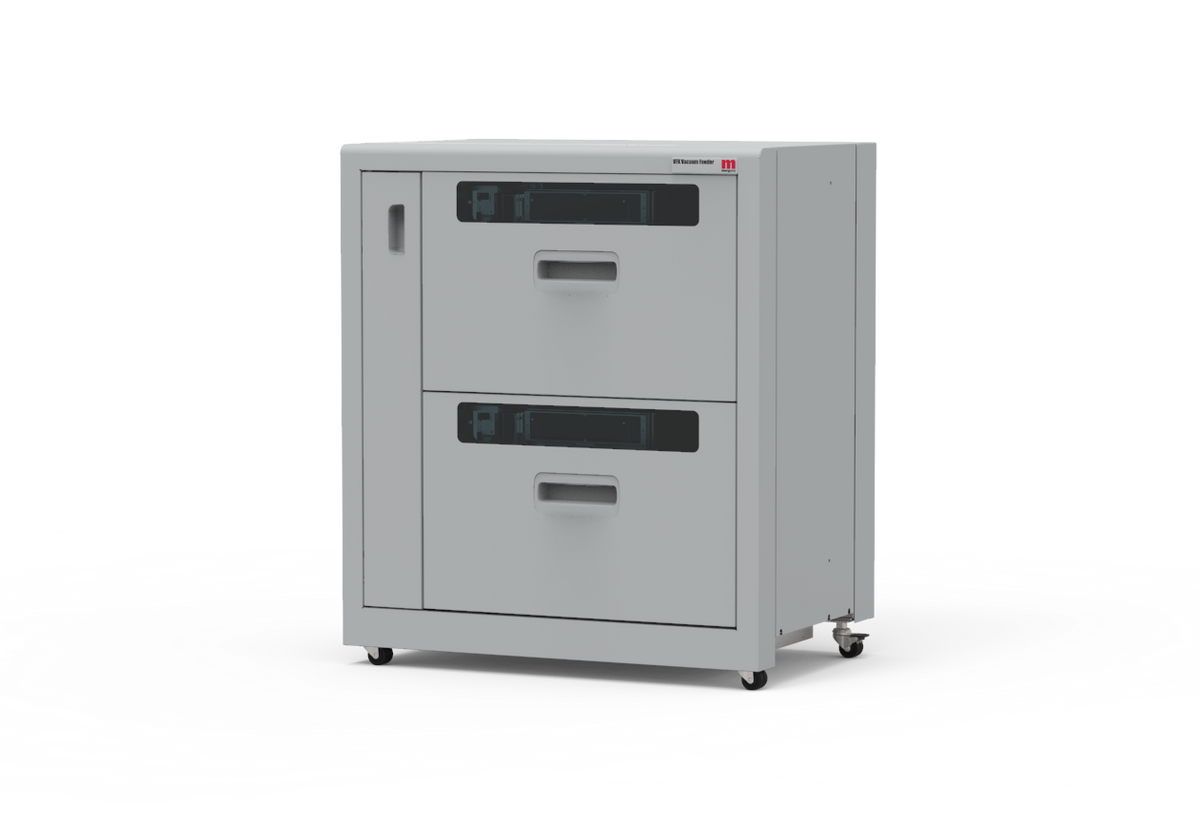

Morgana VFX Vacuum Feeder
VFX Vacuum Feeder – 5400-sheet capacity, vacuum feed tech, automatic tray switching, and double sheet detection for uninterrupted high-speed media feeding.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
The Morgana VFX Vacuum Feeder delivers high-speed, automated feeding for a variety of paper types and weights. With dual high-capacity trays, adaptive vacuum feed technology, and automatic tray switching, it maximizes productivity while ensuring consistent and accurate media handling.
Key Features
🔹 5400-Sheet Capacity – Two vacuum paper trays hold up to 2700 sheets each (80 gsm).
🔹 Vacuum Feed Technology – Ensures smooth, jam-free operation across different media types.
🔹 Adaptive Fan Control – Automatically adjusts air flow to match varying stock sizes and weights.
🔹 Double Sheet Detection – Advanced infrared and ultrasonic sensors prevent misfeeds.
🔹 Automatic Tray Switching – Enables uninterrupted operation by reloading trays on the fly.
🔹 Optimized for Curled and Thin Media – Improved performance for challenging stock.
🔹 Optional 2D Barcode Reader – Enhances set integrity and supports variable data jobs.
Specifications
| Specification | Details |
|---|---|
| Speed | Up to 15,000 sheets per hour |
| Load Capacity | 5400 sheets (2700 per tray) |
| Sheet Size | Min: 120 x 210 mm (4.72 x 8.26”), Max: 355 x 660 mm (13.8 x 26”) |
| Paper Weight | 16 lb bond to 130 lb cover (64 gsm to 350 gsm) |
| Dimensions (L x W x H) | 1200 x 730 x 1200 mm (47.2 x 28.7 x 47.2”) |
| Weight | 220 kg (485 lbs) |
| Power Consumption | 650W |
| Power Source | 100-240V +6 -10% (50-60Hz) |
| Paper Separation | Vacuum |
Benefits
- Maximize Productivity – Achieve up to 15,000 sheets per hour with uninterrupted feeding.
- Versatile Media Handling – Supports a wide range of stock types, from lightweight to heavy cover sheets.
- Unattended Operation – Automatic tray switching allows continuous feeding without manual intervention.
- Consistent, Reliable Feeding – Advanced vacuum technology and double sheet detection prevent errors.
- Enhanced Workflow Control – Optional barcode reader kit ensures precise page sequencing for variable jobs.
Ideal Applications
📄 Digital Print Production – Handles mixed digital print media with precision.
🖨️ Litho Print Finishing – Ensures smooth feeding of offset-printed stock.
📚 Booklet Making – Seamlessly integrates with booklet production systems.
🔢 Variable Data Printing – Barcode support for personalized, multi-page jobs.
Software Features
✔ Automated Job Setup – Optimized feed settings based on stock type.
✔ Real-Time Feed Monitoring – Detects misfeeds and ensures smooth operation.
✔ Set Integrity Control – Barcode scanning option for variable document jobs.
