Perfecta Automatic Positioning System BDG
Perfecta Automatic Positioning System BDG
Item Number:
BDG-3-10
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

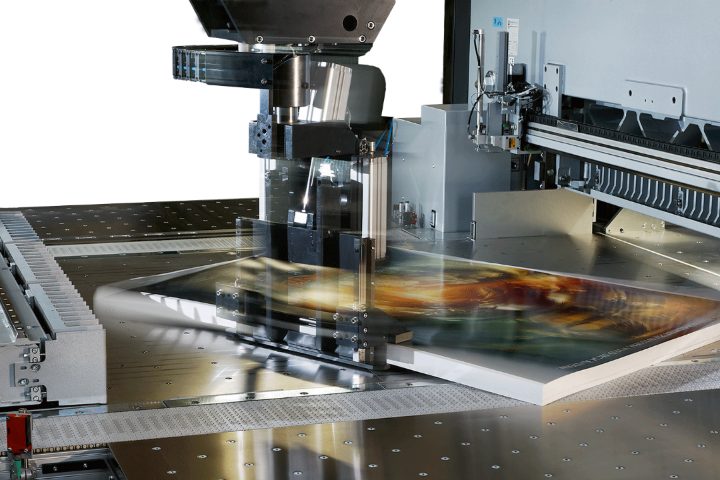

For automatic transport, turning, and positioning of layers on the rear table of a cutting system. The BDG is the core component for a fully- or semi-automatic cutting process.
A BDG 10 can pick up a lift up to 60” x 80.7” at the loading point, turn it 90º or 180º, or move it onto the table of an Automatic Unloader BA 10- MULTI.
| Model | Max. Format | Turning Capability |

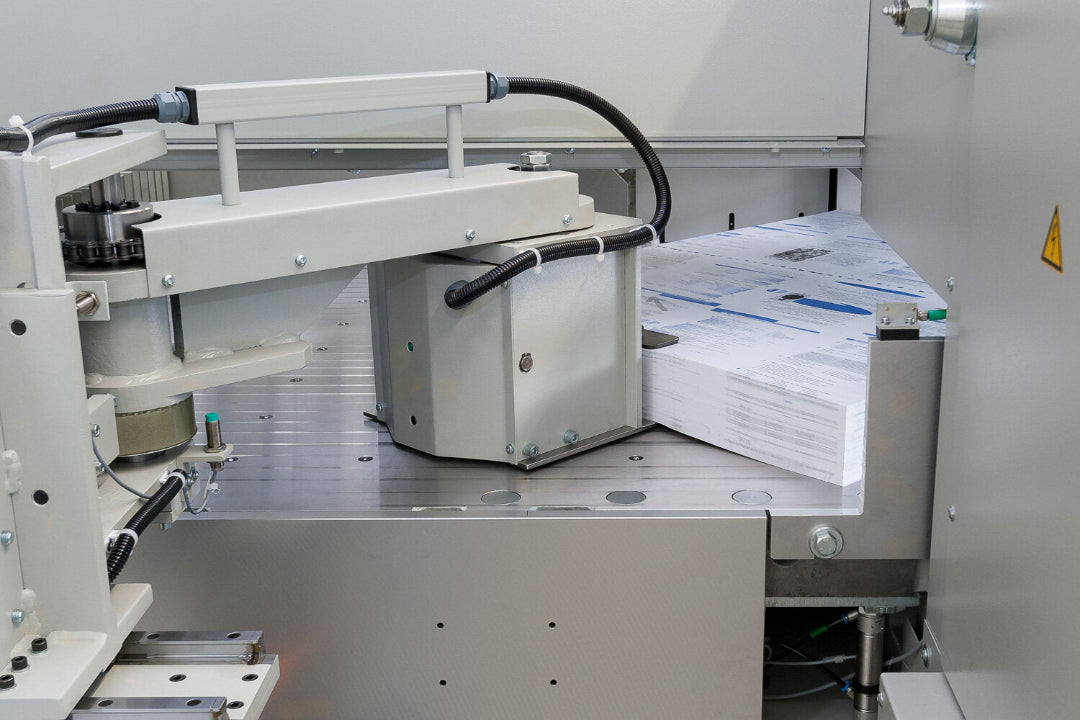

| BDG 3e | 30.3" x 42.1" / 770 x 1070 mm | 90º |
| BDG 3 | 30.3 " x 42.1 " / 770 x 1070 mm | 180º |
| BDG 7 | 49.2 " x 65 " / 1250 x 1650 mm | 180º |
| BDG 10 | 60 " x 80.7 " / 1525 x 2050 mm | 180º |
Features
- Portal design (except BDG 3e)
- Controlled via the cutting program
- Alignment pusher for layer alignment against the side guides
- Safety fence or safety light guards (depending on floor layout)
Options
- Front alignment system at the cutter front table for automatic 4-side cutting
- Retractable side guides for the cutter
- Stack lifting pins in the cutting table
- Module for automatic unloading via rear table of the cutter
- Service module for remote maintenance
