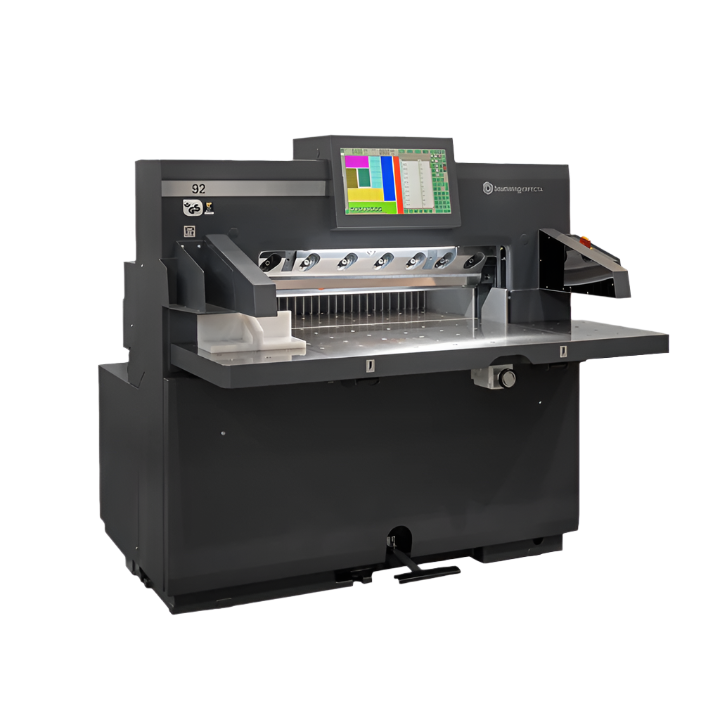

Perfecta BP 92 Paper Cutter (36" Width)
A 36" programmable guillotine paper cutter featuring a servo-driven backgauge, touchscreen controls, and CIP3/CIP4 compatibility for high-precision cutting.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Details & specifications
The Perfecta BP 92 is a high-precision 36" programmable paper cutter engineered for mid-volume commercial print and packaging environments. Featuring a servo-driven backgauge, hydraulic clamp, and an 18.5" touchscreen interface, the BP 92 delivers exceptional accuracy and efficiency. Its CIP3/CIP4 compatibility ensures seamless integration into automated workflows.
Key Features
đź”· 36.2" cutting width with 4.7" feed height
đź”· Slotless stainless steel cutting table with air bed
đź”· Gear-driven knife system with helical spur gears
đź”· Servo-controlled backgauge with digital position control
đź”· 18.5" touchscreen display for job management and automation
đź”· Hydraulic clamp with programmable pressure up to 6,745 lbs
đź”· Self-monitoring safety light curtain and two-hand cut controls
đź”· Built-in knife hoist with setting gauges and knife guard
đź”· Complete rear table guarding and overload protection device
đź”· CIP3/CIP4 ready for prepress integration
Specifications
| Specification | Details |
|---|---|
| Cutting Width | 36.2" / 920 mm |
| Max Feed Height | 4.7" / 120 mm |
| Useful Rear Table Length | 36.2" / 920 mm |
| Air Side Tables | 24.4" x 32.3" / 620 mm x 820 mm |
| Minimum Cut (w/o clamp plate) | 0.7" / 18 mm |
| Minimum Cut (with clamp plate) | 2.2" / 57 mm (optional 1.9" / 48 mm) |
| Clamping Force Range | 450 – 6,745 lbs / 2 – 30 kN |
| Backgauge Speed | Up to 11.8 inches per second |
| Knife Cycle Rate | Up to 50 cuts per minute |
| Main Drive Power | 4 HP |
| Electrical Requirements | 220V, 3 Phase, 60Hz, 18A |
| Machine Weight | Approx. 4,400 lbs |
Applications
đź“„ Precision cutting for paper, cardstock, and packaging materials
đź“š Trimming books, catalogs, and brochures
🏢 Suitable for commercial printers, in-plants, and bindery operations
Benefits
âś… High-precision cuts with servo-driven backgauge control
âś… Quick setup with programmable touchscreen interface
âś… Durable construction with long-lasting components
âś… Enhanced operator safety with self-monitoring light barriers
âś… Seamless integration into automated workflows via CIP3/CIP4
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
