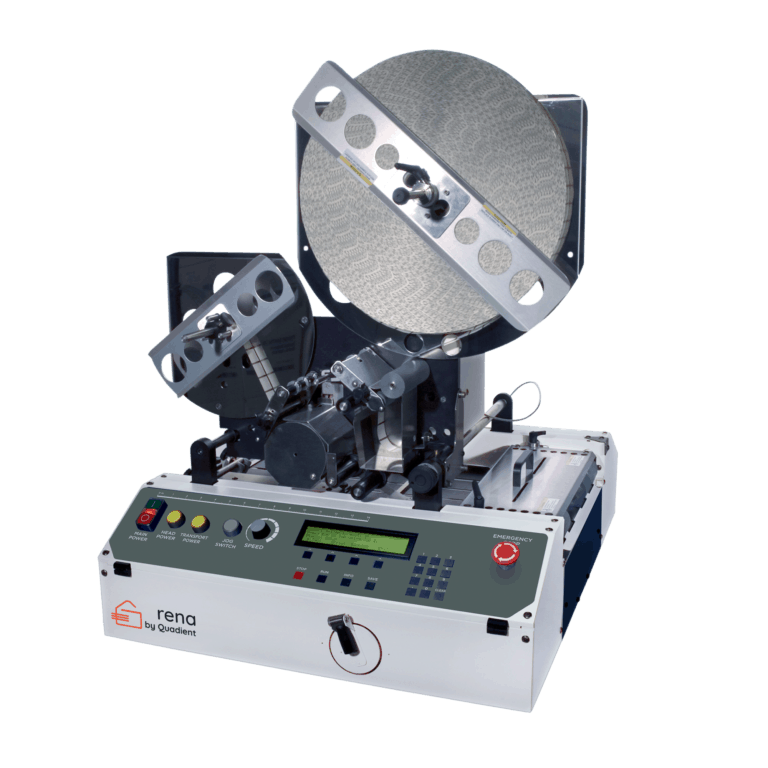

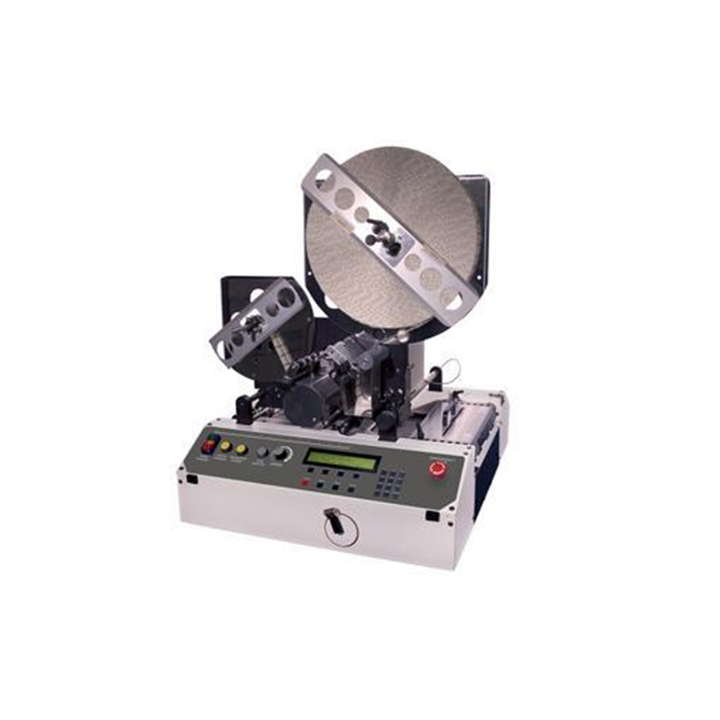

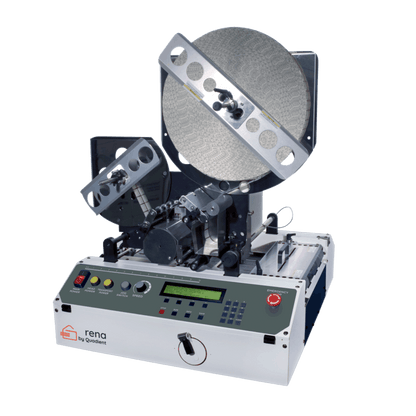

Rena T-950 Inline Tabber/Labeler/Stamp Affixer
Rena T-950 Inline Tabber/Labeler/Stamp Affixer
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
T-950 System Details:

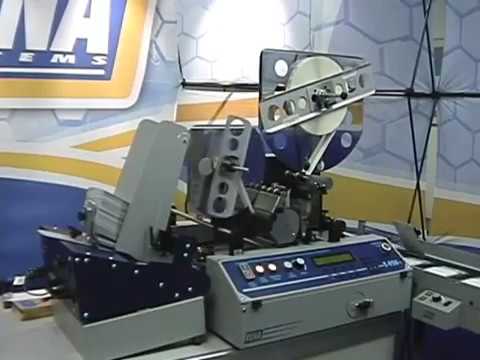

The T-950 Tabber is the best high-speed system we have ever offered. It doesn’t just have high speed ratings like the competition; it runs and runs smoothly at over 35,000 per hour. Just watch our video. While the competition is vibrating and thrumming at less than 30,000 per hour, the T-950 runs like a fine European sports car. Fast, but controlled. Stamps? Check. Labels? Yep. Clear, Translucent, or Paper tabs? Of course. It can apply up to three tabs per pass and can apply multiple stamps at one time – something no other system can do. It has a precision cam system that raises the entire head to handle material 1/2" thick. It also tabs from the front or back of the transport. The massive 16” reel capacity holds enough tabs to run uninterrupted for an hour straight – true productivity.
Equipment Features:
- Tabs/Stamps 35,000 Pieces/Hour
- Applies Clear, Translucent, & Paper Tabs
- Automatic Tab Positioning
- Holds Standard Rolls (3" Core)
| Tabbing Speed (11" Min. Piece Length) | Single Tab: Up to 35,000 pieces per hour |
| Double Tab: Up to 30,000 pieces per hour | |
| Triple Tab: Up to 20,000 pieces per hour | |
| Labeling Speed | Fan-Folded Labels: Up to 9,500 pieces per hour* |
| 1" x 4" Roll Labels: Up to 24,000 pieces per hour | |
| *RENA RS-35-15-1A Only | |
| Material Size | Minimum (W x L): 3" x 5" |
| Maximum (W x L): 13” x 17” | |
| Material Thickness | Up to 1/2" |
| Label Size | Up To 4” x 7" wide with supplied Wide Applicator Head |
| Tab Size | MIN: 3/4” x 3/4” |
| MAX: 2” x 7” | |
| Tab Sensitivity | Adjusts for density in tab/wafer seals |
| Reel Capacity | 19" Diameter (3" Core) |
| Number of Tabs | 1, 2, or 3 Tabs |
| Tab Accuracy | +/- 1/8” |
| Feeder Control | Start/Stop Control for other RENA Systems Feeders |
| Production Monitors | Life and Job Count and Production Rate and Speed |
| Error Reporting | Yes |
| Features | Left to Right Operation |
| Can apply up to three stamps | |
| Safety | Interlocks on all adjustments |
| Emergency stop watch | |
| Duty Cycle | 120 million addresses total or 2,000,000 per month over a 5-year life cycle |
| Dimensions | 27” W x 33” D x 37” H |
| Weight | 150 lbs |
| Electrical | 115VAC or 240VAC 50/60 Hz |
| Options | Conveyor/Stacker/Dryer, Drop Tray |
