RENA by Quadient Mach 5DX
The RENA Mach 5DX Duplex Color Printer delivers full-bleed, high-speed CMYK printing on both sides, with Memjet® technology, 1600 dpi resolution, and versatile media handling.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Details & specifications

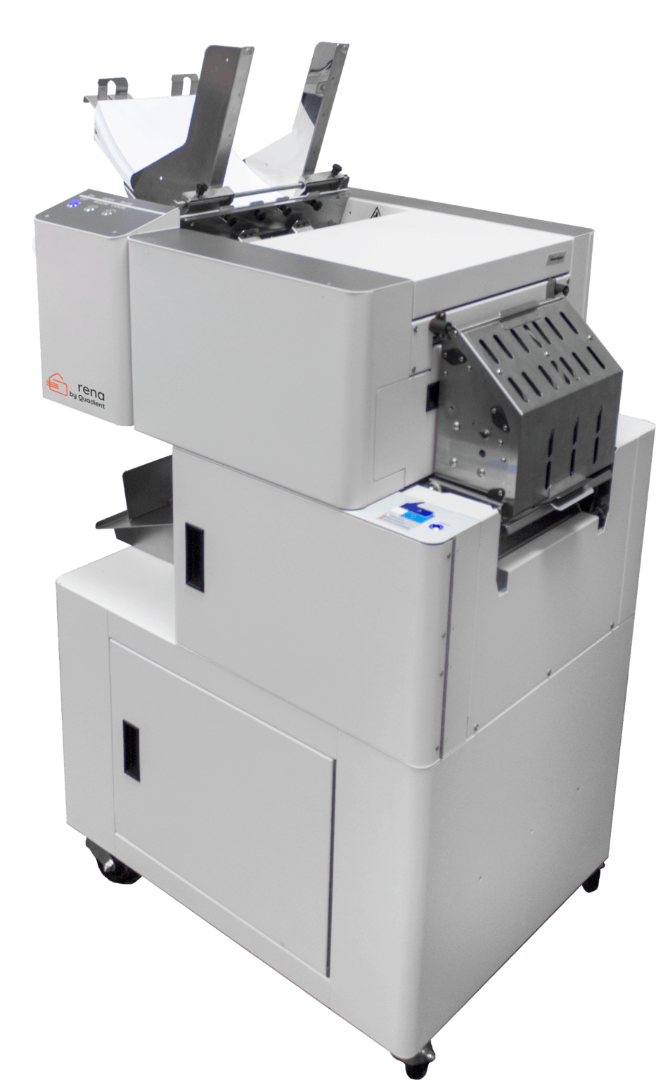

Duplex Color Envelope & Sheet Printer
The RENA Mach 5DX is a duplex (two-sided) full-color Memjet® inkjet printer designed for high-speed, high-impact printing on envelopes, postcards, and cut sheets. With the ability to instantly switch between one- and two-sided printing, the Mach 5DX expands the versatility of digital mail and marketing production. It features full-bleed color printing, high-capacity ink tanks, and a sliding duplex print engine for easy maintenance. Engineered for speed, flexibility, and stunning results, it’s the perfect solution for in-house print centers, marketing teams, and direct mail specialists.
Key Features
🔷 Full Duplex Color Printing – Prints on one or both sides with a simple toggle for maximum versatility.
🔷 High-Resolution Output – Delivers stunning results at 1600 x 1600 dpi or 1600 x 800 dpi.
🔷 Full-Bleed Printing – Covers 100% of the media surface, eliminating white borders.

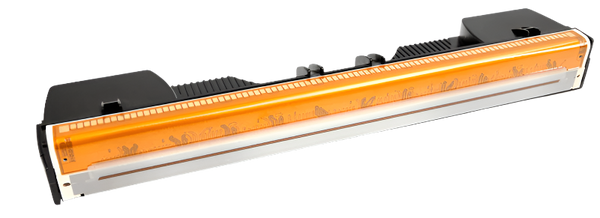

🔷 Memjet® Technology – Combines high speed with brilliant CMYK color output and no-contact, no-heat operation.
🔷 Fast Production Speeds – Prints up to 7,500 #10 envelopes/hour or 3,600 full-color duplex 8.5” x 11” sheets/hour.
🔷 Sliding Duplex Print Engine – Slides out for easy access, cleaning, and maintenance.
🔷 Handles Varied Media Sizes – Supports everything from 3” x 4.2” up to 17” x 9.5”, with media up to 0.020” thick.
🔷 Intelligent Mail Barcode Ready – Complies with postal addressing requirements.
🔷 High-Capacity Ink Tanks – Designed for cost-effective, long runs without frequent cartridge changes.
🔷 Advanced Paper Transport – Pressure roller and star roller system for smooth feeding and image alignment.
Specifications
| Specification | Details |
|---|---|
| Print Technology | Memjet® CMYK Inkjet |
| Max Print Speed | 7,500 #10 envelopes/hr or 3,600 duplex sheets/hr |
| Print Resolution | 1600 x 1600 dpi / 1600 x 800 dpi |
| Max Print Area | 8.5” x 30” full-bleed |
| Min Media Size (1-side) | 4.2” x 3” |
| Min Media Size (2-side) | 6” x 4” |
| Max Media Size (1-side) | 17” x 9.5” |
| Max Media Size (2-side) | 17” x 9” |
| Media Thickness | Up to 0.020” (0.5 mm) |
| Ink Configuration | High-capacity CMYK tanks |
| Interfaces | USB, Ethernet |
| Control | Touchscreen interface |
| Weight with Printer | 146 lbs |
| Dimensions with Printer | 39” x 21.5” x 54.5” |
Applications
✉️ Duplex Envelope Printing – Adds addressing and promotional content on both sides of envelopes.
📄 Full-Color Cut Sheet Printing – Ideal for bills, statements, flyers, and personalized inserts.
🎯 Variable Data & Barcoding – Integrates barcodes, names, and custom fields into each piece.
🖼 Marketing & Promotional Mailers – Produces eye-catching, borderless pieces in brilliant color.
Available Options
📍 RENA Console Stand – Mobile base with storage for inks and accessories.
📍 EASYInk High-Yield Ink Cartridges – Designed for cost-efficient operation.
📍 RIP & ICC Profiles – Optional Harlequin® RIP and color profiles for professional color management.
Benefits
✅ Prints duplex full color in one pass, saving time and labor.
✅ Supports full-bleed designs for professional, edge-to-edge output.
✅ Maintains sharp, vibrant quality with 1600 dpi Memjet® printing.
✅ Reduces maintenance with a sliding duplex print engine.
✅ Supports a wide range of media, making it ideal for diverse mail and marketing applications.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
