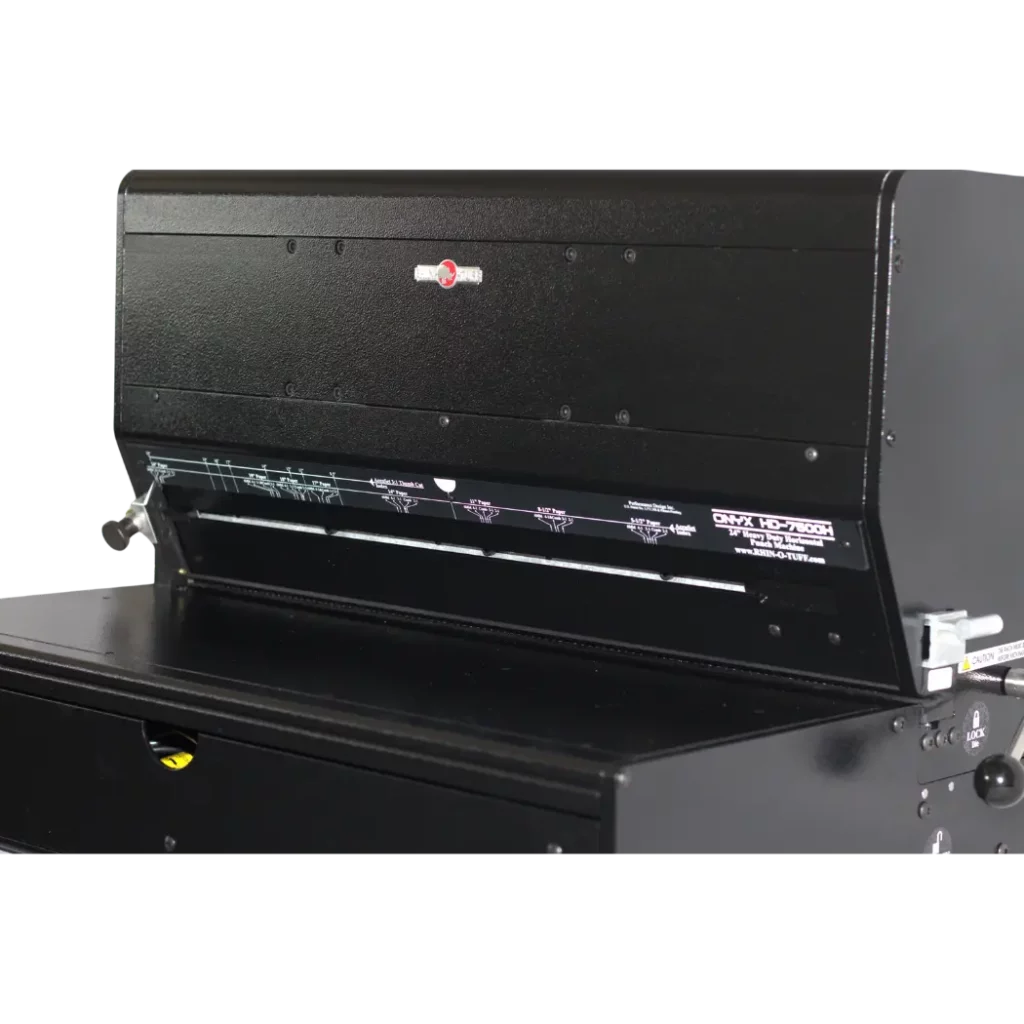

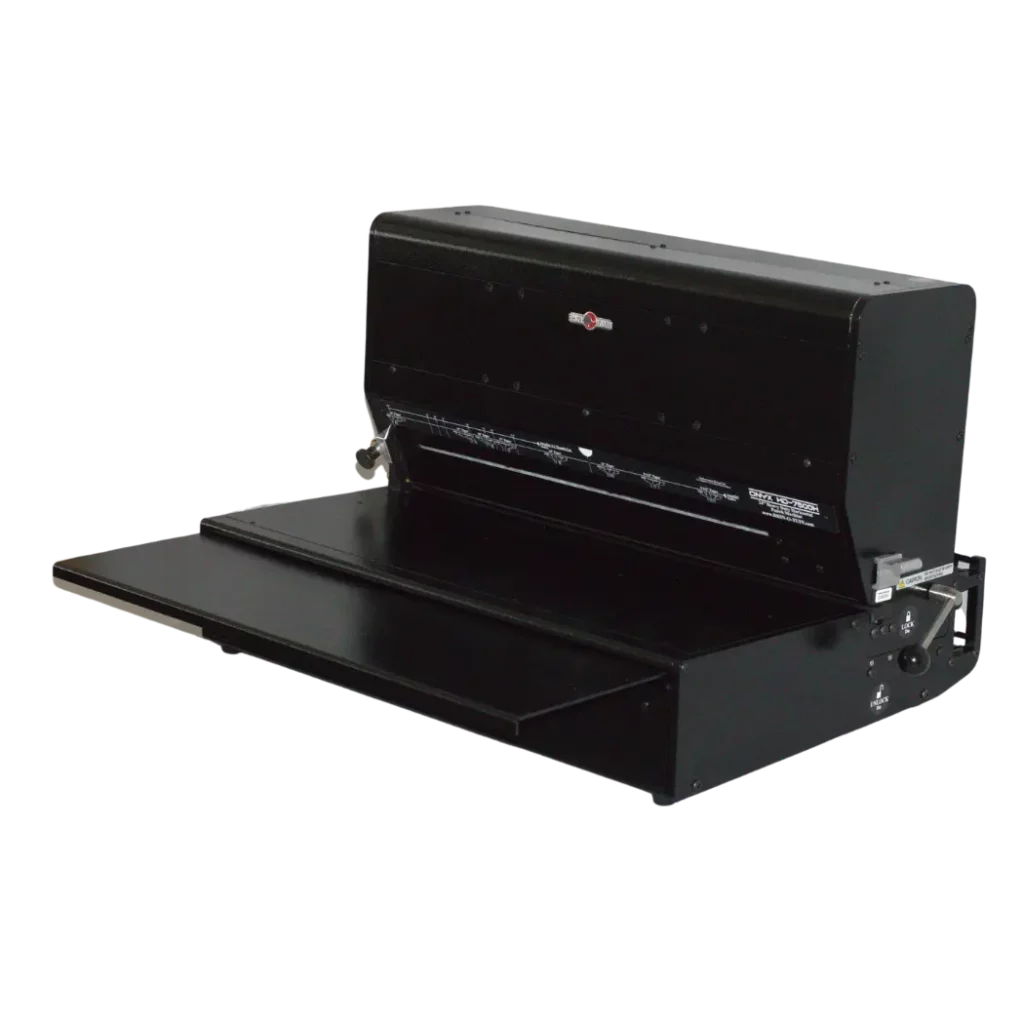

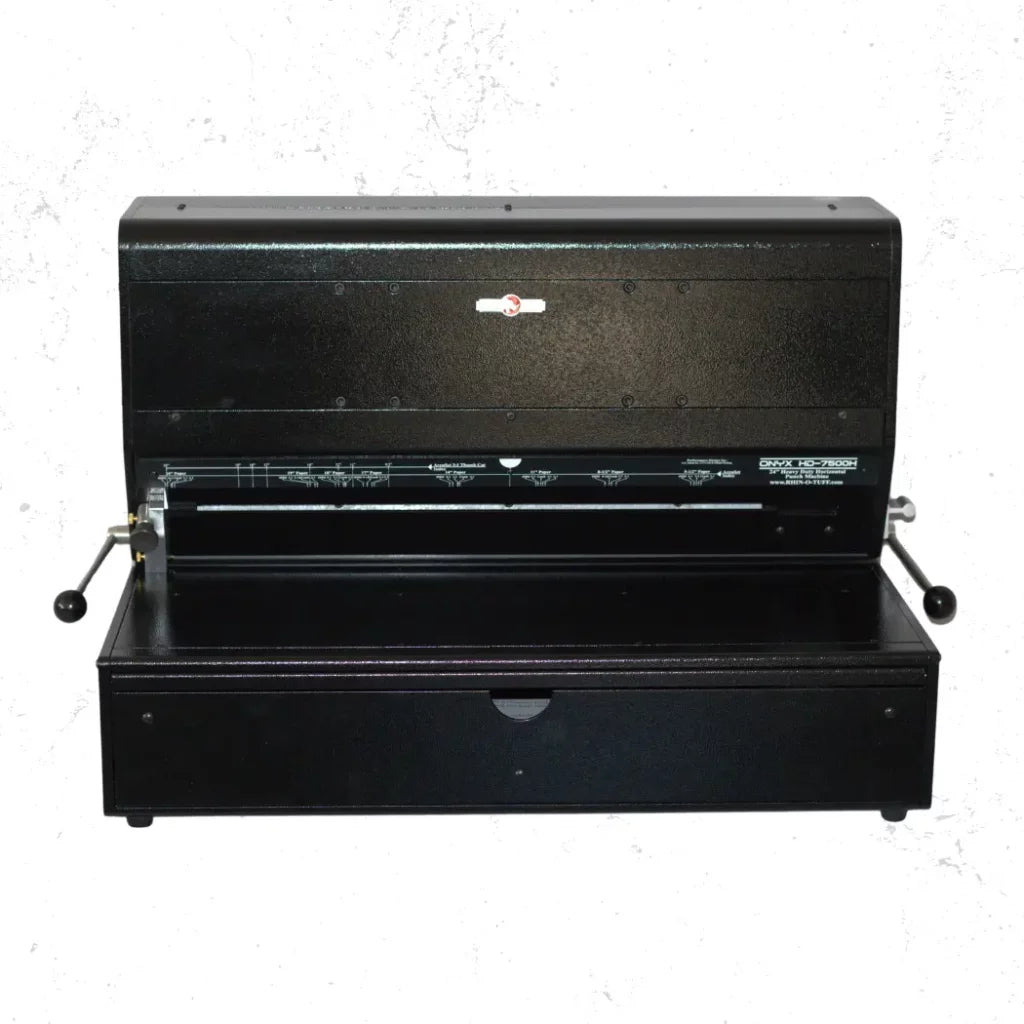

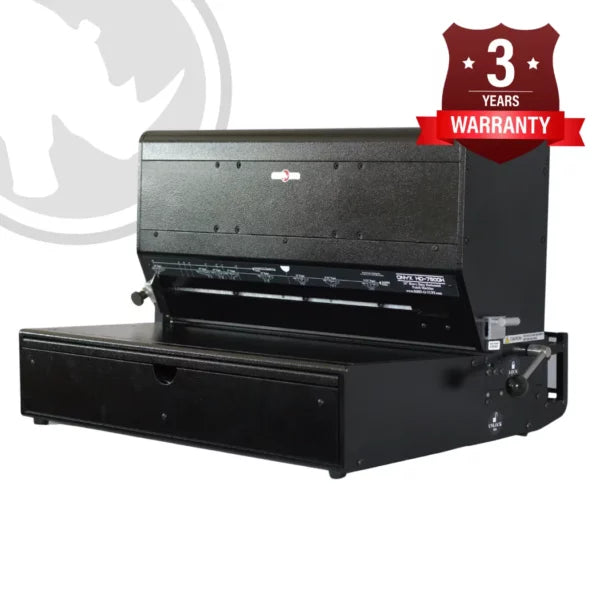

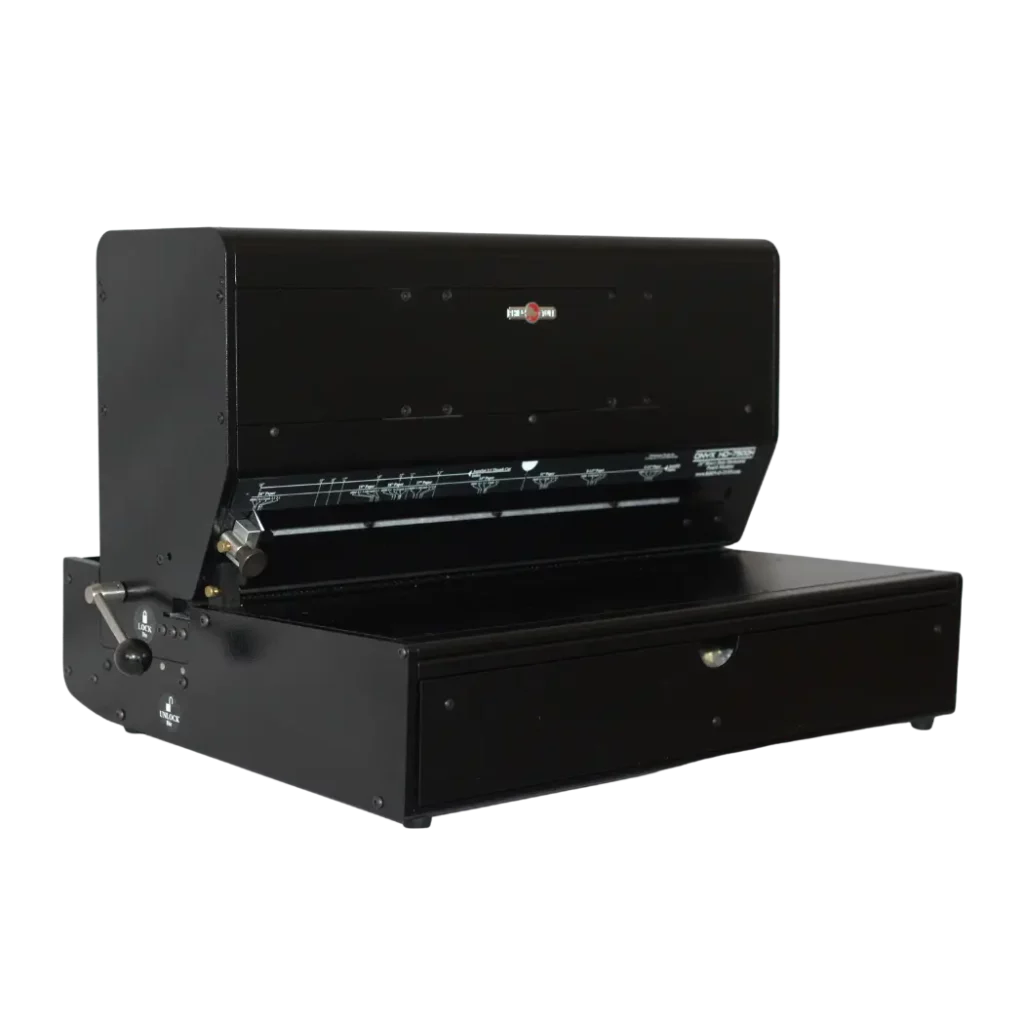

Rhin-O-Tuff Onyx HD7500H 24" horizontal electric punch

Horizontal electric punch

The Rhin-O-Tuff Onyx HD7500H is a 24-inch open-ended horizontal electric punch for high-volume commercial and corporate binding work. The Quick Change Die System (QCDS) changes punch patterns without tools, the machine punches up to 40 sheets of 20 lb. paper per cycle, and it takes dies for coil, wire, and comb binding. A pull-out extension table, quiet power-on-demand motors, and a heavy-duty frame suit it to wide-format and calendar jobs.

Key features

• 24" open-ended horizontal punch, sized for calendars and large-format punching.
• Quick Change Die System (QCDS) changes punch patterns in under 30 seconds, no tools.
• Takes coil, wire, and comb dies on the same machine.
• 53 punch cycles per minute, for mid to high volume production.
• Built-in die storage holds two 24" dies directly behind the machine.
• Extra high capacity slide-out chip tray, so runs are not stopped to empty it.
• Twin power-on-demand motors run only when needed, which keeps noise down.
• Pull-out extension table expands the work surface for large jobs and retracts to cut the footprint.

Specifications

Applications

• Calendar production: long-edge punches and larger paper sizes.
• Book and manual finishing: coil, comb, and wire punching in high volumes.
• Corporate print departments: daily heavy-duty operation at low noise.
• Bindery and print finishing: commercial work across multiple punch patterns.

Benefits

• Quick-change dies cut setup time on short-run jobs that shift punch patterns.
• Power-on-demand motors keep the machine quiet in a shared work area.
• The 24" open-ended throat takes oversized sheets and calendar stock.
• US-made construction holds up under high-volume daily use.
• A slide-out chip tray and built-in die storage keep maintenance simple.

Warranty

Every Rhin-O-Tuff Onyx system carries a 6-year manufacturer warranty.

Which Onyx punch

Mid-State Litho carries four Rhin-O-Tuff Onyx electric punches and they separate on punch width and orientation. The OD4012 ($2,677) is the 11.7" vertical punch for standard letter and legal work. The HD7000 ($3,748) is the 14" vertical punch and handles the same patterns at higher volume. The HD7500H on this page ($6,799) is the 24" horizontal punch: open-ended at both ends, 40 sheets per cycle, and the one to buy for calendars and wide-format. The HD7725H Ultima ($4,819) sits between them on throughput. All four take Quick Change dies, all four are stocked, and the same factory-trained technicians install and service them.

Frequently asked questions

How many sheets does the Onyx HD7500H punch per cycle?

Up to 40 sheets of 20 lb bond, 80 pages, at 53 cycles per minute.

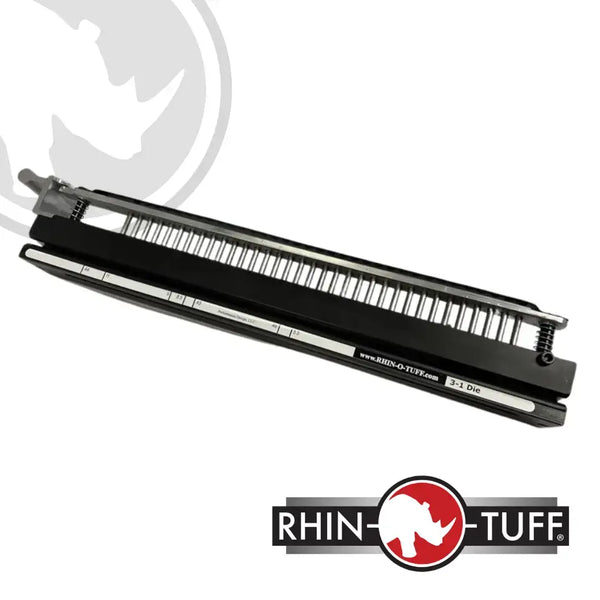

Which dies fit the HD7500?

Coil, wire and comb patterns through the Quick Change Die System, changed without tools. Mid-State Litho stocks 23 HD7500 die patterns.

What does 'open-ended' mean on a 24" punch?

The punch throat is open at both ends, so sheets wider than 24" can be punched in two passes. That is what makes it usable for calendars and wide-format work.

What is the warranty?

Six-year mechanical warranty. The machine is made in the USA and is 98% recyclable.

Why buy from Mid-State Litho

Mid-State Litho has sold and serviced print finishing equipment since 1984 and is an authorized Rhin-O-Tuff dealer. The Onyx line carries a six-year mechanical warranty, and MSL stocks 23 HD7500 die patterns so a pattern change does not become a three-week wait. Factory-trained technicians cover Michigan and the Great Lakes service area. Financing is available on equipment orders and freight is quoted to your dock.
