Rhin-O-Tuff Tornado Autopunch EX II Punch Dies
Interchangeable Rhin-O-Tuff dies for the Tornado Autopunch EX II. 20 patterns for coil, twin-loop wire, comb, VeloBind, ring, and ProClick binding. Authorized Rhin-O-Tuff dealer in Michigan.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

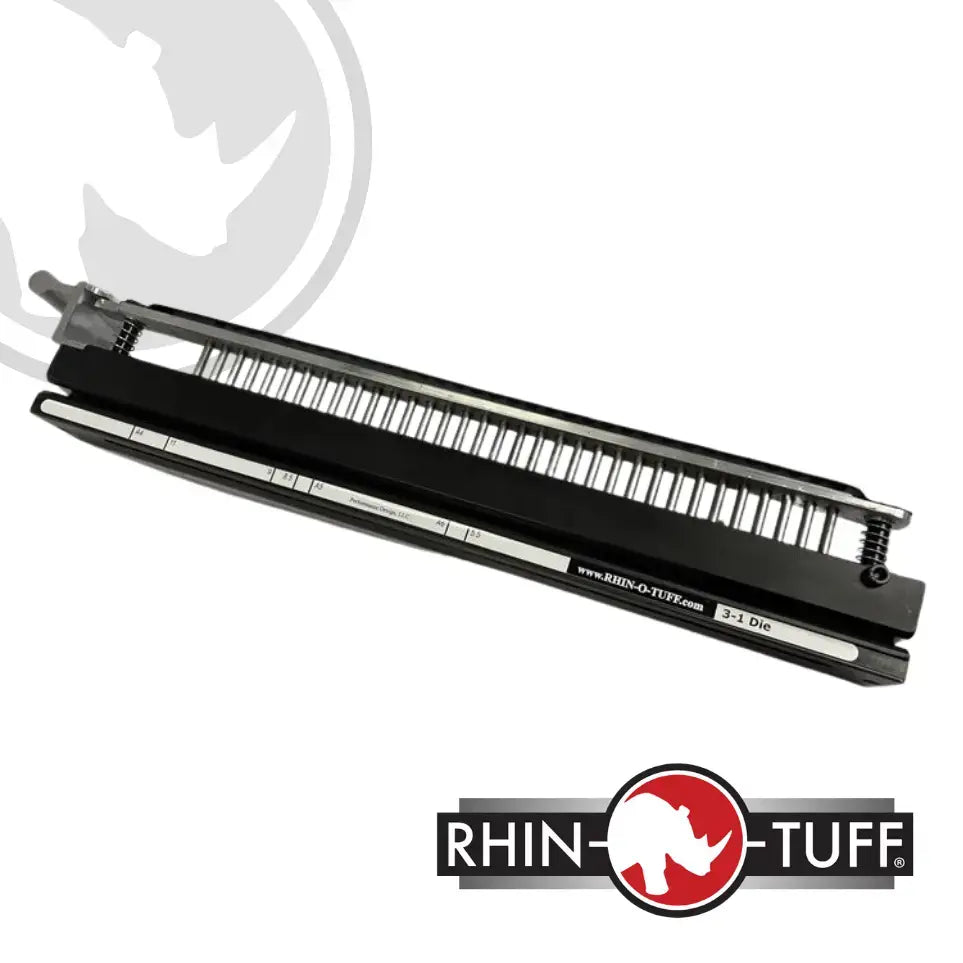

These are genuine Rhin-O-Tuff interchangeable dies for the Tornado Autopunch EX II automatic punch. Mid-State Litho is an authorized Rhin-O-Tuff dealer and lists 20 die patterns for this machine.
The dies are interchangeable. One Tornado can switch between coil, twin-loop wire, comb, VeloBind, and ring binding jobs.
Die patterns for the Tornado Autopunch EX II
Pitch is the number of holes per inch. A 3:1 die punches three holes per inch. Match the die to the pitch and hole shape of the binding supply you buy.
| Binding style | Patterns |
|---|---|
| Twin-loop wire | 2:1 Round, 2:1 Square, 2:1 Rectangle, 3:1 Round, 3:1 Square, 3:1 Oval |
| Coil | 4:1 Round (.2475, .248, .250), 4:1 Oval (.2475, .250), 5:1 Round, 5mm Round, 6mm Round, 6mm Oval |
| Other pitch | 2.5:1 Round |
| Comb, VeloBind, ring, ProClick | Comb, Velo, Ring Binding, ProClick |
How to choose a die
- Find the pitch and hole shape on the box of your binding supply.
- Find the same pitch and shape in the list above.
- If your coil supplier gives a hole diameter, choose the 4:1 die with that diameter.
- If you are not sure, call us with a sample of the bound book.
Why buy Tornado dies from Mid-State Litho
Mid-State Litho has sold and serviced binding equipment in Michigan since 1984. Our factory-trained technicians install and service Rhin-O-Tuff punches across the Great Lakes area.
The dies ship direct from Rhin-O-Tuff. Call us for the current lead time before a deadline job.
Frequently asked questions
Do these dies fit the original Tornado or other Rhin-O-Tuff punches?
MSL lists these dies for the Tornado Autopunch EX II only. Other Rhin-O-Tuff punches have their own die pages.
How many dies does a shop need?
Most shops start with one die for the binding style they run most. Add a second pattern when you bring a new binding supply in house.
Can MSL help me pick the right die?
Yes. Send us a bound sample or the part number on your binding supply, and we will match the die.
