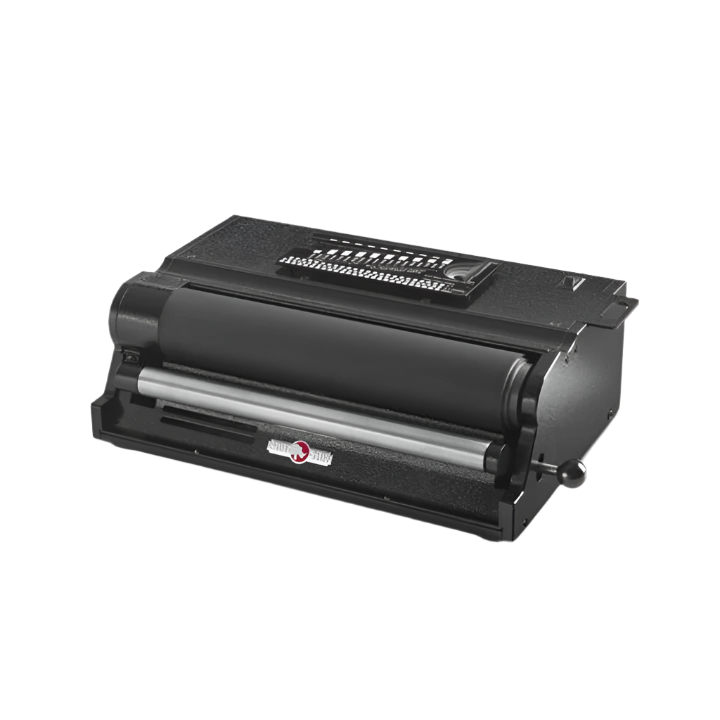

Rhin-O-Tuff HD4170 Coil Inserter Module

The Rhin-O-Tuff HD4170 Coil Inserter Module is a high-performance, versatile coil inserter designed to streamline the coil binding process. This advanced machine is perfect for professional binding operations, offering precise and efficient coil insertion for a wide range of document sizes and thicknesses.

Key Features:

• Dual Powered Rollers: The HD4170 features 12-inch dual powered rollers with an adjustable lower roller, ensuring accurate and consistent coil insertion every time.
• Superior Rubber Formula: The main roller is made from a superior rubber formula that provides a firm grip on the coil, preventing slippage and misalignment during insertion.
• Document Thickness Gauge: An integrated document thickness gauge offers a quick reference for selecting the perfect coil size for your project.
• Coil Sizing Gauge: The machine includes a coil sizing gauge to help users determine the appropriate coil size for their documents.
• Universal Compatibility: The HD4170 can be used as a stand-alone production coil inserter or mounted on any Rhin-O-Tuff vertical punch, providing flexibility in workflow.

• Crimping Pliers and Holder: The package includes crimping pliers and a built-in holder, enhancing the user experience and ensuring a complete binding solution.
• Heavy-Duty Construction: Built with durable materials, the HD4170 is designed to withstand the demands of continuous use in high-volume settings.
• Warranty: Backed by a 3-year warranty for peace of mind and product reliability.

Benefits:

• Efficiency: The dual powered rollers and superior rubber formula ensure fast and accurate coil insertion, reducing downtime and increasing productivity.
• Versatility: The HD4170's compatibility with various Rhin-O-Tuff punches and its ability to function as a stand-alone unit make it suitable for a wide range of binding applications.
• Durability: The heavy-duty construction ensures long-lasting performance, even in demanding environments.
• Precision: The integrated document thickness and coil sizing gauges provide accurate measurements, ensuring professional binding results.

Applications:

• Commercial Print Shops: Ideal for high-volume coil binding tasks.
• In-Plant Print Facilities: Suitable for internal document production and binding.
• Office Environments: Perfect for creating professional presentations, reports, and other bound documents.

Use the HD4170 with a Rhin-O-Tuff punch

The HD4170 inserts the coil after you punch the sheets. It does not punch. You can use it stand-alone, or you can mount it on a Rhin-O-Tuff vertical punch.

These Rhin-O-Tuff punches take a 4:1 oval coil die:

• Rhin-O-Tuff ONYX OD4012
• Rhin-O-Tuff ONYX HD7000
• Rhin-O-Tuff ONYX HD7725H Ultima

If you bind coil books every day, add the HD4170 to a die punch. If one operator binds short runs at a desk, compare the Coil Binding System 3000. The CBS3000 punches, inserts and crimps on one machine.

See every model on the coil binding page or the Rhin-O-Tuff page.

Shipping and support

The HD4170 ships by ground carrier. Rhin-O-Tuff gives a 3-year warranty on the machine.

You can buy it online. For a quote on a punch and inserter together, contact us.

Mid-State Litho is a family-owned dealer in Michigan, in business since 1984. For setup and repair, see service and support. To pay in monthly amounts, see financing and leasing.

Frequently asked questions

What does the Rhin-O-Tuff HD4170 do?

The HD4170 turns a plastic coil into pre-punched sheets. Two 12 in. powered rollers spin the coil through the holes. It does not punch paper.

Can the HD4170 mount on a punch?

Yes. You can use the HD4170 stand-alone, or you can mount it on a Rhin-O-Tuff vertical punch.

Does the HD4170 crimp the coil ends?

No. The HD4170 comes with crimping pliers and a holder for the pliers. The operator crimps the coil ends with the pliers.

What power does the HD4170 need?

The US model runs on 115 volts, 3 amps, 60 Hz. A 230 volt, 50 Hz model is also listed in the specifications.

How big is the HD4170?

The machine weighs 24 lb and ships at 30 lb. It is 17 in. wide, 11 in. deep and 6 in. high.
