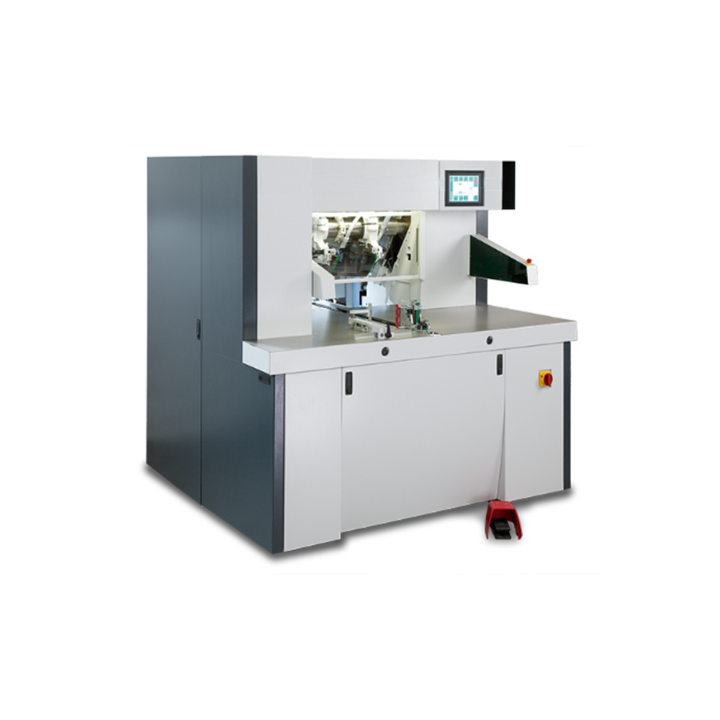

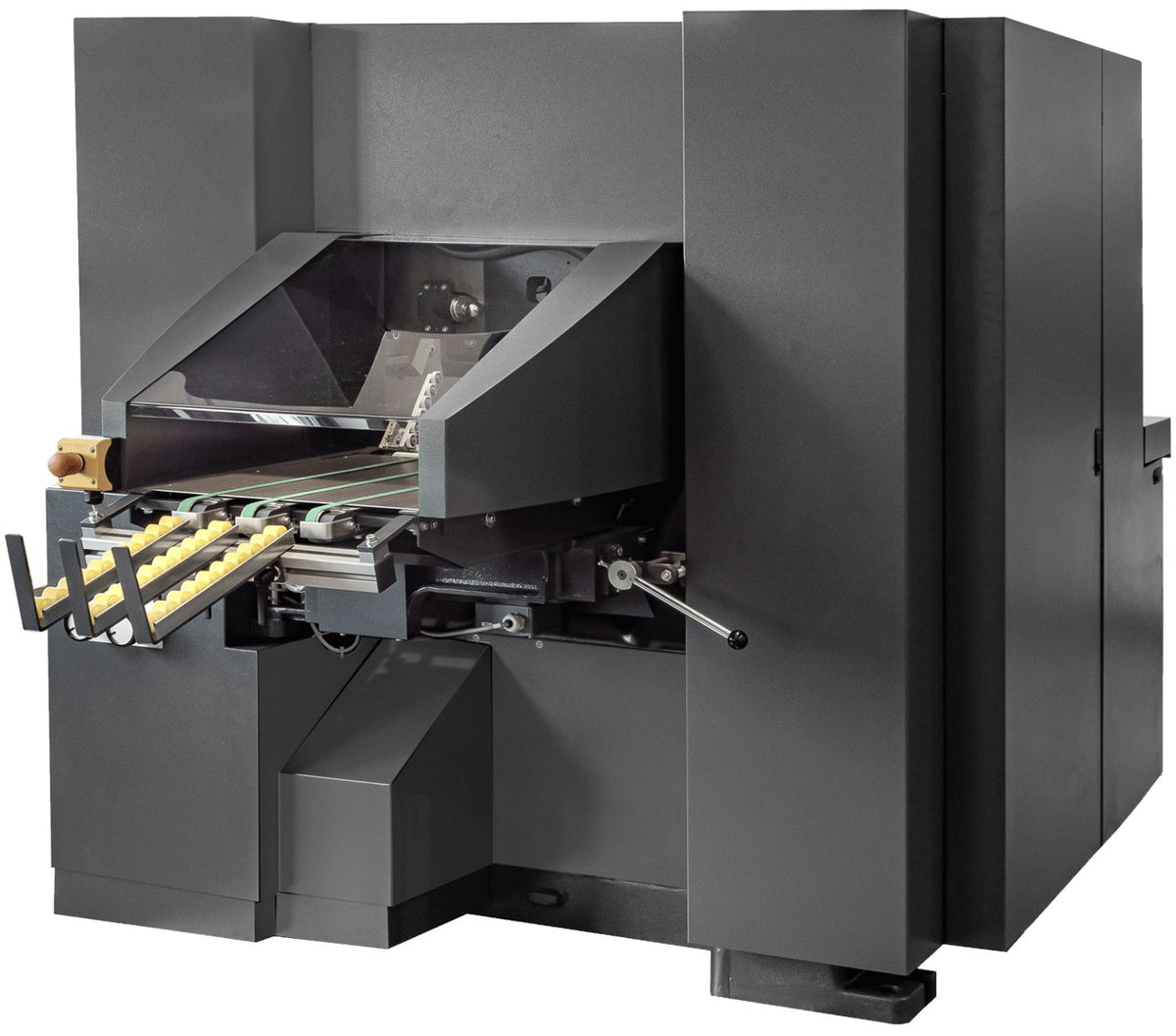

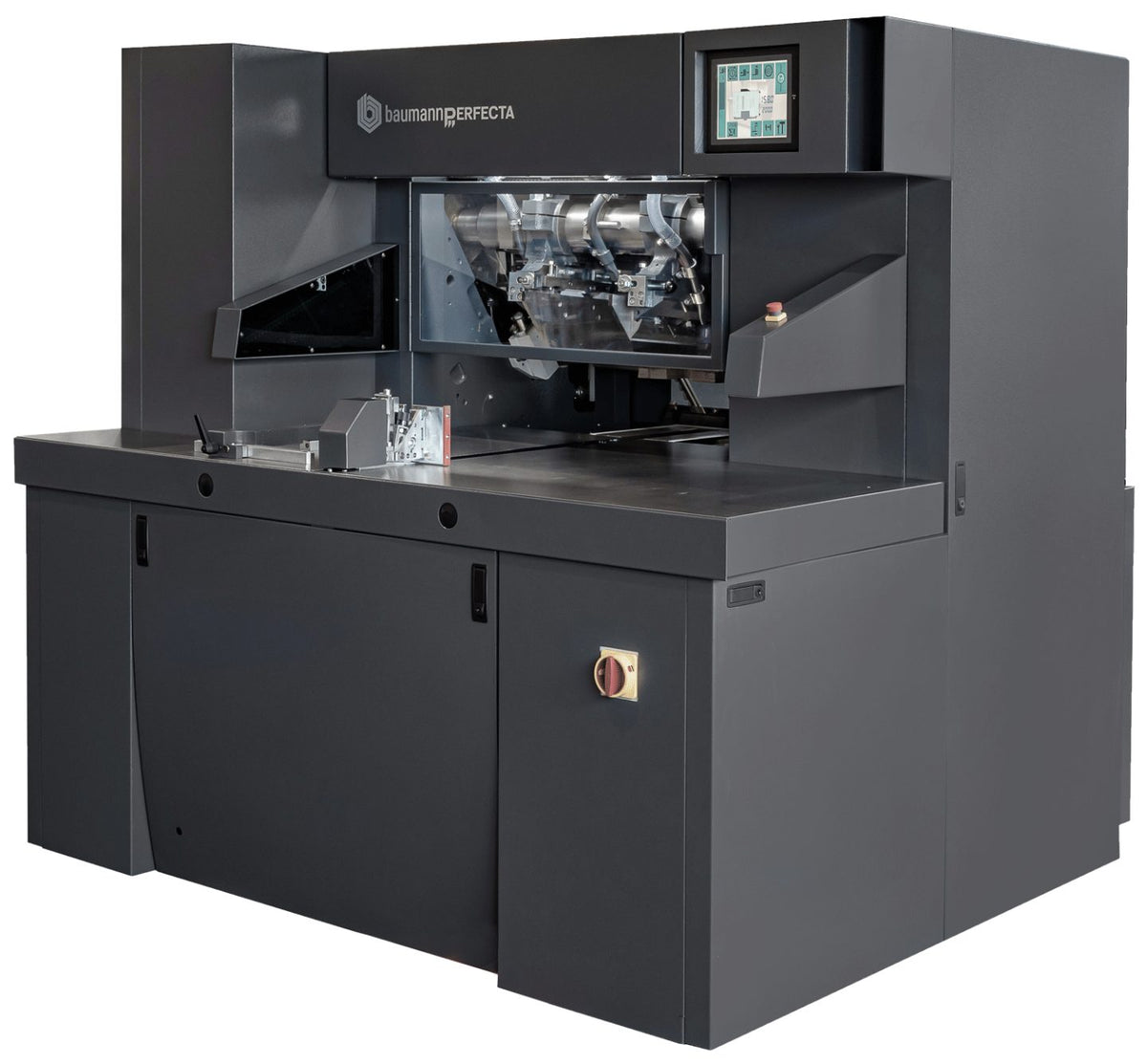

SDY TS Three-Knife Trimmer

SDY TS Three-Knife Trimmer

How to Purchase This Item:

Versatile off-line Three Knife Trimmer for trimming books, brochures, magazines, and similar products. Optional 4-side trimming device for signatures or loose-leaf products. Two operating modes allow for high versatility between short runs and larger jobs. In return-mode the feeder unit returns the finished products to the operator at the front. In continuous mode the stack is pushed to the delivery in the back.

SDY-TS Product Specifications:

  • Min. finished size: 2 ¾” x 3 5/32” (70 x 80 mm)
  • Max. finished size: 11 13/16” x 16 ½” (300 x 420 mm)
  • Max. unfinished size: 13 37/64” x 20 15/32” (345 x 520 mm)
  • Max. feeding height: 3 15/16” (100 mm)
  • Max. trimming height: 3 15/16” (100 mm)
  • Clamping force: 660 – 5,500 lbs
  • Feeder clamp force: 66 - 200 lbs
  • Main drive power: 3 kW
  • Net weight: 7,150 lbs

Special Product Features:

  • Machine frame with sealed oil-bath main gearbox and helical, ground spur gears.
  • Swing-off delivery unit for easy access during knife change and change of trimming and clamping plates.
  • A flat cutting angle of the side knives guarantees quality trimming and ensures long life for blades and cutting sticks.
  • Synchronized control of all working functions including the feeder clamp system.
  • Continuously adjustable hydraulic clamping system with soft pre-clamping.
  • Continuously adjustable feeder clamp force.
  • Cycle-controlled air system for scrap removal.
  • Knife quick-changing cassettes and setting gauge.
  • Automatic centralized lubrication.
  • Trimming and clamping plate quick-action lock for short resetting time.
  • Lockable master switch.
  • Main drive motor with star-delta starting circuit.
  • Protection relays for all motors.
  • Working place light.
  • Cut counter.
  • Blower for scrap removal.
  • Hydraulic system for main clamp and feeder clamp.
