Spiel Sterling Digibinder
Spiel Sterling Digibinder
Item Number:
Digibinder

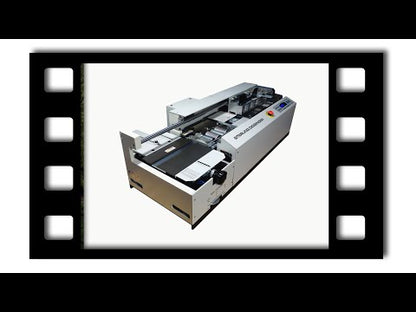

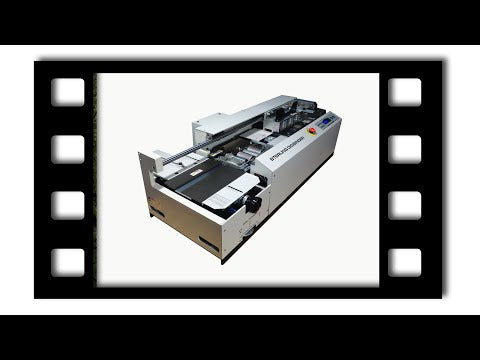

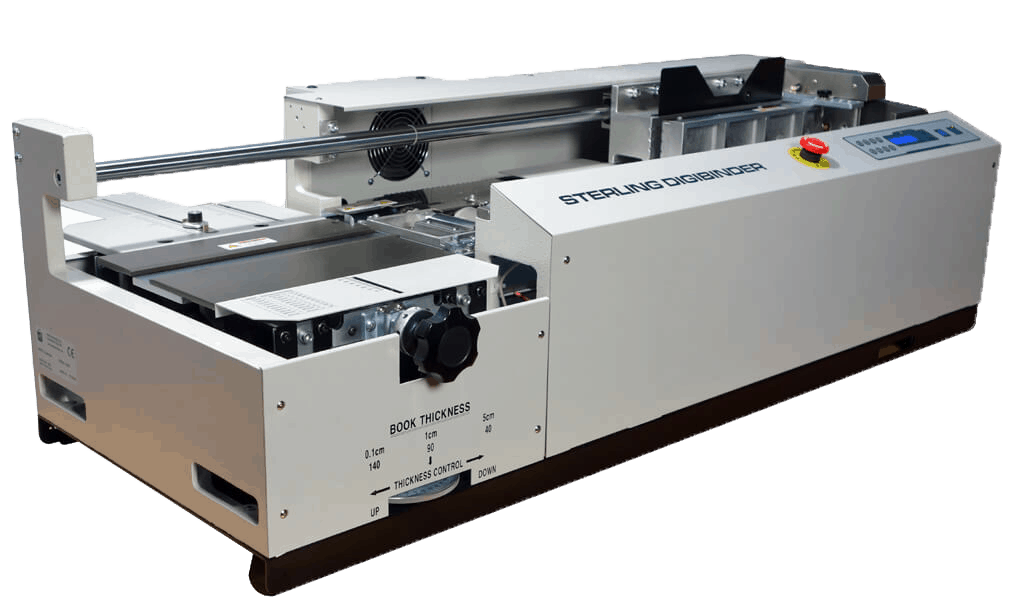

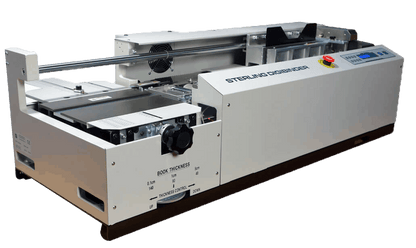

Sterling Digibinder
Automatic, on-demand perfect binding up to 360 books/hour with twin glue rollers, side gluing, and self-adjusting pneumatic controls.
Product Overview
The Sterling Digibinder sets the standard for automatic, short-run perfect binding. The pneumatic clamp and nipper self-adjust from two sheets to 2.25" thick, so you can run mixed jobs back-to-back with no setup. A roughing blade preps offset and coated stocks; twin glue rollers saturate the spine and a third metering roller smooths the laydown. Built-in side gluing and adjustable nipper pressure produce clean hinges and square-backed books—ideal for digital print environments.
SpeedUp to 360 books/hour
Book Thickness2 sheets to 2.25" / 57 mm
Spine LengthUp to 12.5" / 32 cm
Max Cover Size13.4" × 30.75" / 34 × 78 cm
Key Features

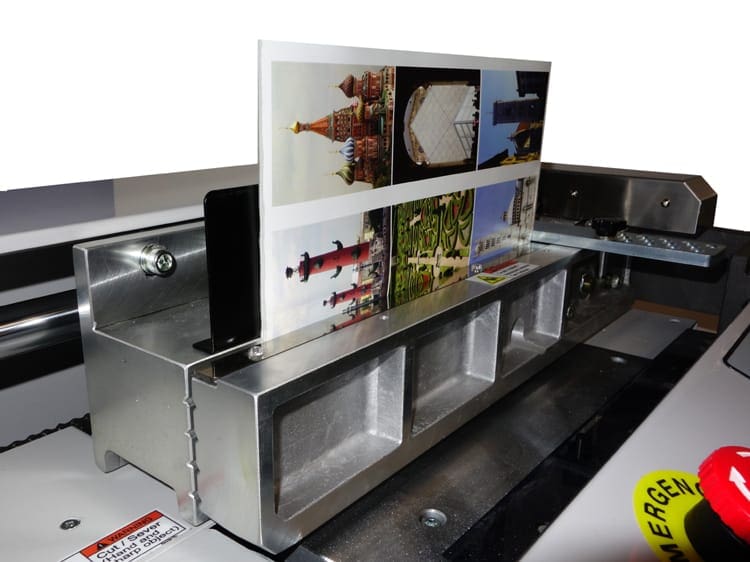

- Automatic pneumatic clamp & nipper—bind thin to thick jobs consecutively with no adjustments.

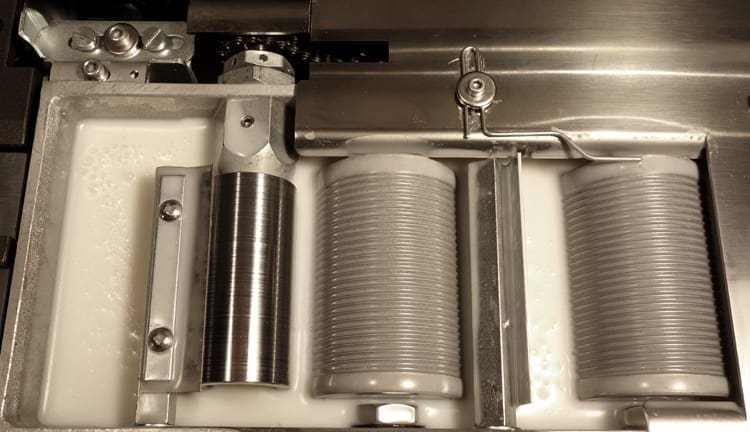

- Twin glue rollers + metering roller for even, controlled adhesive application.

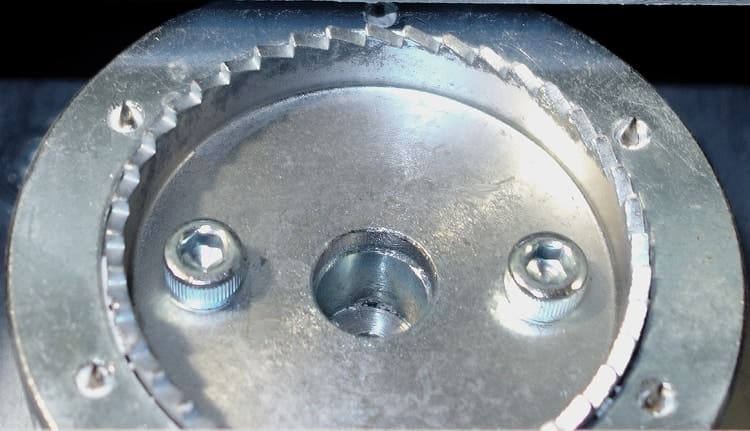

- Roughing blade (serrated) accepts up to six notching pins for stronger bonds.

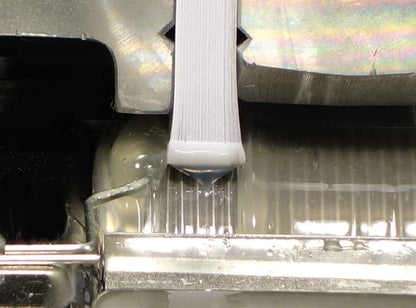

- Side-gluing pin creates durable hinges and crisp cover lines.
- Adjustable nipper travel, dwell (up to 3s), and height for square-back results.
- Silent compressor included for pneumatic systems.
- Handles offset, coated, and oil/wax-based ink stocks reliably.
Specifications
| Specification | Digibinder |
|---|---|
| Speed | Up to 360 books/hour |
| Maximum Book Thickness | 2.25" / 57 mm |
| Minimum Book Thickness | 2 sheets |
| Maximum Spine Length | 12.5" / 32 cm |
| Maximum Cover Size | 13.4" × 30.75" / 34 × 78 cm |
| Power | 220V 1-Phase, 10A / 2.2 kW |
| Dimensions (L × W × H) | 32" × 54.4" × 17" (81.3 × 138 × 43 cm) |
| Weight | 339 lb / 154 kg |
Applications
- Digital/on-demand perfect-bound books for print shops and in-plant CRDs
- Corporate reports, manuals, catalogs, course packs
- Photobooks, softcovers, square-back pads
- Short-run to mid-volume binding across coated and offset stocks
Available Options
- Digiglue and iGlue adhesive formulations for coated stock
- Alternate notching pins (standard pattern)
Benefits
- — True one-touch binding with automatic clamp & nipper
- — Square-back, durable books with side glue and adjustable nipper
- — Even, repeatable glue laydown from twin rollers + metering roller
- — Runs coated/offset stocks with reliable roughing & notching
- — Compact footprint with included silent compressor
