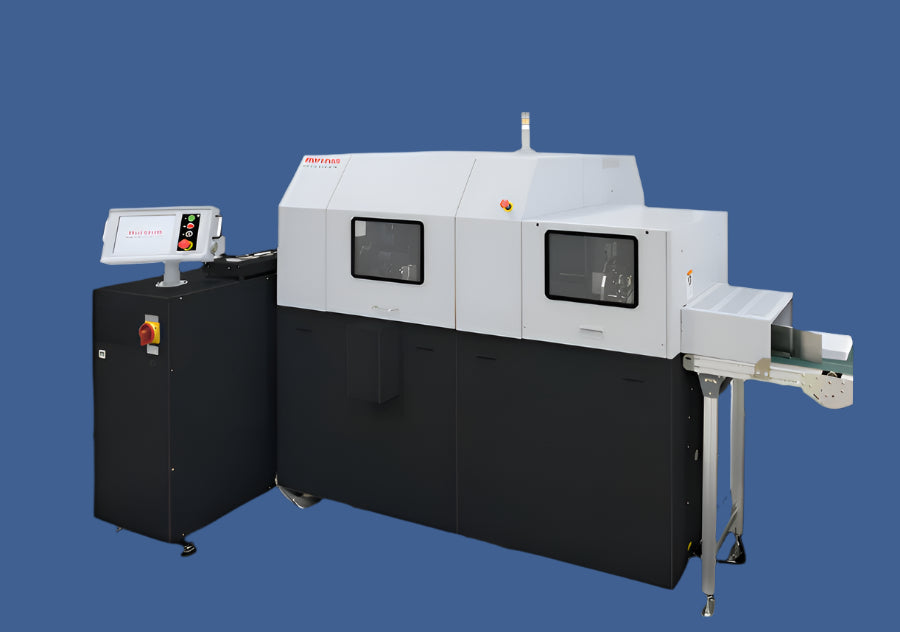

Standard Horizon HT-110

The Horizon HT-110 is a state-of-the-art automated three-knife trimmer designed for precision and productivity in book trimming. This advanced machine is ideal for high-volume trimming tasks, delivering user-friendly operation and exceptional accuracy.

Key Features:

• Highly Accurate Setups: Ensures precise trimming adjustments for consistent results with simple operation.
• Adjustable Trimming Cycle: Customizable in 13 stages, from 400 to 1,600 cycles per hour, for optimal productivity.
• High Productivity: Stream stacker accumulates up to 4 books at once, enabling production rates of up to 6,000 books per hour.
• Rigid Framing: Durable structure ensures superior trimming accuracy and long-lasting performance.

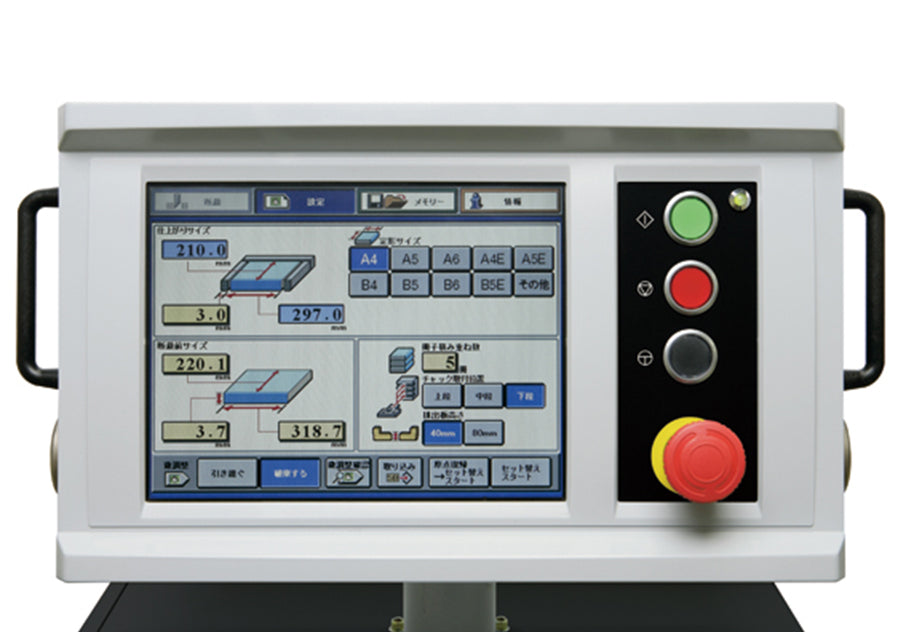

• User-Friendly Control Console: 10.4" color touchscreen interface simplifies settings and operations.
• In-Feed Section: Compresses books to eliminate air for accurate trimming.
• Custom Plates for Trimming Sizes: Optional presser and trimmer plates allow for versatile handling of various book sizes.
• Chuck Plate Recognition Device: LED indicators simplify and speed up chuck plate selection and replacement.
• Trimming Section Control: Adjust knife height and fore-edge angle via the touchscreen, with strong air nozzles clearing away trimmings.
• Chip Extractor (Optional): Efficiently manages waste from the three-knife trimming process.

Specifications:

• Untrimmed Book Size: Max: 410 x 320 mm (16.14” x 12.59”), Min: 148 x 105 mm (5.83” x 4.14”)
• Finished Book Size: Max: 366 x 300 mm (14.40” x 11.81”), Min: 145 x 103 mm (5.71” x 4.05”)
• Trim Width: Fore-edge: 45 mm (1.77”), Top-Bottom: 30 mm (1.18”)
• Trim Height: 2 to 100 mm (0.079” to 3.93”)
• Production Speed: 400 to 1,600 cycles per hour (adjustable in 13 steps)
• Lift Size: Up to 3.14” thick

Benefits:

• Efficiency: High-speed operation and adjustable trimming cycle streamline production and reduce downtime.
• Versatility: Handles a variety of book sizes and trimming needs for diverse applications.
• Ease of Use: Intuitive touchscreen control console simplifies setup and operation.
• Precision: Accurate setups and rigid framing ensure consistent, professional-quality trimming results.

Applications:

• Book Trimming: Perfect for high-volume trimming in commercial print shops and publishing houses.
• Document Finishing: Ideal for precise trimming of various documents, delivering professional results.
