Standard VIVA Inspection Systems

Standard VIVA Inspection Systems

How to Purchase This Item:

Standard VIVA Inspection Systems

Standard VIVA systems are a vision based production management tool that provide complete inspection of all products produced on Standard Horizon perfect binders, saddlestitchers, bookletmakers, folders, and Standard KAS inserters. This fully integrated system is used to complete the required audit trail of package assembly for production of documents with personal and sensitive information. Many users maximize their VIVA system by utilizing it for all work (even non-sensitive pieces) to perform automated full time assembly inspection on all jobs, virtually eliminating common errors caused by improper loading of stock, book blocks, covers; and intermingled jobs and sets even when the full audit trail is not required.

Adhering to objective rules for integrity and assembly, VIVA blends completely into your prodcution process providing the verification of quality, integrity and efficiency that is a must in today's digital environment.

When runs are completed, production information is automatically gathered and stored or sent to a networked destination which can include total produced materials, errors, operator information and much more. Working from your supplied data file in almost any format, VIVA can return the file modified with details of when the package was completed, or any errors in assembly which are instrumental in providing the audit trail and generating reprints for damaged or missing packages. Additional software modules can communicate that information automatically back into third party ADF workfolows or to other third party inspection systems located further downstream in your production process.

  • Quality Control
  • Tracking
  • Reporting of Personalized Documents

The Standard Horizon HOF high-speed sheet-feeder and SP-series or StitchLiner saddlestitchers can be equipped with VIVAstitch software and cameras to perform sheet-level and set-level integrity checking.

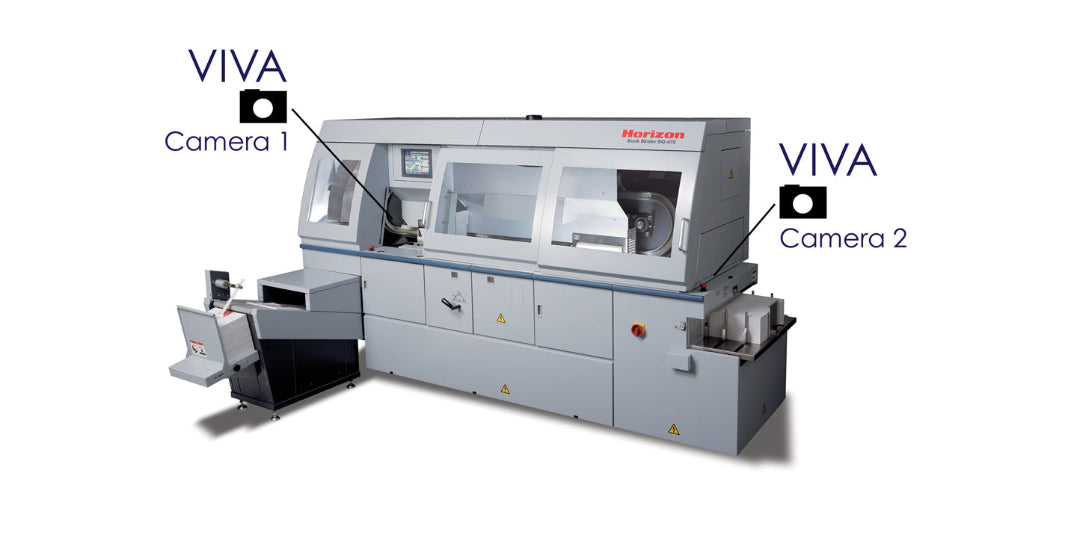

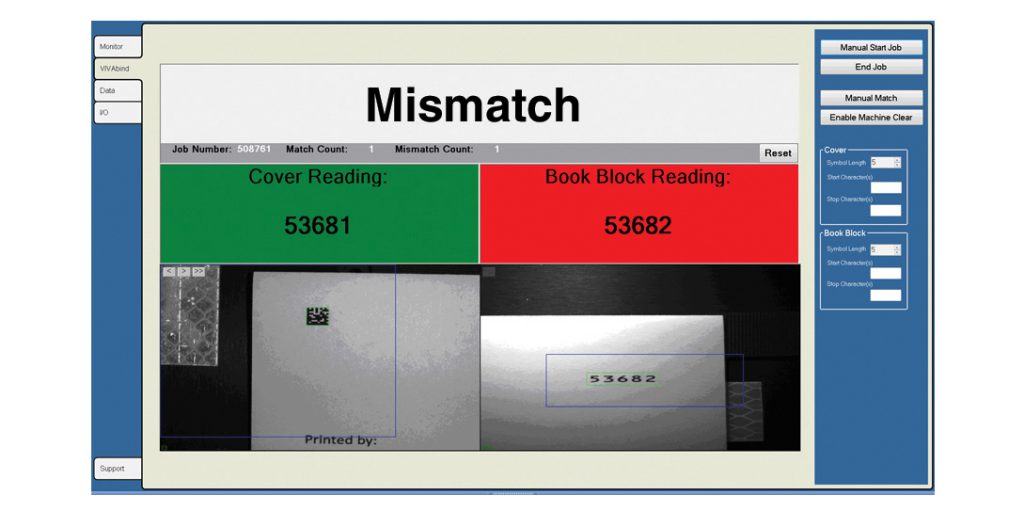

The Standard Horizon BQ=470 or other perfect binders can be equipped with VIVAbind cameras and software to check that book blocks an book covers match.

The Stanadard Horizon AF-series folder can be equipped with VIVAfold cameras and software to check all folded signatures.

Standard's VIVAmail can be used on our Standard KAS inserting systems. The software can perform sheet and set level integrity as well as machine control and matching from other feeders.
