Streamfeeder V-710BC & V-710BC-EX
The Streamfeeder V-710BC and V-710BC-EX are compact batch count feeders for automated packaging and fulfillment. Feeds up to 100 cycles/min, up to 0.75” thick.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Batch count feeders

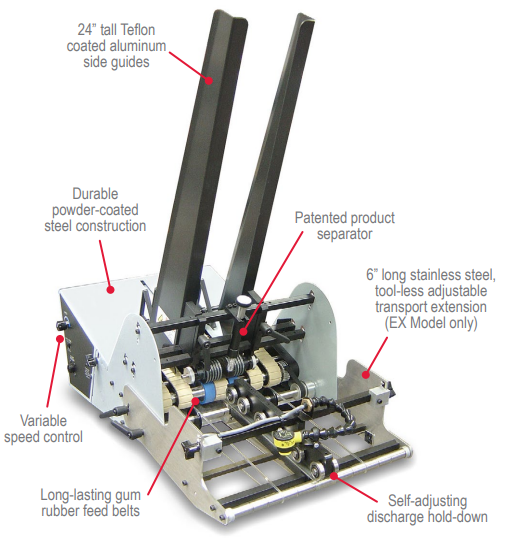

The Streamfeeder V-710BC and V-710BC-EX are entry-level batch count feeders for one-shot or multi-piece product feeding into shrink wrappers, poly baggers, collators, and packaging lines. Belt speed adjusts up to 4,000 inches per minute, and the feeders handle a range of flat and mixed-thickness products for fulfillment, kitting, and collating work. The V-710BC-EX adds a tool-less 6" stainless steel transport extension.
Key features
- Feeds up to 100 cycles per minute
- Batch count feeding from 1 to 50 pieces
- Accepts mixed thickness items up to 0.75" thick
- Adjustable speed up to 4,000 in/min
- Tool-less setup with adjustable side guides and hold-down
- V-710BC-EX adds a 6" stainless steel extension transport
Specifications
| Specification | Detail |
|---|---|
| Max product size | 12" W x 12" L (305 x 305 mm) |
| Min product size | 3.25" W x 2.5" L (83 x 64 mm); optional: 2" W |
| Product thickness range | 0.003" to 0.75" (0.076 to 19 mm) |
| Speed | Up to 4,000 inches per minute |
| Batch count range | 1 to 50 pieces |
| Power | 115/230V, 50/60Hz, 3A |
| Weight | 43 lbs (19.5 kg) |
| Construction | Powder-coated steel with gum rubber feed belts |
| Warranty | One-year limited |
Applications
- Inserting documents into shrink or poly wrap lines
- Order fulfillment and kit packaging automation
- Retail signage and promo pack feeding
- Manual, booklet, envelope, or folder feeding into packaging systems
Available options
- V-710BC-EX with 6" stainless steel transport extension
- Optional side guides for 2" minimum width media
- Integration kits for collators, wrappers, and conveyors
Benefits
- Simple setup and a compact footprint for tight production spaces
- Handles mixed paper, board, and folded materials
- Runs inline with collating and packaging systems
- Lower-cost entry point for automated batch feeding
- Sized for fulfillment centers and light production lines
