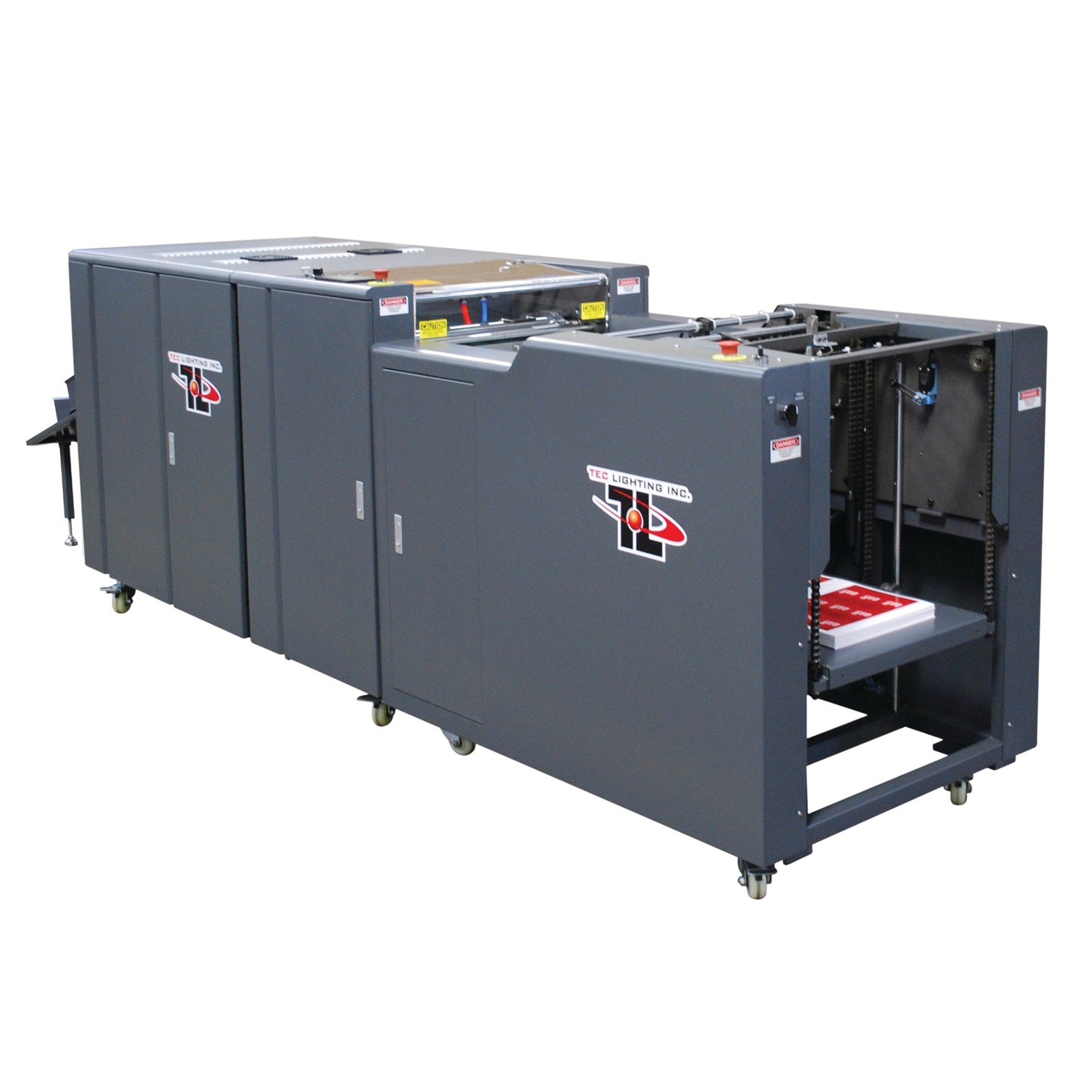

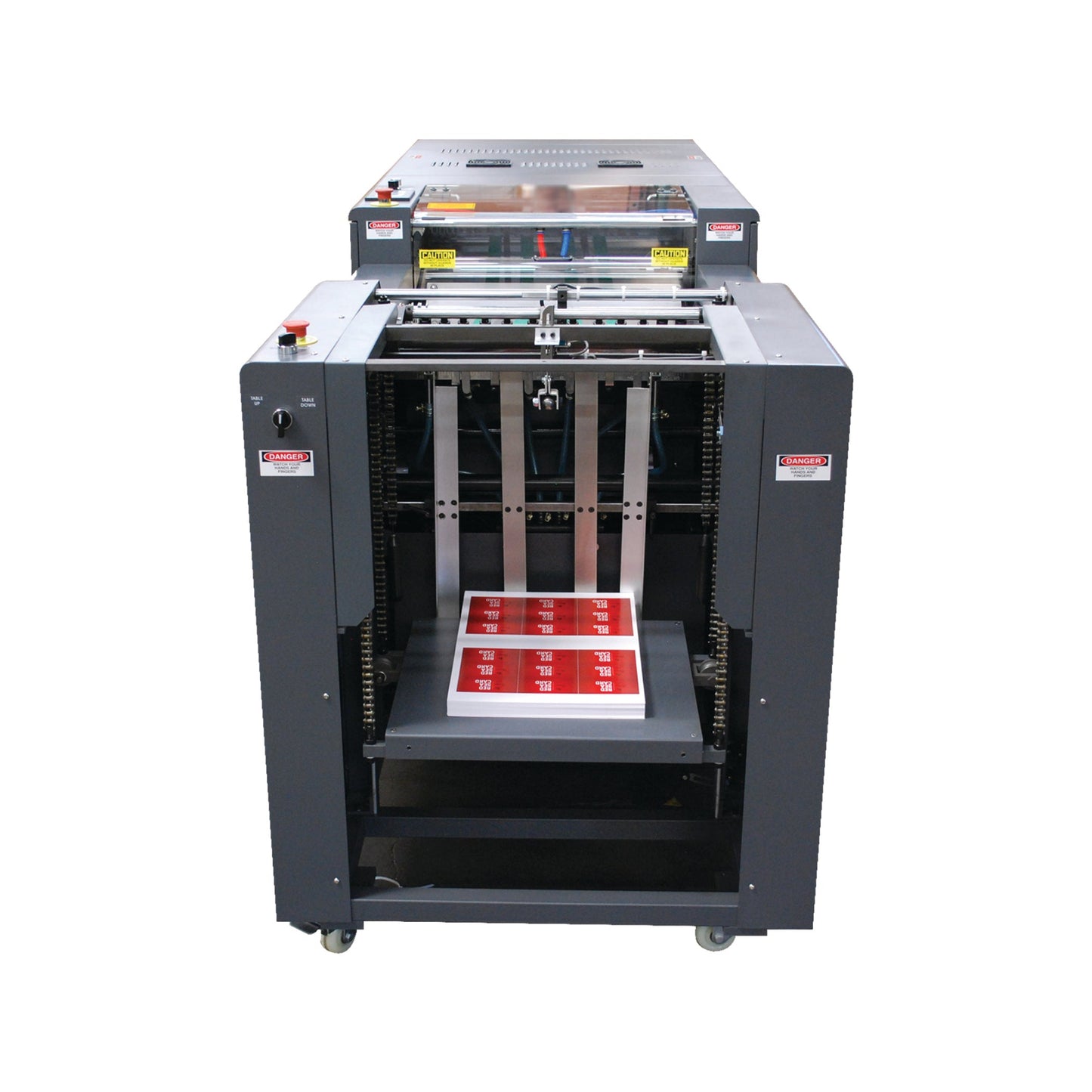

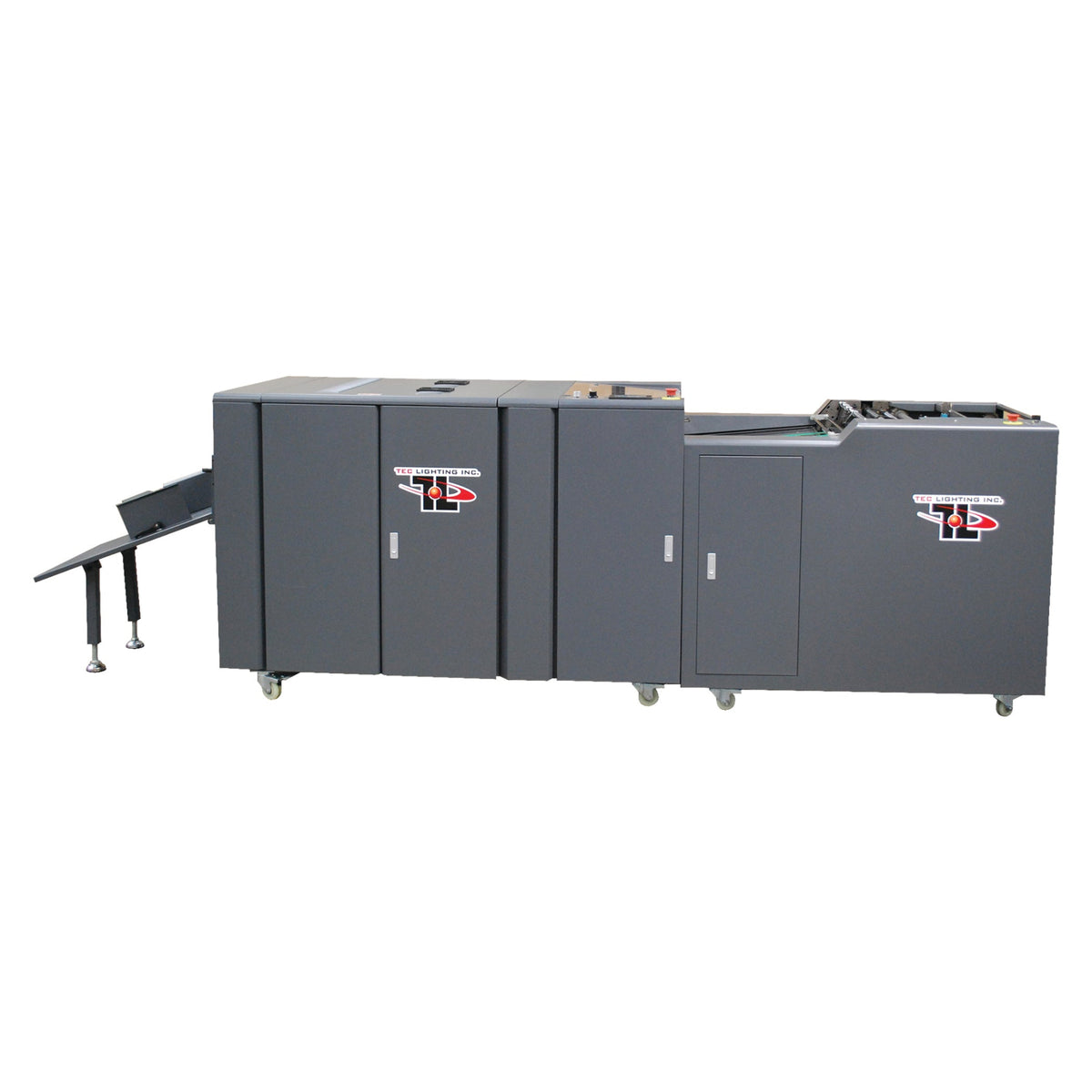

Tec Lighting TruCoat Auto Fed UV Coater
High-speed, automatic UV coating system offering consistent finishes, quick setup, and environmentally friendly operation for commercial print applications.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
The Tec Lighting TruCoat Auto Fed UV Coater is a high-performance, fully automatic UV coating system designed for commercial print environments. It features a three-roller coating system, automatic feeder, and quick-change rollers, delivering consistent, high-quality finishes on substrates including toner-based, offset, and inkjet prints.
Key features
- Three-roller coating system for uniform application
- Automatic feeder with 22" deep pile capacity
- Quick-change textured rollers for gloss, satin, or matte finishes
- Touchscreen interface for easy operation
- Variable intensity IR lamps for optimal curing
- 0 VOC UV coating and wash-up fluid
- All-steel construction for durability
- Modular design allows for optional receding stacker integration
Specifications
| Specification | Details |
|---|---|
| Max Sheet Width | 30" (76 cm) |
| Max Sheet Length | 26" (66 cm) |
| Sheet Thickness | 150-600 GSM |
| Speed | Up to 4,800 sheets per hour |
| Power Requirements | 220V, 3 Phase, 60Hz, 55A |
| Warm-Up Time | Less than 5 minutes |
| Coating Changeover Time | Less than 10 minutes |
| Weight | Approximately 1,700 lbs |
Applications
- High-volume UV coating for commercial print shops
- Finishing for toner-based, offset, and inkjet printed materials
- Enhancing durability and appearance of marketing materials
Benefits
- Consistent, high-quality finishes with minimal setup time
- Versatile coating options: gloss, satin, or matte
- Environmentally friendly with 0 VOC coatings
- Quick and easy maintenance with modular components
- Scalable design accommodates future upgrades
