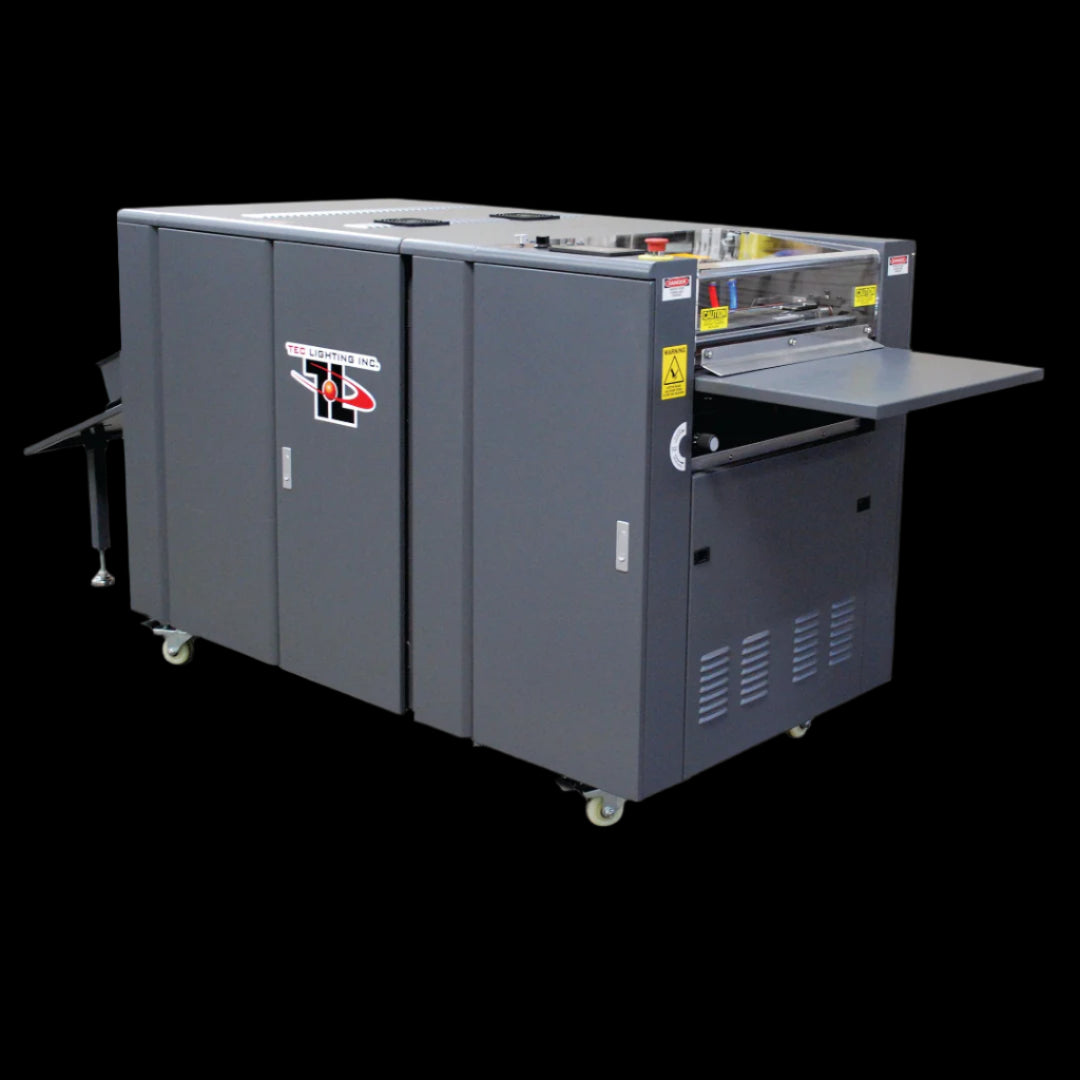

Tec Lighting TruCoat 16" hand-fed UV coater (TRUV-16D)
The TruCoat TRUV-16D by Tec Lighting is a compact, hand-fed UV coating system for short-run and on-demand print finishing. It applies gloss, satin, matte, and soft-touch UV coatings over toner, offset, and inkjet prints. The frame is modular, so automatic feeders and stackers can be added later as volume grows.
Key features
- Applies gloss, satin, matte, and soft-touch UV coatings
- Compatible with toner-based, offset, and inkjet output
- Quick-change textured rollers: change finishes in under 10 minutes
- Touchscreen control panel
- Variable intensity IR curing lamps
- Modular frame with future upgrade paths
- 3-roll coating system with stainless steel doctor blade
- 0 VOC coating and wash-up fluid
- UV-coated documents are fully recyclable
Specifications
| Specification | Details |
|---|---|
| Max Sheet Width | 16" (40 cm) |
| Max Sheet Length | Unlimited |
| Sheet Thickness | 150 to 600 gsm |
| Production Speed | Up to 1,800 sheets/hour or 132 ft/min |
| Power Requirements | 220V, 1 Phase, 60Hz, 35A |
| Dimensions (L x W x H) | 72" x 42" x 50" |
| Machine Weight | 1,235 lbs |
Applications
- Finishing business cards, postcards, brochures, and flyers
- Small to mid-size digital and offset print shops
- On-demand UV coating for short-run and custom print jobs
Benefits
- Coats in under 5 minutes from startup
- Quick roller change for texture and finish swaps
- Compatible with most digital print technologies
- Cost of operation under 1/2 penny per square foot
- Compact, scalable design that grows with production
