Vivid Matrix MX-370 DP Duplex Laminator
Vivid Matrix MX-370 DP Duplex Laminator
Item Number:
370DP
Double Sided Laminating System

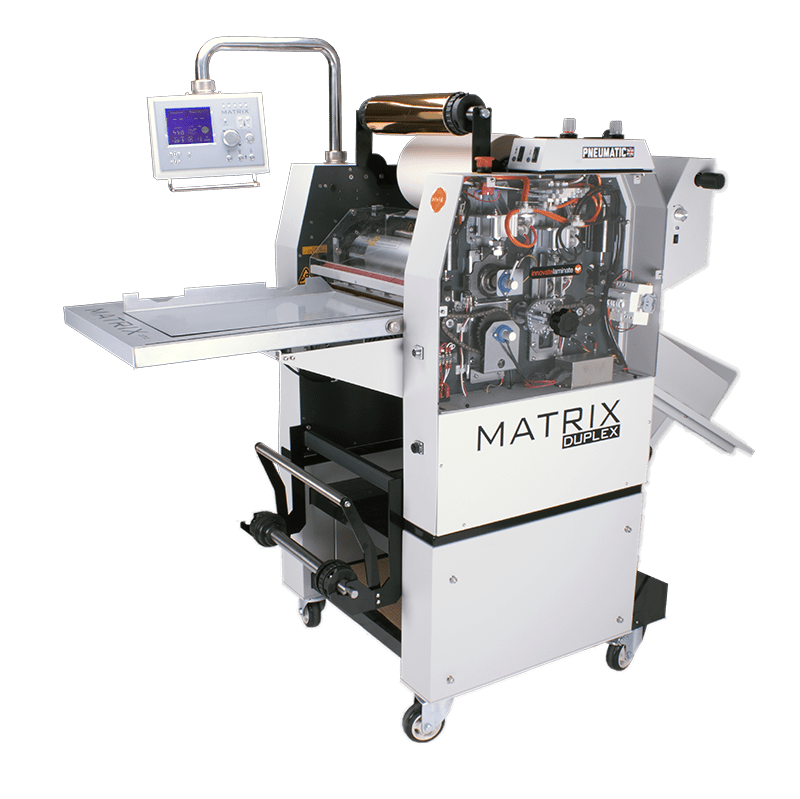

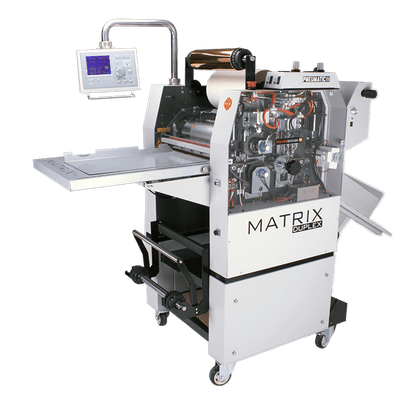

Vivid Matrix MX-370 DP Duplex Laminator
The Matrix MX-370 DP Duplex is a compact production laminator that laminates both sides of the sheet in a single pass while supporting sleeking foils and special effect films. Built for digital print shops, the MX-370 DP reduces turnaround time, elevates finishing quality, and makes premium laminating and foiling workflows cost-effective to bring in-house.
Key Features
- 🔹 One-pass duplex laminating for fast turnaround
- 🔹 Pneumatic pressure system for consistent adhesion
- 🔹 Supports single-sided, double-sided & encapsulation workflows
- 🔹 Compatible with sleeking foils & special effect films
- 🔹 Anti-curl technology ensures flat, stable sheets
- 🔹 Intuitive swing-out control panel with temp & speed adjustment
- 🔹 Automatic sheet separation for continuous operation
- 🔹 Commercial-grade steel rollers for long-term durability
Benefits
- – Bring laminating & foiling in-house for cost savings
- – Produce both sides in one pass for maximum productivity
- – Add premium foil & spot-effect embellishments
- – Generate flat, curl-free sheets ideal for bindery workflows
- – Works with typical digital print stocks from 100gsm+
Applications
- 📇 Business cards & postcards
- 📖 Book covers & jackets
- 🍽️ Menus & durable food-service prints
- 📣 Brochures, flyers & sell sheets
- 🗂️ Presentation kits & premium collateral
Available Options
- – Gloss, matte, soft-touch & anti-scratch laminate films
- – Metallic & color sleeking foils
- – Encapsulation films for rigid, wipe-clean pieces
Ideal for small to mid-sized digital print shops needing high-end finishing in a compact footprint.
Specifications — MX-370 DP
| Specification | Value |
|---|---|
| Max Speed | 10 m/min (33 ft/min) |
| Max Film Width | 340 mm (13") |
| Max Sheet Width | 420 mm (17") |
| Minimum Paper Weight | 100gsm (double-sided) / 135gsm (single-sided) |
| Warm-Up Time | 10 minutes |
| Temperature Range | 0–140°C (32–284°F) |
| Power Requirement | 220–240V, 32A |
| Power Consumption | 4500W |
| Overall Dimensions (W×L×H) | 800 × 1800 × 1400 mm 31 × 71 × 55" |
| Machine Weight | 220 kg (485 lbs) |
Power & Installation
- – Requires dedicated 220–240V, 32A circuit
- – Pneumatic system requires suitable air source
