Baum 714XLT Ultrafold 1st Station
Maximize folding efficiency with the BAUM ULTRAFOLD 714XLT. High-speed, versatile air-feed folder designed for precision folding in print and mail operations.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

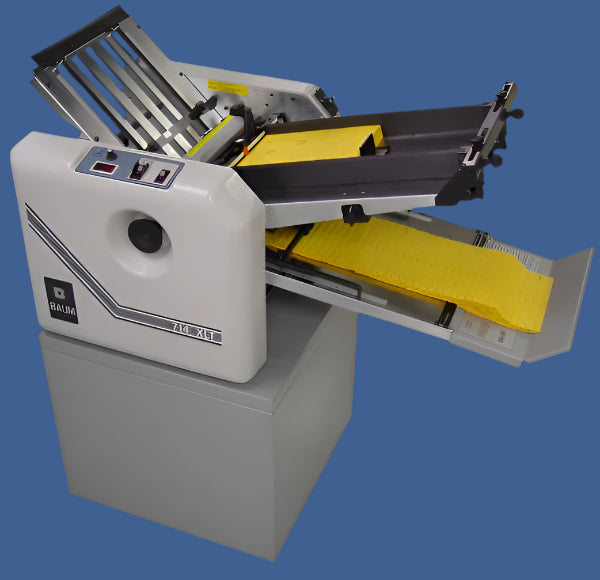

The BAUM ULTRAFOLD 714XLT is a compact, air-feed tabletop folder that brings the rugged reliability of larger Baumfolder models into a space-efficient design. Engineered to handle coated stocks, high-speed copier paper, and laser-printed materials, this machine is ideal for commercial, in-plant, and digital print finishing environments.
Key Features
🔹 Quiet Pump – Operates efficiently with minimal noise, making it suitable for office and production environments.
🔹 Toner-Resistant Fold Rollers – Urethane-coated rollers prevent toner build-up, ensuring clean, consistent folding.
🔹 Adjustable Scoring Assembly – Provides precise scoring to accommodate different stock types.
🔹 Extended Delivery – Offers 30% more accumulation space to handle higher output.
🔹 Automatic Fold Roller Tensioning – Maintains uniform tension for reliable, precise folds.
🔹 Optimized for Laser-Printed & High-Speed Copier Stock – Handles coated and uncoated stocks with ease.
🔹 Rack & Pinion Gear Side Guides – Keeps sheets aligned and square for consistent feed accuracy.
🔹 Easy-Adjust Feed Caliper – Enables quick adjustments for various paper weights and sizes.
🔹 Built-In Circuit Breakers – Enhances machine protection and operator safety.
🔹 Integrated Counter – Tracks the number of folded sheets, aiding in production efficiency.
🔹 DC Drive System – Ensures efficient and reliable performance.
🔹 Sealed Ball Bearings – Requires no lubrication, reducing maintenance time.
🔹 Customizable Air & Suction Controls – Allows for precise adjustments based on stock type.
🔹 Side-Blow & Front-Blow Adjustment – Enhances airflow control, ensuring smooth feeding.
🔹 Removable Slitter Shafts – Provides easy access for maintenance and cleaning.
🔹 Polyurethane Fold Rolls – Designed for durability and longevity.
🔹 Gear-Driven Rolls – Prevents slippage for consistent, high-speed folding.
🔹 UL Approved – Meets safety and electrical standards for reliable operation.
🔹 Heavy-Duty Construction – Built to withstand demanding production environments.
Specifications
| Specification | Details |
|---|---|
| Max. Sheet Size | 14" x 20" (35.56 x 50.8 cm) |
| Min. Sheet Size | 3" x 5" (7.62 x 12.7 cm) |
| Speed | Up to 35,000 sheets per hour (Letter/A4 paper) |
| Electrics | 110V / 1PH / 60Hz or 220V / 1PH / 50Hz |
| Machine Dimensions | 27” H x 49” L x 24.5” W |
| Net Weight | 310 lbs (Crated: 345 lbs) |
| Power Consumption | 1500 watts |
| Pump Amperage | 13.6 amps |
| Fold Roll Material | Polyurethane or Combination Polyurethane/Steel |
| Fold Roll Diameter | 1.5” |
| Operating Voltage | 110V / 60Hz |
| Warranty | 3 years on parts |
Optimized Applications
📑 Commercial Printing – Ideal for brochures, mailers, and folded inserts.
📦 Manufacturing & Warehouse Operations – Processes instruction sheets, packing slips, and order forms.
🏢 Corporate & Office Use – Perfect for reports, manuals, and marketing collateral.
📖 Educational Institutions & Churches – Efficiently folds newsletters, bulletins, and informational booklets.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
You might also need
Pair your equipment with the supplies and finishing gear that complete the workflow.

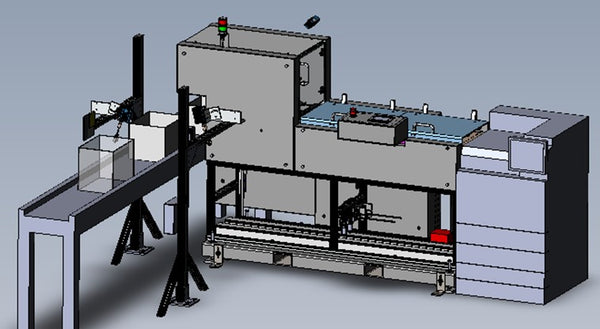

Baumfolder Century Print/Fold/Top Insert Solution
