Baum 714XAPA AutoFold Paper Folder
Streamline folding with the Baum 714XAPA. High-speed, automated air-feed folder with touch controls, job memory, and jam detection for precision finishing.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

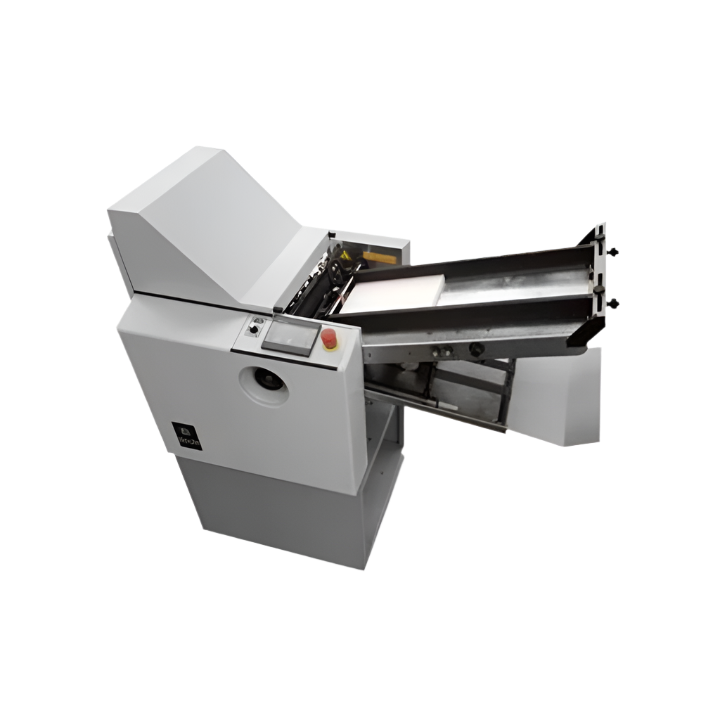

The Baum 714XAPA AutoFold Paper Folder is a fully automated tabletop air feed folder, engineered for digital print environments. Designed for high-precision folding, this robust machine combines Baumfolder’s industry-leading technology with easy operation, making it an essential tool for professional print finishing.
Key Features
🔹 Feeds & Folds Long Sheets – Handles 25.5-inch long sheets, perfect for tri-fold brochures and larger formats.
🔹 20-Job Memory Storage – Stores custom fold settings for quick recall and efficiency.
🔹 PLC Touch Screen Control Panel – Intuitive color touchscreen with pictograph-based navigation for effortless operation.
🔹 Batch Counter Functionality – Counts up or down, ensuring accurate tracking of folded sheets.
🔹 BAUM Turbo Wheel Air/Vacuum Feeder – Smooth, jam-free feeding, optimized for digital and coated stocks.
🔹 Non-Marking Flip Deflector Fold Plates – Prevents toner buildup, ensuring crisp, professional folds.
🔹 Independent Speed Control – Motorized delivery stacker with adjustable speed for optimal stacking.
🔹 Expandable Folding Options – Can be paired with the BAUM 714XLT 2nd Station for right-angle folding.
🔹 Diagnostic Messages & Fault Detection – Real-time troubleshooting for maximized uptime.
🔹 Jam Detection Sensors – Automatically detects misfeeds, preventing costly interruptions.
🔹 Multi-Language Interface – Select English, Spanish, French, or German.
🔹 Metric & Imperial Measurement Options – Switch between inches and centimeters as needed.
🔹 Heavy-Duty Construction – Built with Baumfolder’s renowned durability for long-term performance.
Specifications
| Specification | Details |
|---|---|
| Max. Folder Speed | 7,200 inches per minute |
| Max. Sheet Size | 14" x 25.5" (35.5 x 64.7 cm) |
| Min. Sheet Size | 3" x 5" (7.6 x 12.7 cm) |
| Max. Fold Size | 13.5" (using #1 or #2 plate) |
| Min. Fold Size | 2" |
| Paper Weight Range | 16 lb bond (60 gsm) to 75 lb cover (203 gsm) |
| Feeder Pile Height | 2 inches |
| Fold Roll Diameter | 1.5 inches |
| Fold Roll Material | Urethane |
| Jam Detection | Yes |
| Diagnostic Messages | Yes |
| Slitter Shaft | Fixed |
Download Scoring/Perforating/Slitting Guide Here
Download Installation/Parts Manual Here
Download Set Up Instructions Here
Electrical Requirements
🔹 Operating Voltage: 110/1/60 (NEMA 5-20R receptacle required)
🔹 Power Consumption: 20 amps
Dimensions & Weight
đź“Ź Overall Dimensions (with cart): 56" L x 30" W x 54" H
âš– Net Weight (with cart): 450 lbs (204 kg)
Optimized Applications
📄 Digital Printing & Commercial Print Shops – Perfect for brochures, direct mail, flyers, and newsletters.
🏢 Corporate & Office Environments – Ideal for financial reports, business presentations, and office mailers.
📦 Manufacturing & Warehouse Operations – Folds invoices, packing slips, and product inserts.
📖 Educational & Nonprofit Organizations – Efficient for church bulletins, school notices, and event programs.
