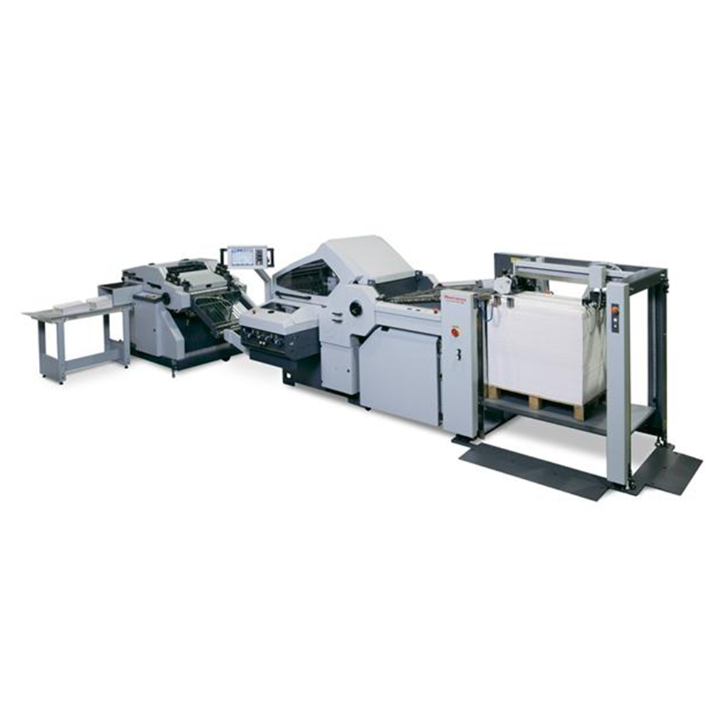

Standard Horizon Horizon AFC-746F Paper Folder

Computerized Suction Feed Cross Folder

Intelligent automation for ultimate usability. The AFC-764S/746D adds efficiency to the folding process.

The Horizon AFC-746F Paper Folder includes advanced set-up automation through a user-friendly 10.4” color touch-screen control panel that displays all common fold formats and sheet sizes for easy selection. The folder features quick changeover and fully automated setup with up to 45 automated adjustments including in-feed, roller gap, buckle fold, and knife-fold sections. The AFC-746F is very flexible – with 6 buckle plates + 1st knife + 2 buckles under the knife, one buckle standard + 2nd knife.

It handles sheet sizes up to 29.1” x 43.3” and as small as 8.3” x 8.3” with programmable memory for up to 200 different jobs. It includes pile feeder with suction head, and has an optional pallet or continuous feeder for maximum application flexibility. Sheet sizes up to 51” long can be fed with the continuous feeder. The AFC-746F also contains a new ergonomically friendly slitter shaft removal system, where the operator can remove the perforation shaft automatically for easier blade setting – a quick release lever, internal elevator, and slide out carriage highlight this new feature. A new power stop system, where the transport belt at the knife section selectively slows/stops as the sheet reaches the knife stopper, eliminates bounce-back and damage to the sheet.

Standard Horizon Horizon AFC-746F Paper Folder Features

The folder is easy and intuitive to set-up, even without a skilled operator, thanks to the intelligent automation and user-friendly design.

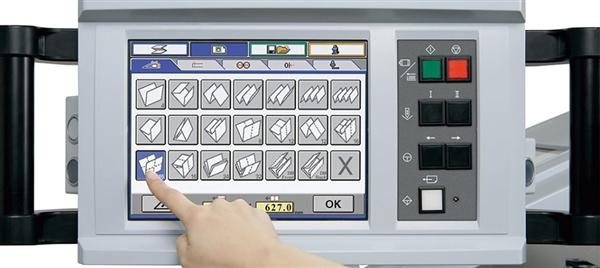

20 fold patterns are automatically set by inputting the sheet size and selecting a fold pattern through the large color touchscreen.
Equipped with 6 buckles, 1 cross knife and 2 buckles below the knife to support a wide variety of fold patterns.

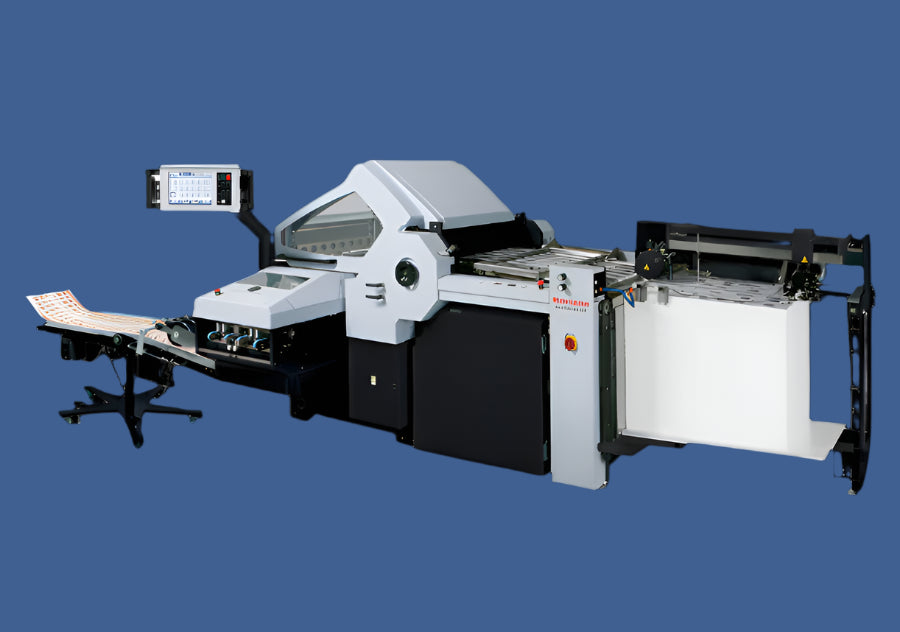

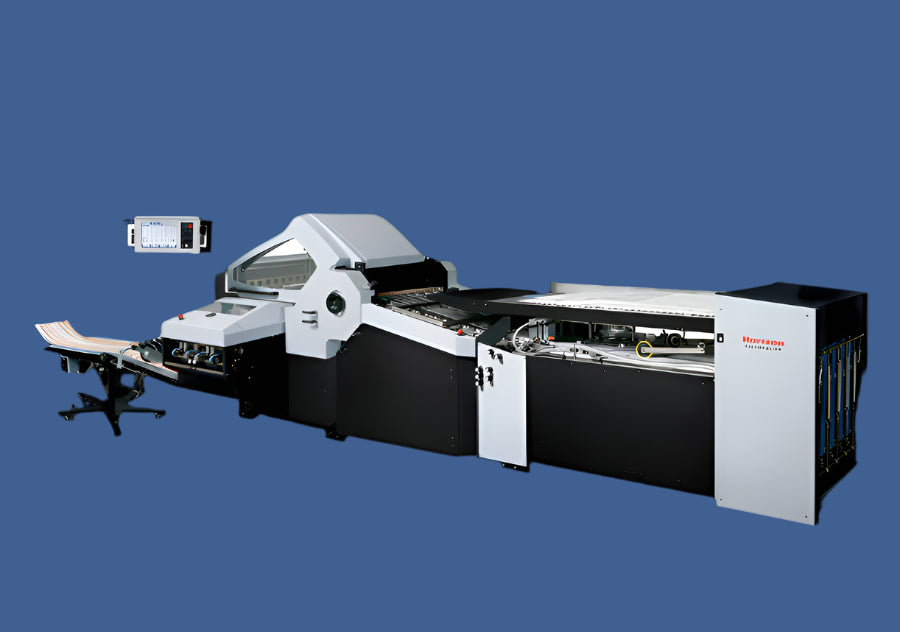

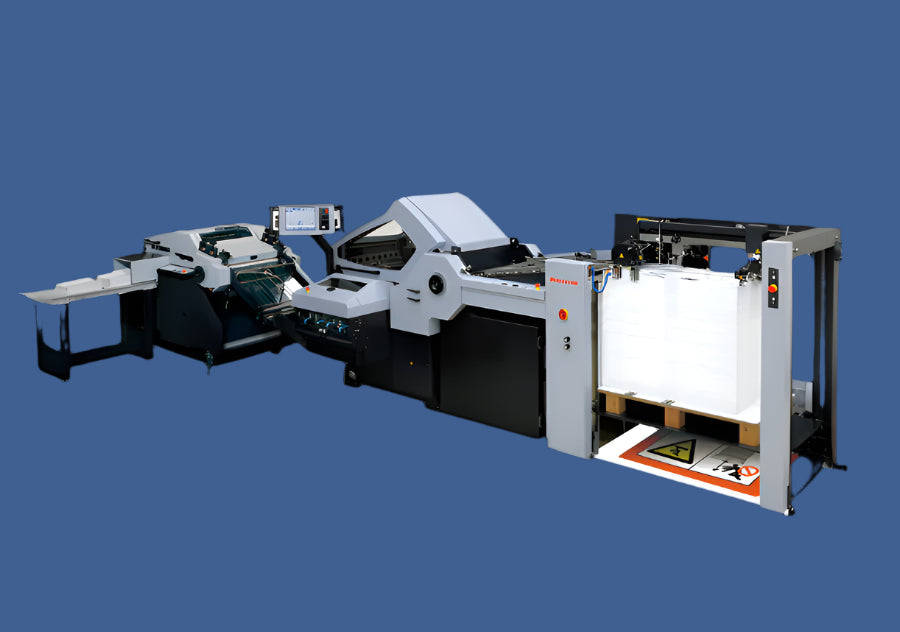

3 different types of feed units can be selected for various work environments: Flat Pile Feeder, Pallet Pile Feeder and Round Pile Feeder.
High-speed production of 36,000 sheets/hr. (A4 - Parallel Fold) or 11,000 sheets/hr. (625W x 880L mm / 24.6” x 34.6” - 16-page Cross Fold).
Fold rollers are constructed with a combination of steel and soft polyurethane for superior grip and sharp, consistent folding.
The AFC-746S/746D can be enhanced with JDF workflow from upstream to the postpress using pXnet bindery control system.

Standard Horizon Horizon AFC-746F Paper Folder Specifications

Up to 42,000 Sheets/hr.
Sheet sizes up to 29" x 51"
20 Pre-set Fold Patterns
6 Fold Plates
User Friendliness
Advanced Automation
JDF Workflow Compatibility
Color LCD Touchscreen

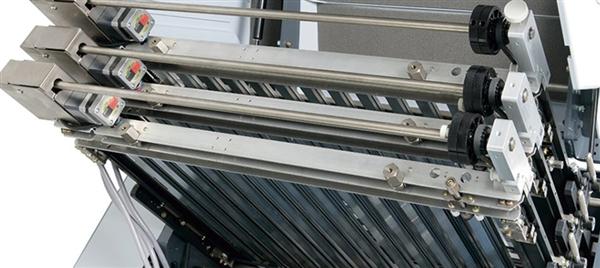

Buckle Fold
Knife Fold
Perforation

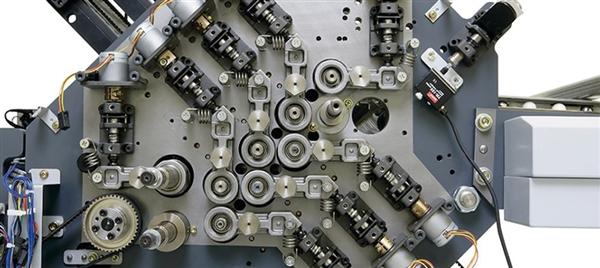

Folding Rollers

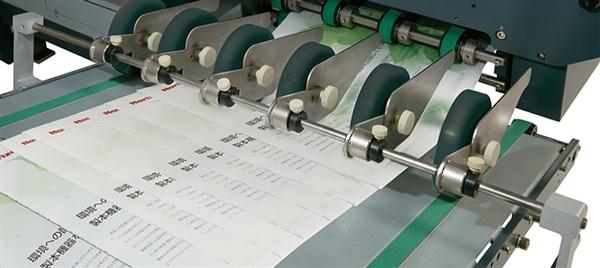

Delivery Conveyor
Sheet Transportation
Suction Head
Feed Rotor

Machine Structure		6KTTL (6 Buckles + 1st Fold Knife + 2 Buckles below Knife*1 + 2nd Fold Knife)
Sheet Size		w/ Flat Pile Feeder	738(W) x 1,100(L) mm (29.055” x 43.310”)
			210(W) x 210(L) mm (8.270” x 8.270”)
		w/ Pallet Pile Feeder	738(W) x 1,100(L) mm (29.055” x 43.310”)
			210(W) x 297(L) mm (8.270” x 11.695”)
		w/ Round Pile Feeder	738(W) x 1,300(L) mm (29.055” x 51.180”)
			210(W) x 148(L) mm (8.270” x 5.830”)
Sheet Weight Range		35 to 220 gsm
		Art/Coated Paper 50 to 232 gsm
Knife Fold Size	1st Knife	Max. 738(W) x 550(L) mm (29.0” x 21.6”)
		Min. 160(W) x 100(L) mm (6.3” x 4.0”)
	2nd Knife	Max. 550(W) x 360(L) mm (21.6” x 14.1”)
		Min. 160(W) x 100(L) mm (6.3” x 4.0”)
Max. Pile Height		w/ Flat Pile Feeder	750 mm (29.5”) [within 600 kg (1,323 lb)]
		w/ Pallet Pile Feeder	1,200 mm (47.2”) (pallet included) (Min. height of pallet is 120 mm / 4.8”) [within 1,000 kg (2,205 lb)]
Belt Speed		30 to 230 m (99 to 754 ft )/min. [Knife Fold : 180 m (590 ft )/min.]
Production Speed		36,000 sheets/hr. [A4 (8.5” x 11”) Parallel Fold]
		w/ Flat Pile Feeder	750 mm (29.5”) [within 600 kg (1,323 lb)]
		w/ Pallet Pile Feeder	1,200 mm (47.2”) (pallet included) (Min. height of pallet is 120 mm / 4.8”) [within 1,000 kg (2,205 lb)]
Standard Fold Roller		Combination of Soft Polyurethane Foam Rubber and Steel Roller
Roller Gap Adjustment		Insert the instructed number of sheets into the gap adjust lever.
Automatic Setup		Side Lay Guide, Feed Table Guide, 1st to 6th Buckles, K2 Buckle, 1st and 2nd Knife Stoppers
Fold Patterns		Parallel Fold, Short Fold, Open Gate Fold, Accordion Fold, Zigzag (4 panel) Fold, Zigzag (5 panel), Fold, Zigzag (6 panel) Fold, Zigzag (7 panel) Fold, Letter Fold, Roll Fold, Double Parallel Fold, 8-page Cross Fold, 12-page Transformation Fold, 12-page Cross Fold, 16-page Transformation Fold (1), 16-page Cross Fold, 16-page Transformation Fold (2), 24-page Cross Fold, DL Fold (Letter), DL Fold (Accordion)
Job Memory		200 Jobs
Voltage/Frequency		3-Phase 200/220/400V, 50/60Hz
