Standard Hunkeler
DP8 Dynamic Perforator
DP8 Dynamic Perforator
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
The DP8 Dynamic Perforator is an advanced high-speed perforating and punching solution designed for seamless integration into transactional, direct mail, and promotional print workflows. Engineered for precision and flexibility, the DP8 allows for on-the-fly perforating, scoring, and punching, enhancing efficiency and reducing production bottlenecks.
Access a case study on this system here!
Key Features
🔷 High-Speed Perforating: Operates at speeds up to 720 feet per minute (fpm) for rapid processing.
🔷 High-Speed Punching: Handles punching at speeds of up to 500 fpm, ensuring smooth production.
🔷 Wide Web Width Compatibility: Supports web widths up to 20.5 inches, accommodating diverse applications.
🔷 Versatile Format Length: Processes materials ranging from 5.5 inches to 62 inches in length.

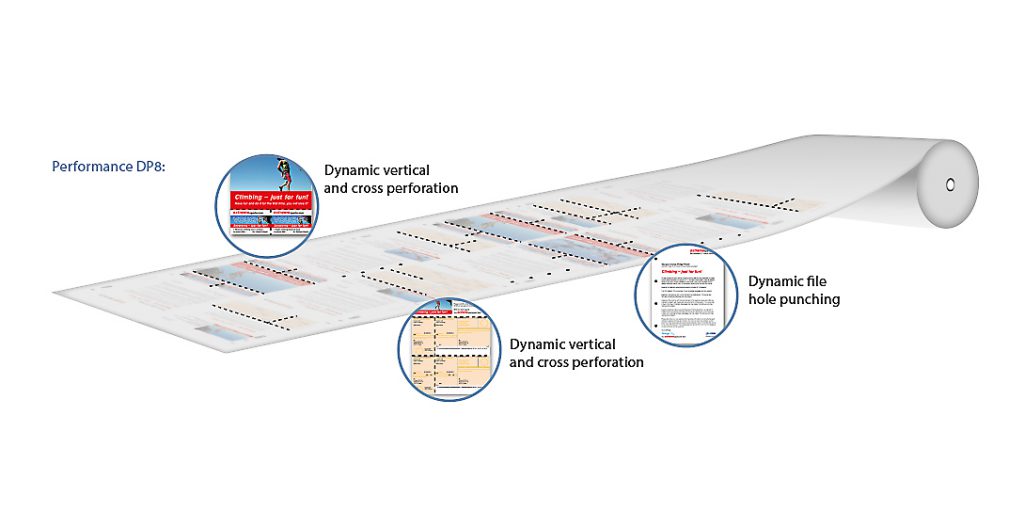

🔷 Dynamic Processing Capabilities: Enables dynamic linear & cross perforating, cross scoring, static linear scoring, and punching within a single module.
🔷 Flexible Paper Handling:
📄 Perforating: Supports 40 to 200 gsm stocks.
📄 Punching: Handles 60 to 120 gsm papers.
Specifications
| Specification | Details |
|---|---|
| Perforating Speed | Up to 720 feet per minute (fpm) |
| Punching Speed | Up to 500 feet per minute (fpm) |
| Web Width | Up to 20.5 inches |
| Format Length | 5.5 inches to 62 inches |
| Paper Weights (Perforating) | 40 to 200 gsm |
| Paper Weights (Punching) | 60 to 120 gsm |
Optional Enhancements
✔ Web Inspection WI8: Detects and removes defective prints for flawless output.
✔ Web Cleaner PEM/iPEM: Maintains dust-free media for consistent print and finishing quality.
✔ Edge Trim & Center Cutting: Adds precision trimming for refined end-products.
✔ Shingle Belt Delivery & High-Capacity Stacker: Ensures efficient output handling.
Optimized Applications
📑 Transactional Documents – Ensures high-accuracy perforations for invoices, statements, and billing forms.
📩 Direct Mail – Enhances mailing campaigns with tear-off response forms and coupons.
📖 Print-on-Demand – Supports short-run, custom-printed materials requiring dynamic perforation and punching.
🎟 Promotional Vouchers & Tickets – Creates custom perforations for easy-to-tear offers, admission tickets, and gift certificates.
The DP8 Dynamic Perforator is a powerful addition to any high-speed finishing environment, providing seamless integration, unmatched versatility, and precision-driven performance.
