Challenge MS-5 Multi-Spindle Paper Drill

Challenge MS-5 Multi-Spindle Paper Drill

Item Number: MSDrillSeries

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

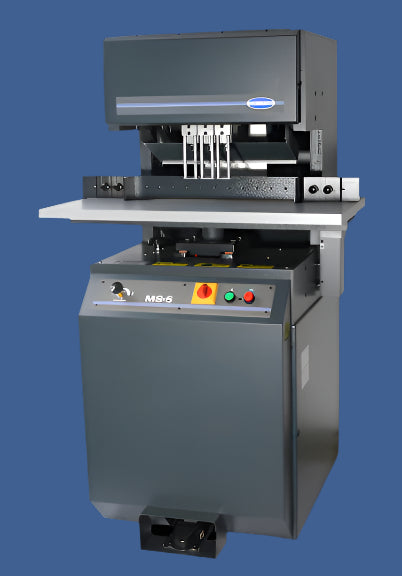

This versatile paper drill has a 2.5" drilling capacity and can be customized with 3 to 10 drilling heads to increase productivity. Designed for efficiency, it offers easy setup and simple operation. With adjustable settings for optimal quality and the ability to adjust the table speed, this drill is perfect for a variety of stocks. Built to last, it streamlines your job process and ensures timely completion of tasks.

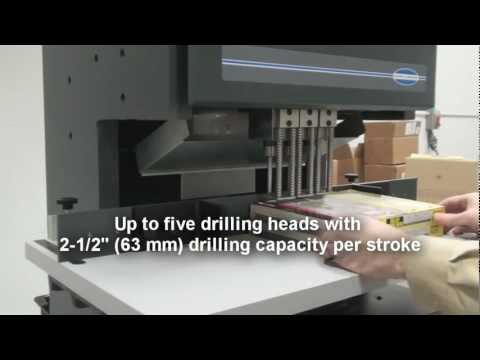

Challenge MS-5 Multi-Spindle Paper Drill Features

The MS-5 is designed and engineered by Challenge, which introduced the first paper drill in the Graphic Arts industry in the early 1930’s. Today, the MS-5 builds on our expertise with drilling technology. The easily accessible control panel and powerful hydraulic operation are designed to reduce operator fatigue and increase job production. The MS-5 is solidly built, and ready to finish your jobs effectively. Contact your authorized Challenge products dealer today for more information.
  • Side guide adjustment
  • Backgauge adjustment
  • Easy drill length adjustment
  • 2”/ 5.1 cm hollow drill bits available in 13 sizes
  • 2-1/2”/ 6.4 cm hollow drill bits available in 4 sizes
  • Hollow drill bits also available with teflon coating
  • Optional narrow heads available (Necessary when drilling most medical forms)
  • Cast iron and steel construction
  • Three drill heads and drilling blocks standard
  • Two backgauge filler blocks
  • Manual drill sharpener
  • Chip disposal bag
  • Hydraulic power, foot pedal activated
  • Automatic table return
  • Up to 5 holes in a single stroke
  • Set-up changes are quick&simple
  • OPTIONAL EQUIPMENT
  • Additional drill heads
  • Narrow (1-3/8”/35mm) drill heads center-to- center

Challenge MS-5 Multi-Spindle Paper Drill Specifications

SPECIFICATIONS

Number of Drill Heads 2 to 5
Drill Sizes Available (2" capacity) 1/8" to 1/2" / 3 to 13 mm
Drill Sizes Available (2-1/2" capacity) 1/4" to 1/2" / 6 to 13 mm
Center to Center Distance Maximum 15" / 38 cm
Center to Center Minimum (standard) 1-7/8" / 48 mm
Center to Center Minimum (optional narrow heads) 1-3/8 / 35 mm
Maximum Drilling Capacity 2-1/2" / 63 mm
Strokes per Minute (adjustable) Up to 18
Backgauge Adjustment 0 to 5" / 0 to 13 cm
Vertical Adjustment of Individual Heads 1/4" / 6 mm
    DIMENSIONS
      Table Size 17-3/4" x 34" / 45 x 87 cm
      Table Height 37" / 94 cm
      Overall Height 56" / 142 cm
      Floor Space Needed 36" x 36" / 92 x 92 cm
      Net Weight (approximate) 830 lbs / 374 kg
      Shipping Weight (approximate) 910 lbs / 410 kg
        ELECTRICAL
          Standard -

          1 Phase, 60 Hz, AC. Pump: 1/2 HP. Spindle Motor: 1-1/2 HP.
          208/230 Volts, 18 Amps (service size 30 Amps)
          Optional -

          3 Phase, 50 Hz, AC. Pump: 1/2 HP. Spindle Motor: 1-1/2 HP.
          208/230 Volts, 12 Amps (service size 20 Amps)
