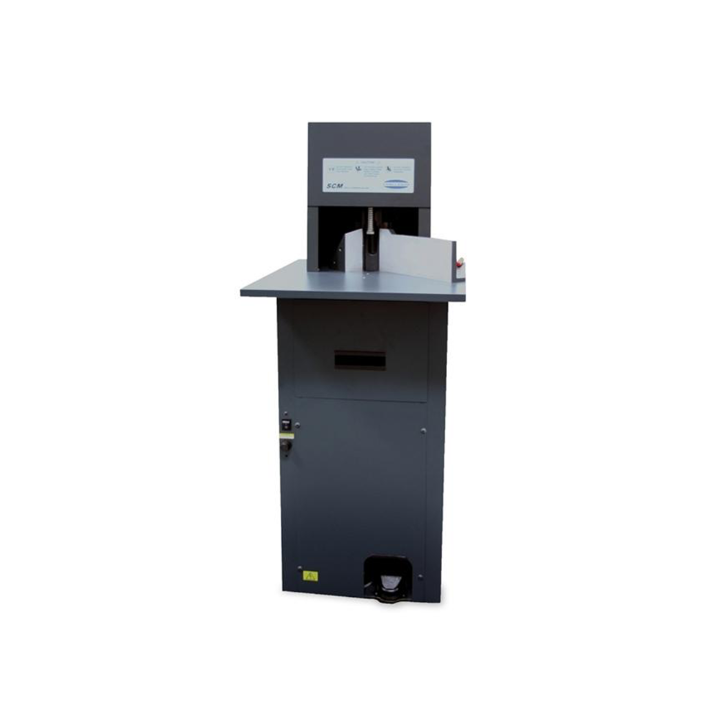

Challenge SCM hydraulic corner rounding machine
Challenge SCM hydraulic corner rounding machine, $7,065 from Mid-State Litho. Four inch stack height, foot-pedal operation, corner radii from 1/8 inch to 5/8 inch. Authorized Challenge dealer with cornering dies in stock and factory-trained service.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Challenge SCM hydraulic corner rounder. Hydraulic corner-rounding for production card, booklet, and cover cornering with Challenge factory dies and knives.
Overview · Specifications · Why Mid-State Litho · Related · Request a quote
Overview
The hydraulic SCM is Challenge's production corner rounder for shops running higher card and booklet corner volumes than a manual unit can sustain. Die and knife changes support common commercial radii.
We stock Challenge cornering knives and dies, including the 1/8 inch cornering die, the 1/4 inch cornering die, and the 3/8 inch cornering die. Confirm radius and stock thickness on the quote before you order tooling.
Single Cornering Machine - Hydraulic Model High-production, hydraulic-powered corner rounding for large-volume print and packaging workflows.
Industrial steel construction, hands-free foot pedal, and clean chip management deliver consistent, professional results shift after shift.
Challenge Machinery builds this equipment in Norton Shores, Michigan. Mid-State Litho is the authorized Michigan dealer (about 30 years).
Key features
- Hydraulic production corner rounding
- Challenge factory dies and knives
- Suits cards, booklets, and cover corners
- Dealer-stocked tooling and service
Specifications
| Corner Sizes | 1/8″, 1/4″, 3/8″, 1/2″, 5/8″; straight knife (1-1/4″ diagonal max.) |
| Stack Height | 4″ (10 cm) |
| Table Depth / Width / Height | 24″ / 20-1/4″ / 36″ (61 / 51.5 / 91 cm) |
| Overall Height | 52″ (132 cm) |
| Floor Space Required | 24″ × 20-1/4″ (61 × 51.5 cm) |
| Net / Shipping Weight | 250 lb (113 kg) / ~325 lb (147 kg) |
| Power Requirement | 115 V, 60 Hz, 15 A |
Specs can vary by configuration and options. Confirm against the factory sheet for the serial and options you order.
How to choose a corner rounder
Mid-State Litho carries ten corner rounding machines across four brands. Three questions sort them.
Volume and how the cut is driven. A manual corner rounder is a lever and an operator. The hydraulic SCM on this page is foot-pedal driven, which keeps both hands on the stack and makes the cut repeatable through a long run. Shops rounding cards and booklet covers daily buy hydraulic. Shops rounding occasionally do not need to.
Stack height. This machine takes 4 inches. That figure, more than any other, decides how many passes a job becomes.
Radius range and tooling. Corner radius is set by the die and knife, not by the machine. The SCM runs 1/8 through 5/8 inch plus a straight diagonal knife. Confirm the radius your customer specifies and the stock thickness before the machine is quoted, because tooling is a separate line.
The ten machines Mid-State Litho carries are the Challenge SCM in hydraulic and manual, the Akiles Diamond 1, 5, 6, and 7, the Graphic Whizard PT CR607, and the Lassco CR-50P, CR-50XP, and CR-55.
Why buy from Mid-State Litho
Mid-State Litho is an authorized Challenge Machinery dealer for about 30 years. Challenge is based in Norton Shores, Michigan, about two hours from our Grand Blanc showroom and service depot. We stock knives, sticks, drill bits, and wear parts; install and train on site; and service equipment across Michigan and the Great Lakes. Call 1-800-343-4231 or request a quote. Browse Challenge Machinery.
Mid-State Litho is an authorized dealer for Challenge Machinery equipment and has sold and serviced print finishing equipment since 1984, from Michigan, across the Great Lakes region.
Tooling is stocked, not special-ordered. Cornering dies and knives for the SCM are on the shelf, which matters because a corner rounder without the right radius is a machine that cannot run today's job.
Factory-trained service is local, with installation and operator training on equipment purchases.
Financing is available, so a $7,065 machine can be approved as a monthly number.
Frequently asked questions
What corner radii does the SCM cut?
Standard corner sizes are 1/8, 1/4, 3/8, 1/2, and 5/8 inch, plus a straight knife with a 1-1/4 inch diagonal maximum. Dies and knives change over for different radii.
How thick a stack can it round?
4 inches (10 cm).
What is the difference between the hydraulic SCM and the manual SCM?
Both are Challenge single cornering machines cutting the same radii. The hydraulic model is foot-pedal activated for hands-free, repeatable operation at higher volume. The manual SCM is the right choice at lower volume. Mid-State Litho carries both.
Do you stock the dies and knives?
Yes. Mid-State Litho stocks Challenge cornering dies in 1/8, 1/4, and 3/8 inch and Challenge cornering knives in 1/4 and 3/8 inch. Confirm your radius and stock thickness on the quote before ordering tooling.
How does it ship?
It ships freight. The machine has a 24 by 20-1/4 inch footprint and stands 52 inches overall. Mid-State Litho quotes freight at checkout, delivers, installs, and trains your operators.
