DigiCoater Pro 400 HD-LED-UV Flat Sheet Coater
Protect prints with the DigiCoater Pro 400 HD-LED-UV. Fast, cost-efficient UV coating for vibrant, durable finishes on business cards, brochures, and more.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

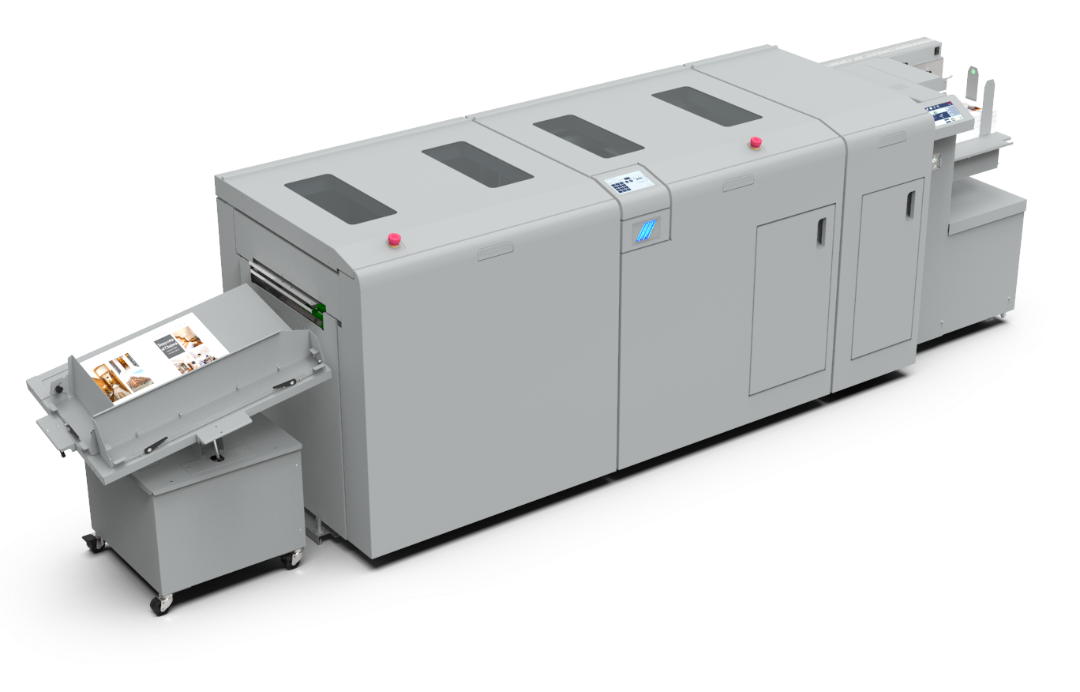

The DigiCoater Pro 400 HD-LED-UV is an advanced UV coating system designed to enhance, protect, and add value to digital and litho-printed sheets. This state-of-the-art coater delivers a vibrant finish, improves rub resistance, and provides cost-efficient UV coating, making it an ideal alternative to lamination for high-quality print applications.
Key Features
🔹 Superior Finish & Protection – Enhances printed colors while offering rub resistance, making coated documents more durable for handling and post-processing.
🔹 Efficient LED-UV Curing – Air-cooled HD-LED-UV technology eliminates heat-related distortion, reduces power consumption, and extends LED lifetime up to 20,000 hours.
🔹 Low Coating Usage – Requires only 2 to 5 g/m², ensuring cost-effective operation with minimal waste.
🔹 High-Speed Production – Adjustable speeds from 65” to 147” per minute, with a high-speed option available for increased throughput.
🔹 Duplex Coating Option – Available for one-pass double-sided coating.
🔹 Advanced Feeding Options – Compatible with automatic feeding and stacking units to streamline production.
🔹 No Odors or Substrate Scorching – Cold LED-UV curing eliminates unwanted smells and ensures consistent sheet integrity.
Technical Specifications
| Specification | Details |
|---|---|
| Paper Size (Min) | 3.9” x 10” |
| Paper Size (Max) | 15” x 28.5” |
| Supported Media | 150 - 600 gsm |
| Production Speed (LED) | 65” - 147” per minute (High-speed option available) |
| Lamp Technology | Air-Cooled LED |
| LED Lifetime | 20,000 hours |
| IR Station | Optional |
| HD Function / Module | Optional |
| Applied Coating | 2 - 5 g/m² |
| Voltage | 3 x 400 V + N + G (EU) |
| Amperage | 20 amp - 400 V (EU) / 32 amp |
| Air Knife | Standard |
| Certifications | CE - ETL - UL/ULC (in progress) |
Applications
📜 Greetings Cards – High-gloss or matte coatings enhance visual impact and durability.
📚 Photobooks – Protects pages and ensures a premium feel.
📆 Calendars – Adds a professional finish to printed calendars.
📖 Brochures – Enhances and protects marketing materials.
💳 Business Cards – Produces high-quality, scuff-resistant finishes.
Feeding Options
âś” VFX Feeder
- Capacity: Up to 5,400 sheets
- Dual Tray Configuration – Enables continuous feeding
- Max Sheet Size: 14” x 26”
- Stock Support: Up to 350 gsm
âś” VFL Feeder
- Capacity: Up to 2,000 sheets
- Adaptive Fan Control – Ensures precise feeding
- Max Sheet Size: 15” x 51” (15” x 28” when connected to DigiCoater Pro 400)
- Stock Support: Up to 600 gsm (dependent on configuration)
The DigiCoater Pro 400 HD-LED-UV is a versatile, high-speed solution for UV coating digital prints, offering enhanced durability, superior finishing, and cost-effective performance. Ideal for commercial printers, print shops, and packaging applications, it delivers unmatched efficiency and quality.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
