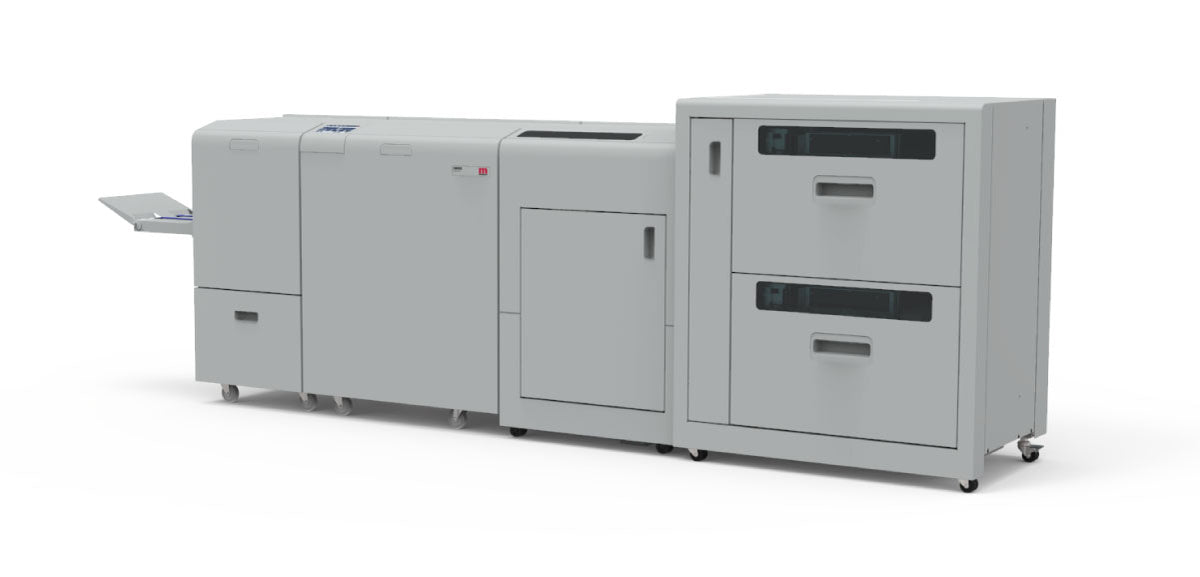

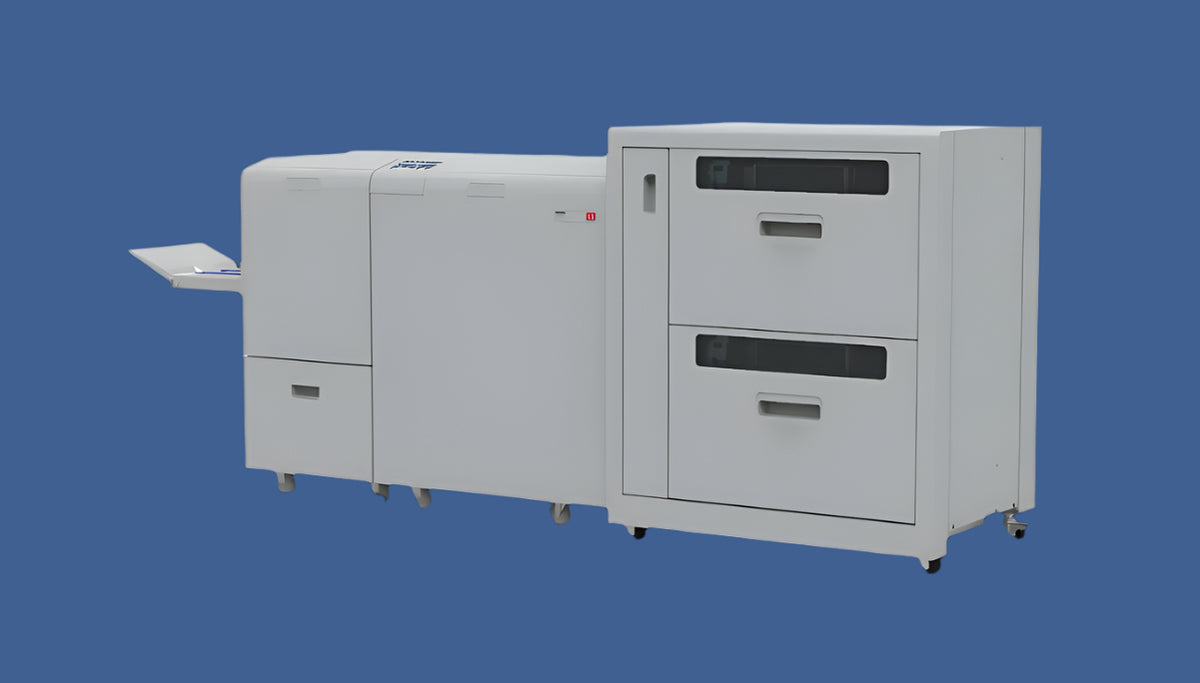

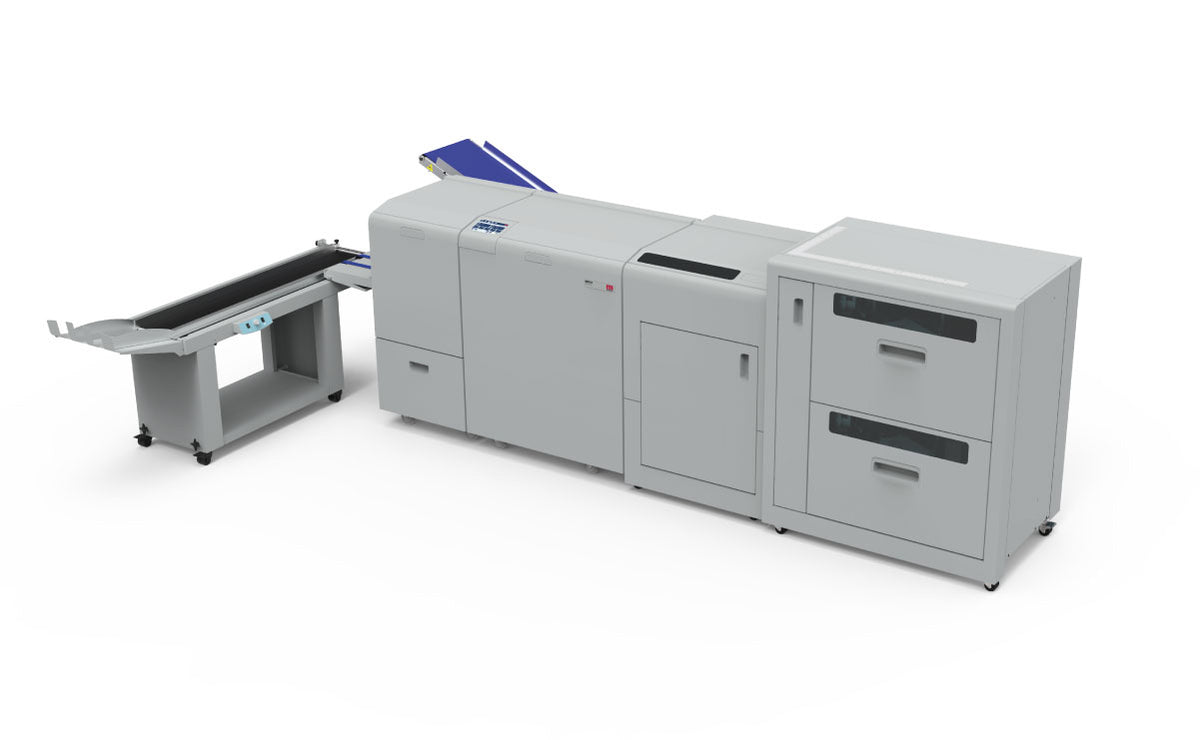

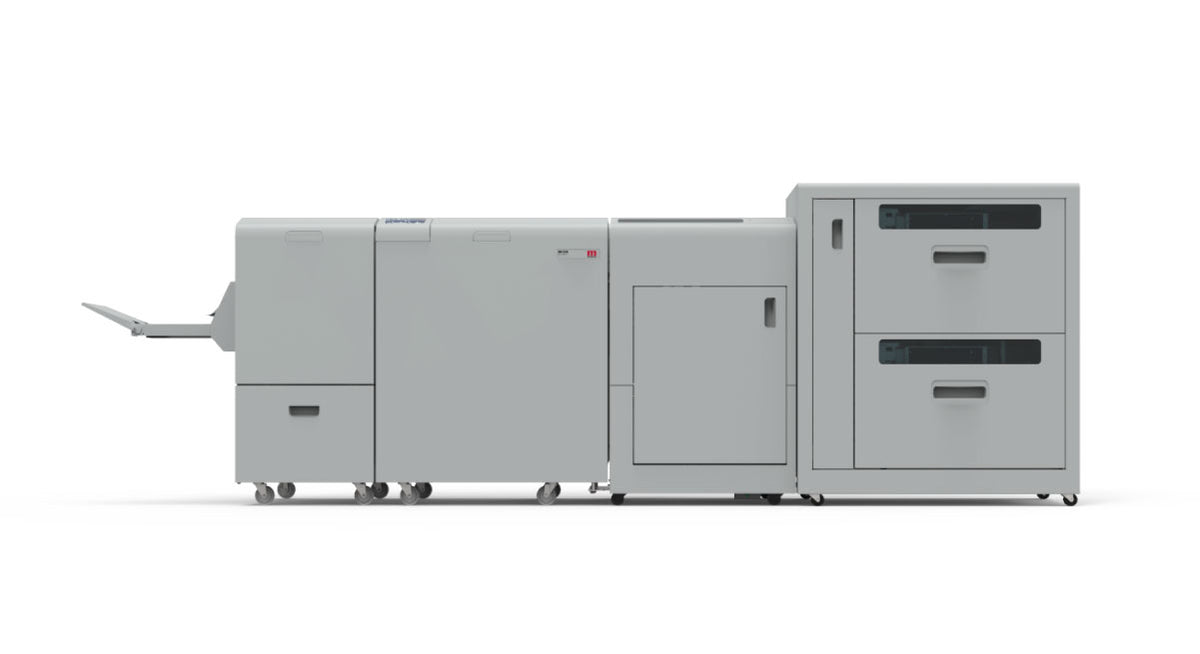

The Morgana BM4035e/BM4050e Series is a versatile, high-performance booklet maker, designed for low to mid-volume digital production. With the ability to produce square-folded booklets, including A4 landscape formats, this system delivers exceptional quality, reliability, and efficiency for commercial print environments, corporate print rooms, and in-plant production.
See a case study on this system here.
Key Features
π· Versatile Booklet Production β Supports A6 to A4 Landscape booklets, 297 x 297mm book formats, and corner or edge stapling for both portrait and landscape A4 documents.
π· High Capacity β BM4035e handles up to 35 sheets (140 pages of 80gsm paper), while BM4050e processes up to 50 sheets (200 pages of 80gsm paper).
π· Long Sheet Support β Accepts sheets up to 660mm long without the CST module and 620mm with the CST module.
π· Performance Kit Upgrade β The BM4035e can be upgraded to a BM4050e with a performance kit, increasing speed and set processing capability.
π· Heavy-Duty Staple Mechanism β Maintenance-free patented stapling solution eliminates periodic service intervals.
π· Adjustable Staple & Fold Position β Patented set positioning mechanism allows fine-tuning of staple positions via the user-friendly touchscreen interface.
π· High Monthly Volume β Designed for an average of 30,000 booklets per month, with a peak volume of 40,000 booklets.
π· Skew Compensation β Operators can adjust for skewed folds caused by long-sheet feeding using the intuitive touchscreen UI.
Technical Specifications
Specification | Details |
---|---|
Minimum Sheet Size | 145 x 210mm |
Maximum Sheet Size | 320 x 660mm (330 x 620mm with CST) |
Paper Weights | 64gsm to 350gsm |
Stapling | Heavy-duty staple cartridges (5,000 staples per cartridge) |
Power Supply | 100-240V AC, 50/60Hz, 650W |
System Dimensions | BM4000e - 880mm, FM - 530mm, CST - 720mm, VFX Feeder - 1070mm, BST4000-1 - 1170mm |

Optional Enhancements
β VFX High-Capacity Feeder β Dual-bin feeder holds up to 5,400 sheets, capable of feeding mixed stocks and weights, includes Adaptive Fan Control, automatic tray switching, and barcode reading for set integrity.
β CST Crease/Side Trimming Module β Enables bleed-trimmed booklets on the fly, eliminating the need for pre-production guillotine trimming.
β FM Finishing Module β Includes face trimming and square folding in a single unit, supporting longer sheets while reducing the systemβs footprint.
β BST4000-1 High-Capacity Book Stacker β Allows for extended unattended runs, stacking up to 1,000 A4 booklets (4 pages per set).
User Interface
π 7" Touchscreen Control Panel β Guides operators through job setup with intuitive graphics, enabling fast, professional results with minimal training.
Optimized Applications
π Booklet Production β Perfect for manuals, reports, brochures, and catalogs.
π’ Marketing & Direct Mail β High-quality brochures, promotional booklets, and event programs.
π’ Corporate & In-Plant Print Rooms β Ideal for internal publishing, reports, and training materials.
