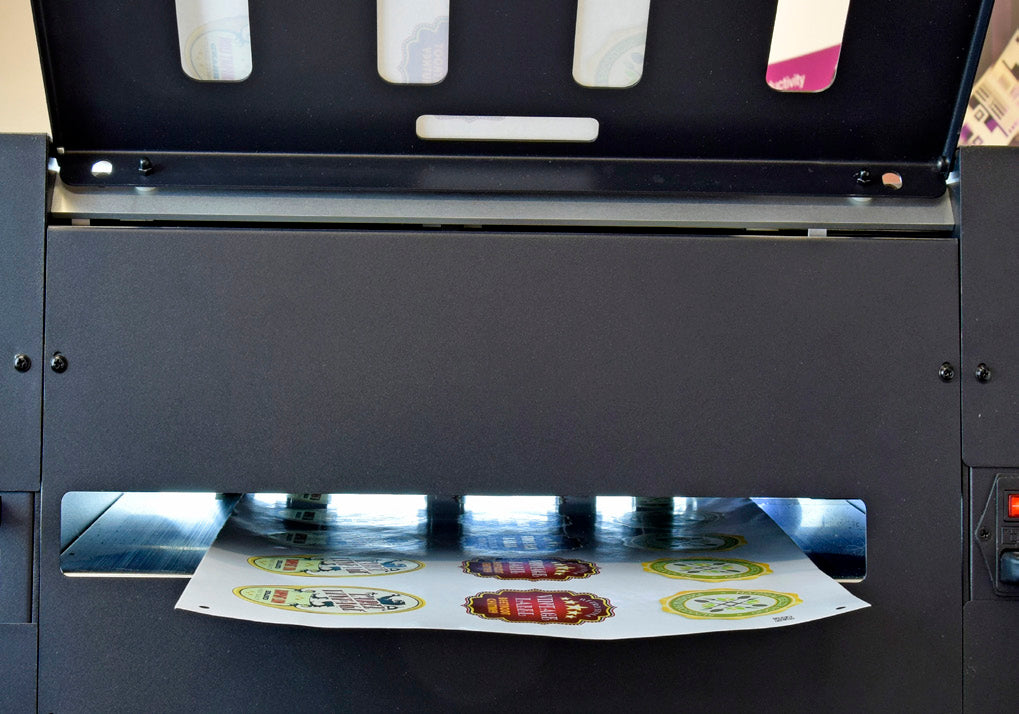

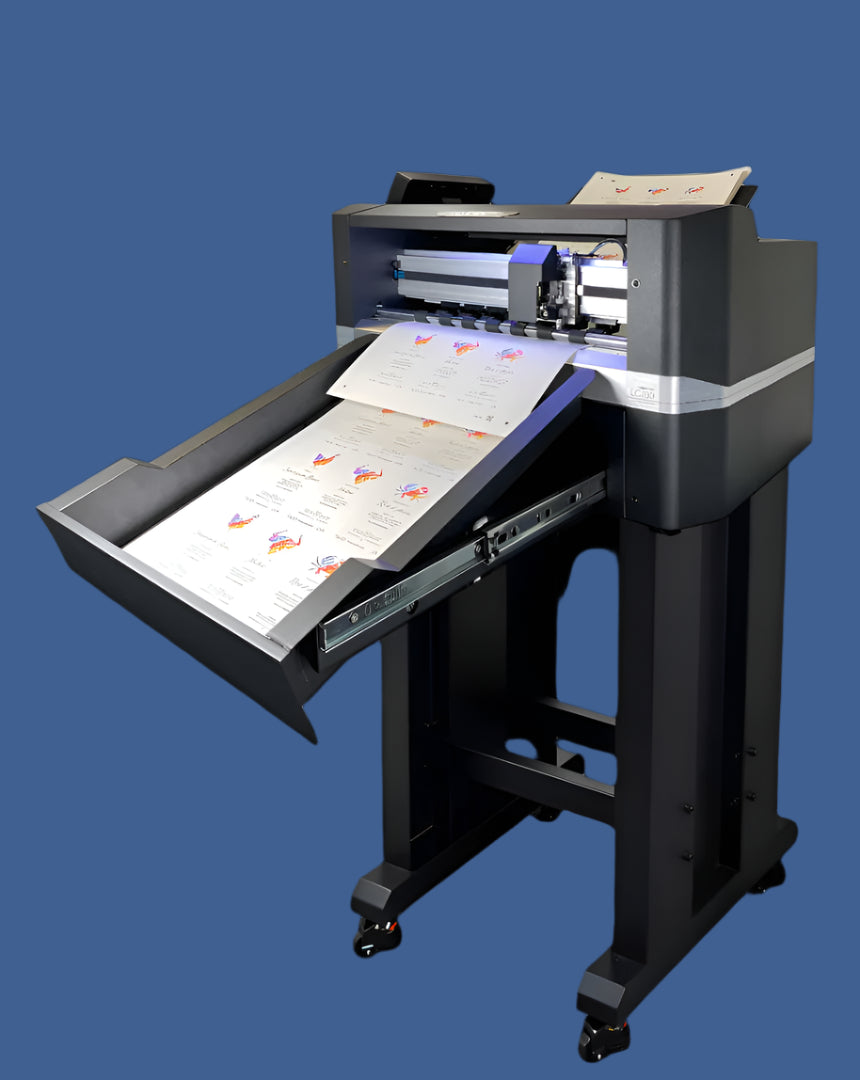

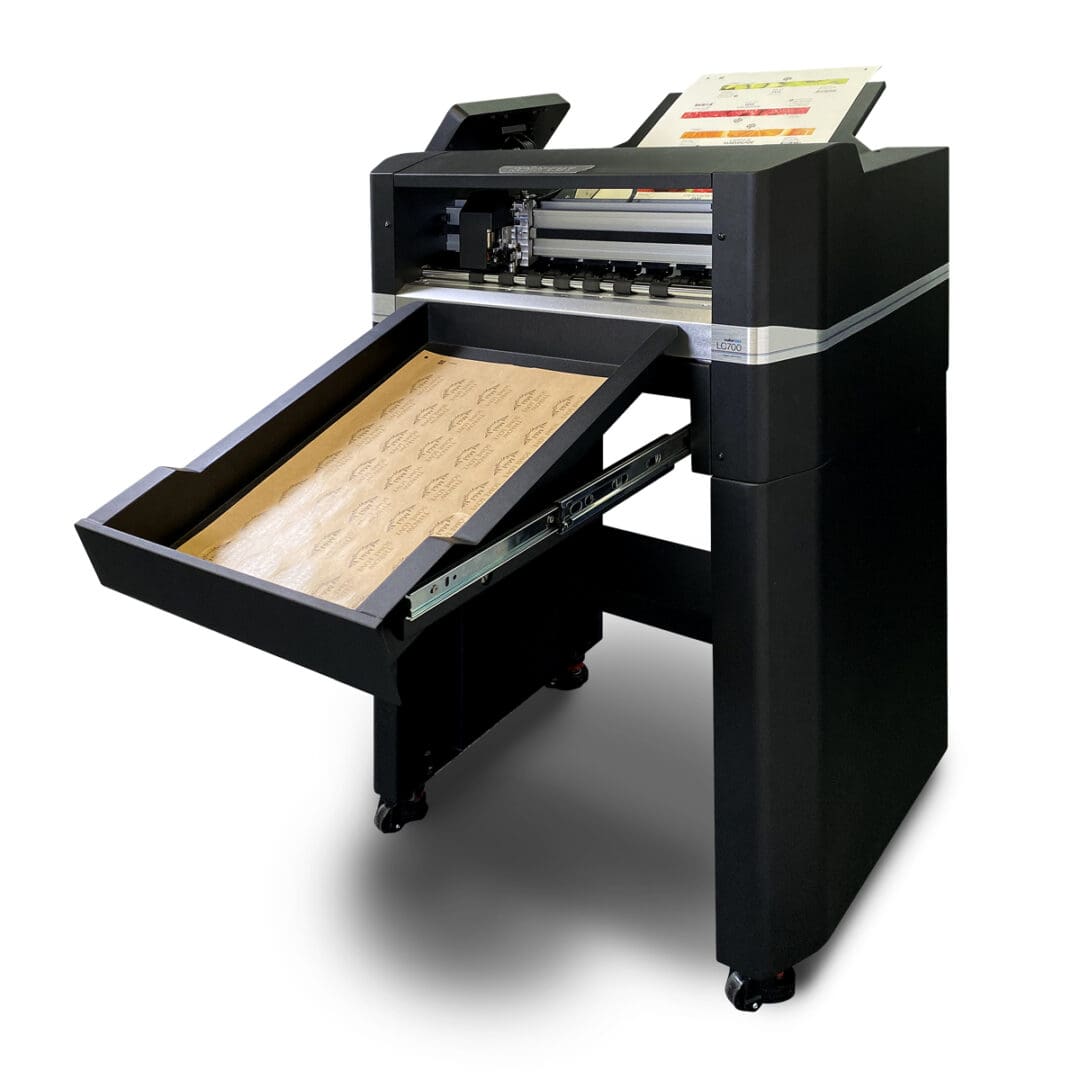

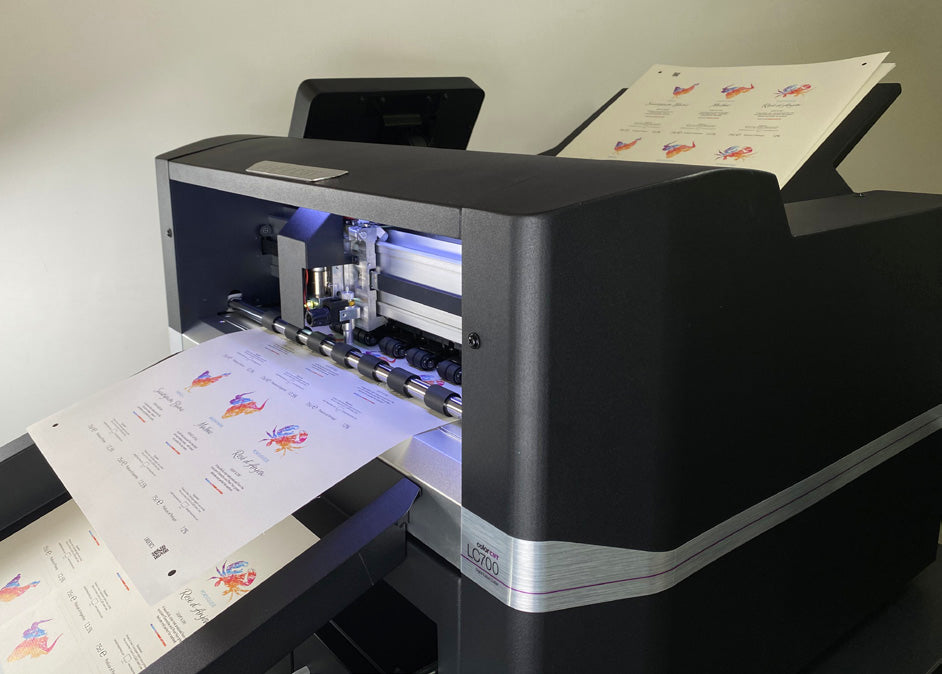

Intec ColorCut LC700 Automatic Label Cutter
Intec ColorCut LC700 Automatic Label Cutter
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
The Intec ColorCut LC700 is a high-performance, fully automated label cutter designed for precise, ultra-fast kiss-cutting in high-volume digital print environments. Engineered for unattended operation, the LC700 seamlessly integrates with QR job recognition, automatic sheet feeding, and CCD vision alignment, eliminating the need for costly dies and manual setup.
Key Features
🔷 High-Speed Digital Cutting – Cuts labels at up to 1060mm/sec for rapid and efficient production.
🔷 No Dies Required – Digitally processes any shape without traditional dies, reducing costs.

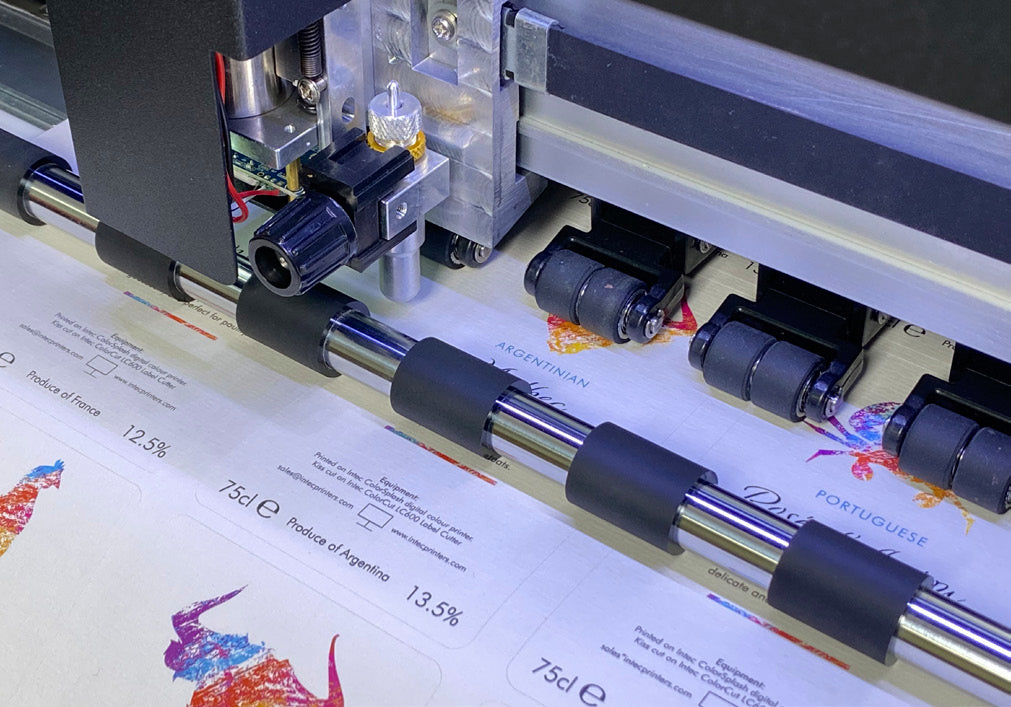

🔷 Dual Grip Feed System – Secures media during cutting, maximizing material usage.
🔷 Auto Job Recognition – Reads QR codes for instant cut file retrieval during mixed job batch sessions.
🔷 Automatic Feeder & Stacker – Holds up to 250 sheets for continuous, unattended operation.
🔷 SmartMark Registration System – High-resolution CCD vision technology (ARMS 9) ensures precise alignment.
🔷 Flexible Media Handling – Supports A4, A3, SRA3, A3+, and custom media sizes up to 750mm long.
🔷 Ergonomic Design – Integrated media catch tray and mobile stand for space efficiency.
System Specifications
| Specification | Details |
|---|---|
| Max Media Size | 330 x 750mm |
| Min Media Size | 150 x 190mm |
| Media Thickness | 140gsm (0.14mm) – 350gsm (0.35mm) |
| Auto-Sheet Capacity | Up to 250 sheets |
| Max Speed | 1060mm/sec |
| Max Cutting Force | 750gf |
| Registration System | Vision3 CCD ARMS 9 for precision alignment |
| Cut Position Accuracy | +/- 100 microns |
| Job Recognition | QR code scanning for automated file retrieval |
| Compatible Software | Adobe Illustrator® (CS6 – CC2024), CorelDRAW® (X8 – 2024) |
| Power Supply | 100-240V AC, 320W, 4.2A |
| Weight (Unpacked) | 39kg |
| Dimensions | 690mm (W) x 1010mm (D) x 1285mm (H) (includes feeder tray & media trays) |
Optimized Applications
- High-Volume Label Production – Ideal for mass-production of custom labels.
- Digital Print Finishing - Streamline on-demand label cutting for print shops.
- Promotional Materials - Produces custom stickers, decals, and marketing materials.
Optional Enhancements
✔ Adjustable Cutting Blades – Supports 30°, 45°, and 60° blades for various substrates.
✔ ColorCut Pro Software – Advanced standalone job management for offline processing.
✔ Height-Adjustable Stand – Enhances ergonomics and workflow integration.
Support & Training
Intec provides comprehensive training via in-person sessions, Zoom, TeamViewer, and downloadable guides. A dedicated technical support team and same-day consumable dispatch ensure uninterrupted productivity.
