Foliant Gemini 400 NG-T 2UP Semi-Automatic Laminator

Gemini 400 NG-T: Brochure Here

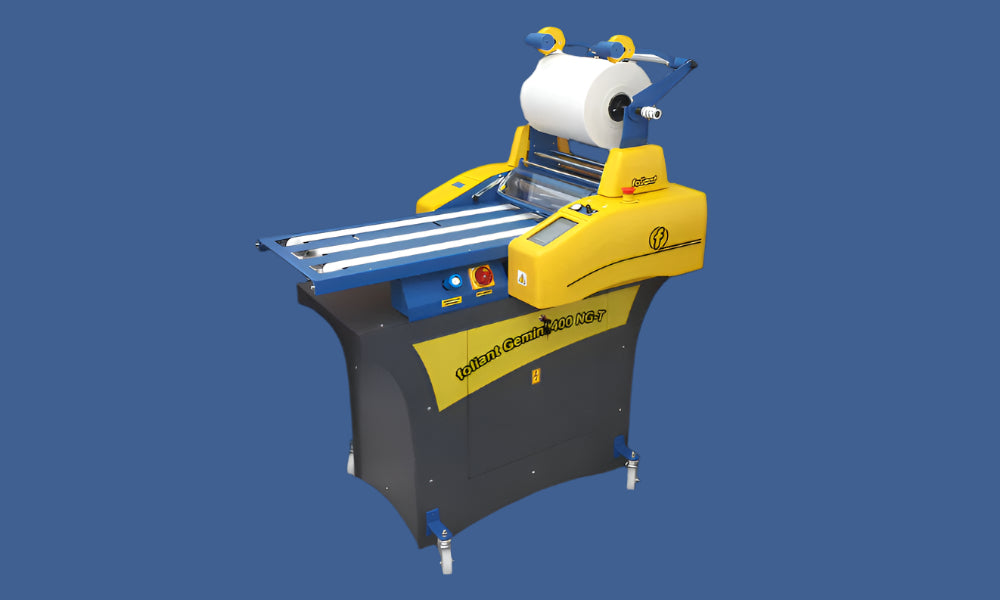

The FOLIANT Gemini 400 NG-T is a top-of-the-line laminating machine designed specifically for digital output. It boasts a pneumatic pressure system with easily adjustable rollers, and a compact integrated air compressor. With an operating width of 14.9", it is suitable for single side lamination in both digital and print shops, able to handle sheets up to 13.9" x 19.7" with a maximum speed of 49 feet/min. The machine's standout feature is its heavy duty mechanism, which provides exceptional working pressure. It runs on a single phase 220-240V supply and does not require an external source of pressured air. Overall, it is a stylish and user-friendly machine that is perfect for professional lamination tasks.

Features

• Easy operation
• Length of the laminated sheet is not limited
• Film is mounted on an easy handle shaft with a film tension control breaker
• Film holder unit is equipped with a trim slitter and perforation wheel
• De-curl blade for offset printed sheets
• De-curl roller for digitally printed sheets
• Equipped with a synchronized feeding conveyor and adjustable side guide for easy loading
• Manual separation is easy due to perforation of the film
• Can be upgraded with an automatic separator
• The machine laminates BOPP films (24 – 42 microns) and Nylon films (max. 35 microns)

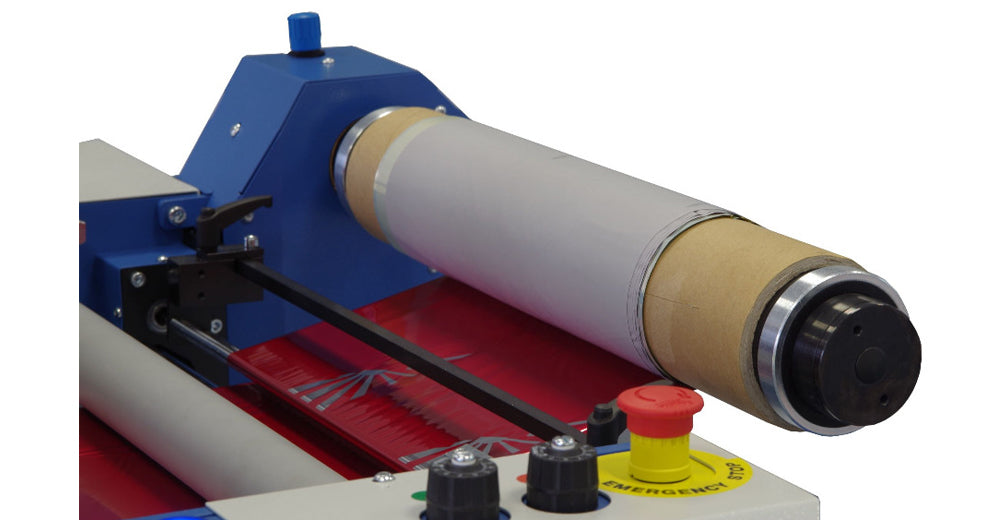

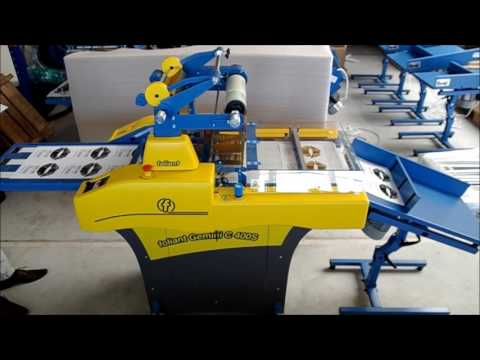

• Optional Foliant Foiler, film supply roll shaft and/or non-sticky pressure roller available

Specifications
