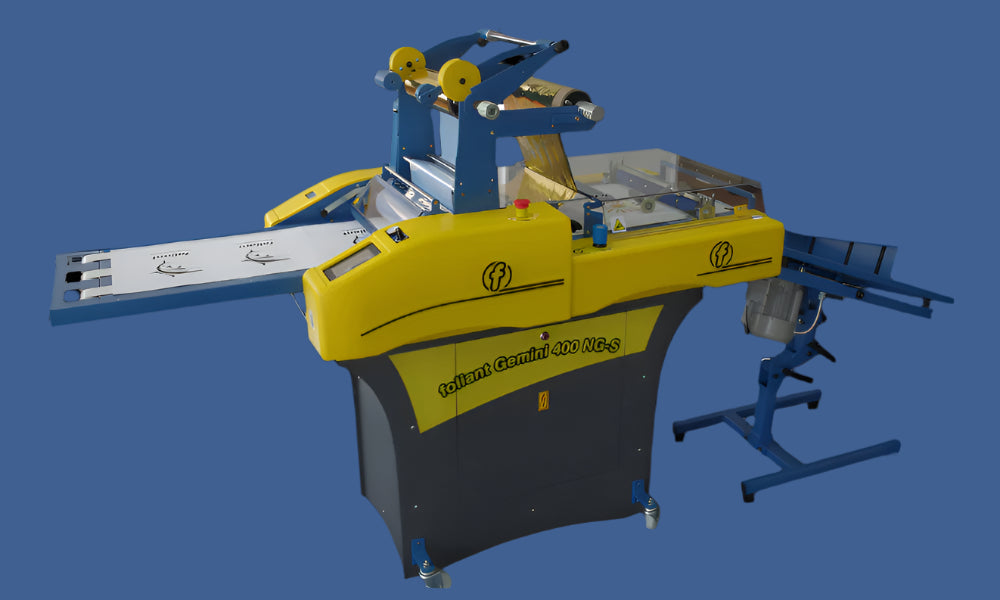

Foliant Gemini 400 NG-S 2UP
Foliant Gemini 400 NG-S 2UP
Semi-Automatic Laminating System
The Foliant Gemini 400 NG-S is a next-generation semi-automatic high-pressure laminator designed for digital and offset printing environments. With pneumatic roller pressure, an integrated compressor, and automatic separation, it offers professional lamination with minimal footprint and fast setup. This model supports up to 14.96” x 22.83” sheets and is optionally upgradable to support 25.98” long sheets, making it perfect for modern print shops.
Key Features
🔷 High-Pressure Pneumatic Rollers – Integrated compressor delivers consistent lamination pressure without external air.
🔷 Semi-Automatic Operation – Manual feeding with automatic belt separation and stacking.
🔷 Touchscreen with PLC Control – Intuitive interface manages temperature, pressure, and speed.
🔷 Dual De-Curl System – Blade for offset prints; roller for sensitive digital prints.
🔷 Quick Warm-Up – Ready in under 5 minutes for fast job starts.
🔷 Compact Size – Floor space of just 29.1” x 86.6”, ideal for tight shops or in-plants.
🔷 Infrared-Heated Chrome Roller – Precision lamination at up to 49 ft/min.
Specifications
| Specification | Details |
|---|---|
| Max Speed | 49 ft/min |
| Max Sheet Size | 14.96” x 22.83” (25.98” with XL Module) |
| Min Sheet Size | 7.87” x 11.8” |
| Paper Weight Range | 115 – 350 gsm |
| Max Performance | 1,200 SPH (13.9” x 19.7”) |
| Film Compatibility | BOPP (24–42μm), Nylon (24–35μm w/ option) |
| Warm-Up Time | 5 minutes |
| Temperature Control | 176°–284°F (80°–140°C) |
| Power Requirements | 230V AC, 50–60Hz, 2,800W |
| Compressor | Built-in |
| Footprint | 29.13” W x 86.6” L |
| Machine Weight | 407 lbs |
Applications
📄 Flyers, Postcards & Mailers – Ideal for digital print shops seeking short-run lamination.
📚 Book Covers & Inserts – Adds durable finish for on-demand publishing.
🛍 Tags, Cards & Retail Inserts – Professional-quality lamination for packaging and signage.
🖨 In-Plant Printing Departments – Compact solution for corporate or institutional lamination.
Available Options

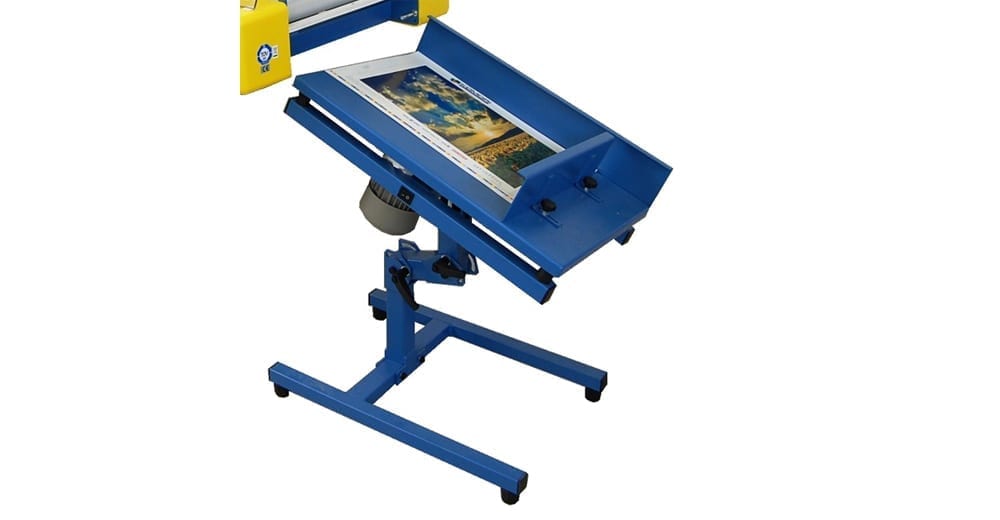

📍 Jogger 400 – Vibrating reception tray for 3.9” stacked output.
📍 Reception Unit RU 400 – Adjustable manual output tray.
📍 Non-Sticky Pressure Roller – For laminating windowed or adhesive-backed sheets.
📍 Nylon Film Module – For processing Nylon films up to 35μm.
📍 XL Module – Supports sheets up to 25.98” long (e.g., Xerox iGen4 max output).
📍 Extra Film Roll Shaft – Speeds up roll changes for continuous production.
📍 Foliant Foiler – Enables metallic and spot varnish film applications (gold, silver, red, etc.).
⚠️ Machine must be used with either the Jogger 400 or Reception Unit RU 400.
Benefits
✅ Professional-grade lamination in a compact footprint.
✅ No external air needed—fully pneumatic pressure system built in.
✅ Supports both offset and digital output with dual de-curling.
✅ Upgrade-ready for longer sheet sizes and specialized films.
✅ Ideal for short- and mid-run jobs with automatic sheet separation.
