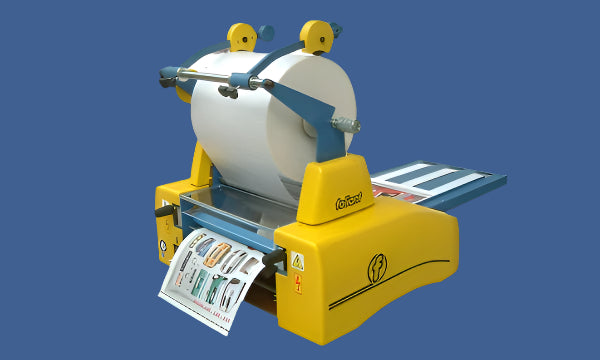

Foliant 400T
The Foliant 400T is a compact 15" manual laminator for digital and offset prints. Dealer pricing, financing & expert service at Mid-State Litho.
Request a Quote
Tell us what you needโweโll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Compact Manual Laminator
The Foliant 400T is a compact, entry-level single-sided laminator ideal for small digital and offset print shops. With a max sheet width of 15", speeds up to 23 ft/min, and support for BOPP films, it offers simple, professional-grade lamination with minimal setup. Manual feeding and separation, an adjustable de-curl bar, and an optional modular stand make this system perfect for low-volume, high-quality production.
Key Features
๐ท Manual Feed and Separation โ Designed for hands-on operation with synchronized feed conveyor and film perforation.
๐ท Adjustable De-Curl Bar โ Ensures flat output for a wide variety of paper types.
๐ท Film Tension Control Breaker โ Helps maintain clean alignment for BOPP film rolls up to 9,842โ.
๐ท Upper Heated Roller + Hard Rubber Roller โ Heated by infrared spiral with contact temperature sensor for accurate control.
๐ท Trim Slitter and Perforator Included โ Integrated with film holder for edge trimming and manual sheet separation.
๐ท Compact Footprint โ Measures only 29" x 46", fits easily into tight production spaces.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 15โ x 27.5โ |
| Min Sheet Size | 11.8โ x 9.8โ |
| Max Speed | 23 ft/min |
| Paper Weight | 115 โ 350 gsm |
| Film Compatibility | BOPP (24โ42ฮผm) |
| Warm-Up Time | 5 minutes |
| Temperature Range | 70ยฐโ284ยฐF |
| Feeding | Manual |
| Separation | Manual (via film perforation) |
| Power Supply | 230V AC, 50โ60Hz |
| Power Consumption | 950 W |
| Footprint (W x L) | 29" x 46" |
| Weight | 200 lbs |
Applications
๐ Short-Run Brochures & Flyers โ Easily finish small batch marketing materials.
๐ Booklets & Covers โ Enhance durability and appearance of self-published and school materials.
๐ Tags & Product Cards โ In-house lamination for packaging and retail applications.
๐จ General Office Finishing โ Ideal for low-volume internal print finishing.
Available Options

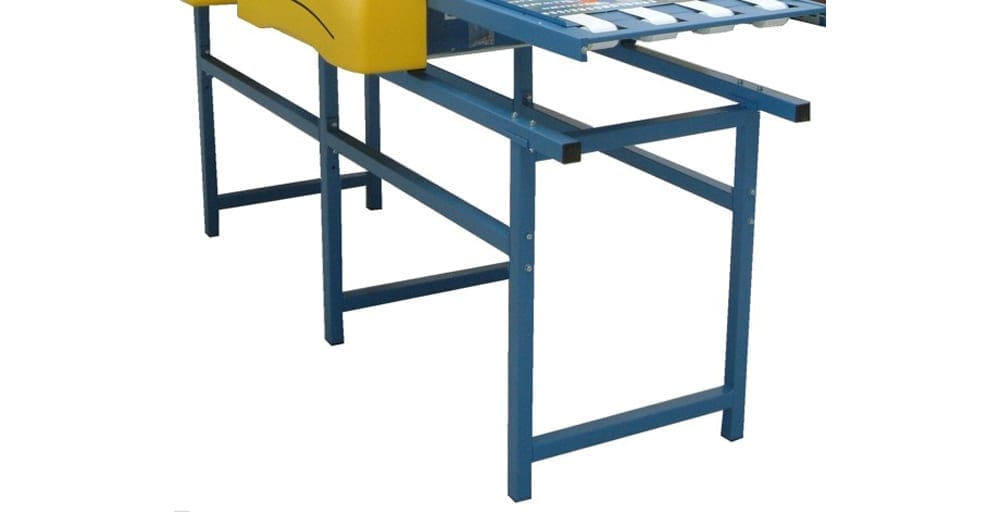

๐ Modular Stand MS400 โ Compact steel base for better ergonomics and portability.

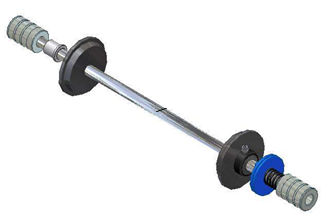

๐ Extra Film Roll Shaft โ Allows for quicker changeovers between jobs.
Benefits
โ
Simple, reliable manual operationโgreat for entry-level or light-duty needs.
โ
Small footprint and low power usage fit even the most space-conscious shops.
โ
Perfect for low-volume, high-quality lamination of standard-size print jobs.
โ
Affordable and easy to maintain, with basic setup and minimal training required.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
