Foliant Pollux 760 SF
The Foliant Pollux 760 SF delivers industrial single-sided lamination up to 29.9" wide. Dealer pricing, financing & service at Mid-State Litho.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Industrial laminator

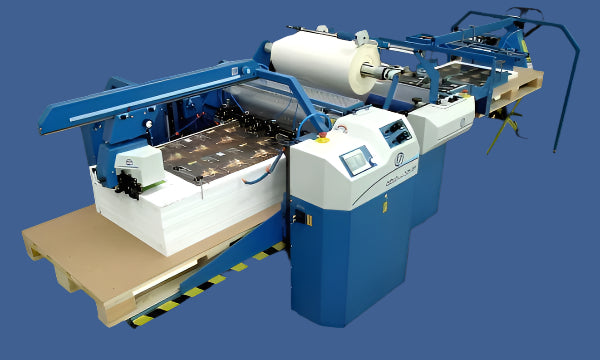

The Foliant Pollux 760 SF is a high-speed, heavy-duty single-sided laminating machine for industrial-scale lamination of offset and digital prints. It runs at up to 164 ft/min, takes sheets up to 29.9" x 43.3", and includes an integrated bump separator, which suits it to large commercial runs. A suction feeder and touchscreen interface keep operation accurate at speed, in a footprint that is compact for this class.
Key features
- Production speed up to 164 ft/min: up to 3,000 SPH portrait or 6,000 SPH landscape
- Suction stream feeder, Omron servo-driven, with PLC-controlled overlap accuracy of ±0.08"
- Single-sided thermal lamination compatible with BOPP, Nylon, and PET films
- Omron PLC with icon-based touchscreen; no language settings needed
- In-run adjustable de-curl bar keeps thin sheets flat
- Air shaft film mount for accurate positioning and fast changeovers
- Lamination between a polished chrome roller and a hard rubber pressure roller
- Walk-in maintenance section gives direct roller access for cleaning
- Integrated bump separator, PLC-controlled, for automated sheet delivery
- Laminates 115-600 gsm paper stocks with adjustable pneumatic pressure
Specifications
| Specification | Details |
|---|---|
| Max speed | 164 ft/min (50 m/min) |
| Max performance | 3,000 SPH (27.8" x 39.4"), 6,000 SPH (19.7" x 27.8") |
| Max sheet size | 29.9" x 43.3" (760 x 1,100 mm) |
| Min sheet size | 12.6" x 9.8" (320 x 250 mm) |
| Paper weight range | 115-600 gsm |
| Film compatibility | BOPP (24-42 μm), Nylon (24-35 μm), PET (20-26 μm) |
| Feeder capacity | 25.59" paper pile |
| Power requirements | 3-phase, 400V AC, 50/60Hz, 14,500W |
| Compressor requirements | 200 L/min @ 6-8 bar (external compressor) |
| Machine dimensions | 64.9" W x 161" L (with Jogger) |
| Weight | 2,182.5 lbs (990 kg) |
Applications
- Book covers and dust jackets in gloss or matte film
- Folding cartons and packaging components on thick stocks
- Posters and large format prints that need surface protection
- High-volume commercial runs of catalogs, brochures, and inserts
Available options
- Jogger 760: adjustable vibrating reception unit for neat sheet collection (3.9" pile)
- Pallet stacker: pneumatically controlled, manual scissor-lift, stacks up to 25.6" piles
- Pallet feeder: loads full paper pallets from the front, 25.6" capacity
- Film loader/manipulator: electric lift for film rolls up to 275.5 lbs, connected to the machine's circuit
- Trim slitter and perforator wheel included standard for film edge cleanup and tearing
Benefits
- Industrial speed in a footprint smaller than most machines in its output class
- Repeatable lamination quality at high volume
- Runs substrates from 115 to 600 gsm and three film types
- Tool-less adjustments and icon-based controls reduce operator error
- Expandable with stackers, feeders, and joggers toward full automation
