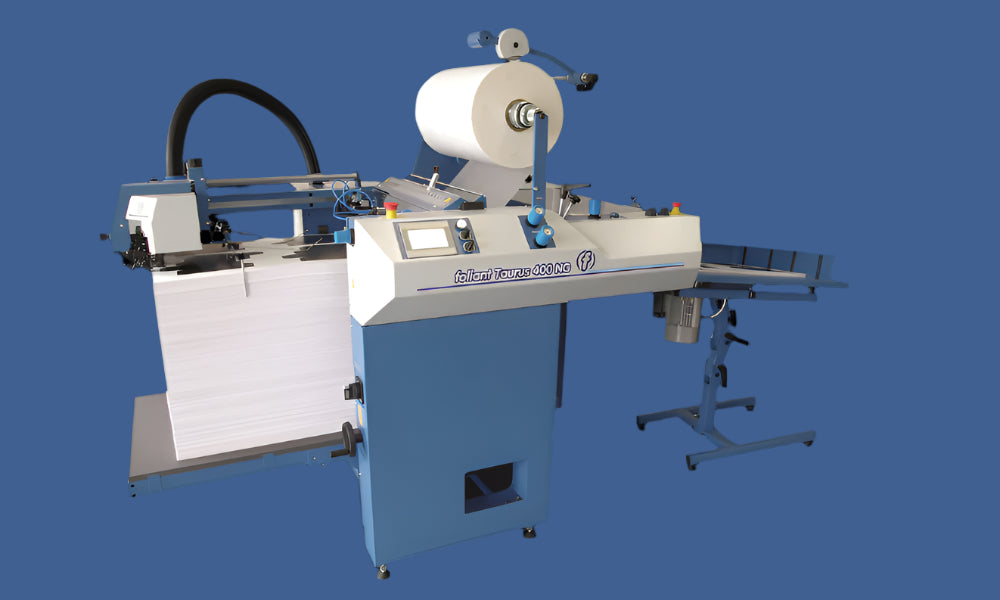

Foliant Taurus 400 NG

Automatic laminating system

The Foliant Taurus 400 NG is a compact single-sided industrial laminator built for heavy-duty digital and offset work. It runs at up to 131 ft/min, produces up to 4,800 sheets per hour of 14" x 20" stock, feeds from a 21.2" pile suction feeder, and takes sheet sizes up to 15.7" x 27.5". At 131 ft/min it runs roughly 50% faster than the Foliant Mercury 400 NG, making it the pick when a print shop needs B3-format lamination at production pace in a tight footprint. A double-sided version is available as the Taurus 400 NG 4x4.

Key features

• Foliant suction feeding head driven by an OMRON servo motor with Becker vacuum pump and central PLC control
• Single-sided thermal lamination of 115 to 600 gsm stocks using BOPP or nylon film; PET with the optional module
• Twin adjustable de-curling: blade for offset sheets, roller for toner-sensitive digital prints
• Heated chrome laminating roller with internal heating rings for even temperature at high speed; pneumatic pressure control with independent adjustment at each roller edge
• Micro-adjustable air shaft holds up to 9,842 ft of film, with trim slitter and perforating wheel
• Icon-based color touchscreen and PLC interface with no language settings to configure
• Integrated bump separator with fast-cycling rollers delivers sheets to the jogger or pallet stacker
• 8-minute warm-up

Specifications

Applications

Typical work: flyers, postcards, and mailers; covers for saddle-stitched and perfect-bound books; retail packaging inserts including cartons, cards, and product sleeves; and mixed digital and offset jobs. The high-pressure system and 4,800 SPH throughput suit it to long offset runs as well as short digital work.

Available options

• Jogger 400: vibrating output tray for 3.9" stacked reception
• Integrated motorized pallet stacker: fully automatic unloading into a high pile on pallet
• Foliant Foiler: applies metallic or spot varnish films over digital toner
• Non-sticky pressure roller for windowed or glue-sensitive jobs
• PET film module for PET lamination up to 25μm
• Film loader/manipulator: lifts rolls up to 275.5 lbs for easier changeover
• XL module: extends sheet length to 39.3" (sheets past 29.5" unload manually)
• XXL feeding table: manual feed of sheets up to 51.2" long
• Anti-static bar to reduce charge on laminated output for better stacking

Note: a jogger or pallet stacker is required for proper operation.

The Taurus 400 NG puts 131 ft/min production lamination in a footprint under 8 feet long, handles coated, thick, and long-format sheets, and sets up fast from the touchscreen. Film support extends to PET and foil with the optional modules. Call Mid-State Litho for a quote, installation, and operator training.

About Foliant lamination equipment

Foliant builds sheet-fed laminating systems in the Czech Republic. Mid-State Litho carries 20 Foliant machines across six lines: Gemini, Vega, Mercury, Taurus, Castor and Pollux, in B3, B2 and B1 formats, single-sided and 4x4 double-sided. The Taurus line is the faster of the two mainstream NG families, part of the wider range of laminating machines MSL stocks. Every Foliant machine MSL sells is quoted with delivery, installation and operator training.

Choosing between the Taurus 400 NG, Mercury 400 NG and Taurus 400 NG 4x4

All three machines take the same maximum sheet, 15.7" x 27.5", and share the same suction feed and bump separation. The difference is speed and sides.

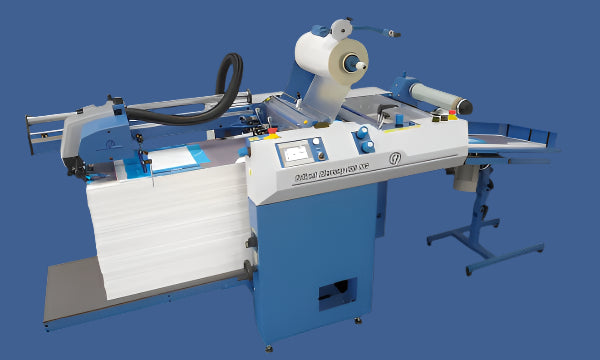

The Mercury 400 NG runs 88 ft/min and laminates one side. It suits a shop whose lamination volume is steady but not the bottleneck.

The Taurus 400 NG runs 131 ft/min and laminates one side. It is roughly 50% faster than the Mercury in the same footprint, so it fits a shop where lamination is holding up the bindery.

The Taurus 400 NG 4x4 laminates both sides in one pass. Pick it when double-sided work is regular rather than occasional, because doing two-sided lamination on a single-sided machine means running the pile twice.

Need B2 sheets instead of B3? Step up to the Taurus 530 NG or the Mercury 530 NG. You can also browse every single-sided laminator and double-sided laminator MSL carries, plus the laminating film to run on them.

Why buy the Taurus 400 NG from Mid-State Litho

Mid-State Litho has sold and serviced print finishing equipment since 1984 from Grand Rapids, Michigan. A Taurus 400 NG bought here arrives on our freight, gets installed by our technicians, and your operators are trained on it before we leave. Parts, film and service come from the same place, so there is one number to call when the machine stops.

Call for a quote and we will price the machine, the film you will run on it, and the install as one number.

Foliant Taurus 400 NG questions

How fast is the Foliant Taurus 400 NG?

It laminates at up to 131 ft/min and produces up to 4,800 sheets per hour on 14" x 20" stock.

What is the largest sheet the Taurus 400 NG takes?

15.7" x 27.5", which covers B3 digital and offset work.

How is the Taurus 400 NG different from the Mercury 400 NG?

Both are single-sided B3 laminators with the same maximum sheet size. The Taurus runs 131 ft/min against the Mercury's 88 ft/min, so it is the pick when the shop needs pace in the same footprint.

Is there a double-sided version?

Yes. The Taurus 400 NG 4x4 laminates both sides in one pass. It is a separate machine, listed at /products/foliant-taurus-400-ng-4x4.

How do I get a price on the Taurus 400 NG?

It is quoted per configuration. Request a quote and Mid-State Litho prices the machine with delivery, installation and operator training included.
