Foliant Vega 400SF
Foliant Vega 400SF
Industrial Laminator

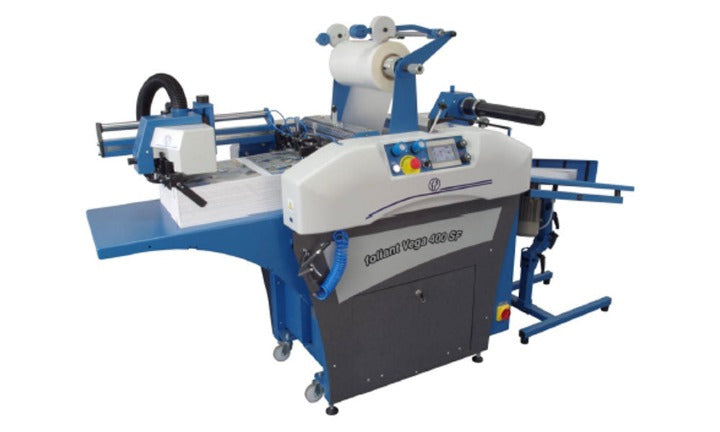

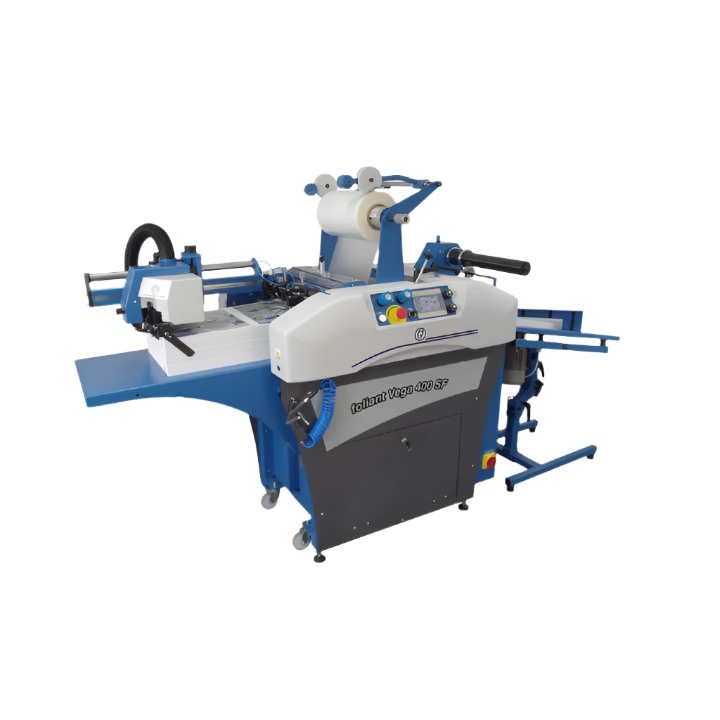

The Foliant Vega 400 SF is a compact, heavy-duty industrial laminating machine designed to handle both digital and offset outputs up to 15” x 26”. Equipped with a deep pile suction feeder, adjustable dual decurl bar, and pneumatic bump separator, the Vega 400 SF ensures precise, high-speed lamination across a wide media range. With a throughput of up to 2,300 sheets per hour and automation features unmatched in its class, it's an ideal choice for production-level lamination in print shops and finishing houses.
Key Features
🔷 Laminates up to 15” x 26” Sheets – Supports digital and offset sheets, from 115 to 500 gsm.
🔷 High-Speed Lamination – Speeds up to 65 ft/min, processing 2,300 sheets/hr (14” x 20”).
🔷 Integrated Deep Pile Suction Feeder – Originating from offset press feeders for smooth, consistent sheet input.
🔷 Dual Decurl System – Blade for offset and roller for digital stocks (to avoid surface scratches).
🔷 Non-Sticky Pressure Roller – Eliminates glue/tack buildup; ideal for windowed or sensitive sheets.
🔷 Touchscreen Control Panel – Easy-to-use interface with intelligent job interruption and pressure memory.
🔷 Pneumatic Bump Separator – Automatically separates laminated sheets for continuous output.
🔷 Quick-Change Film Shaft – With tension brake, perforating wheel, and inline trim slitter.
🔷 8-Minute Warm-Up – Rapid start-up via internal dry electric heating system with sensitive temperature control.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 15” x 26” |
| Min Sheet Size | 7.8” x 11.8” |
| Paper Weight Range | 115 – 500 gsm |
| Lamination Speed | Up to 65 ft/min |
| Throughput | 2,300 sheets/hr (14" x 20") |
| Warm-Up Time | < 8 minutes |
| Temperature Range | 176° – 284°F |
| Feeder Capacity | 11” pile |
| Pressure Type | Pneumatic (87 – 116 psi / 5.3 cfm) |
| Power Supply | 230–240V AC, 50–60 Hz, 1 Phase |
| Power Consumption | 3,500 W |
| Footprint with Jogger | 71.6” W x 78” L |
| Net Weight | 838 lbs |
| Overlap Accuracy | ±0.08” |
Applications
🖼 High-Volume Offset Lamination – Fast, accurate lamination for standard commercial print jobs.
🖨 Digital Print Finishing – Designed for sensitive digital prints, including duplex printed toner sheets.
📦 Packaging Components – Laminates covers, sleeves, and wraps for short-run packaging.
📑 Photo Book Covers & Marketing Collateral – Delivers smooth, polished finishes on premium materials.
Available Options

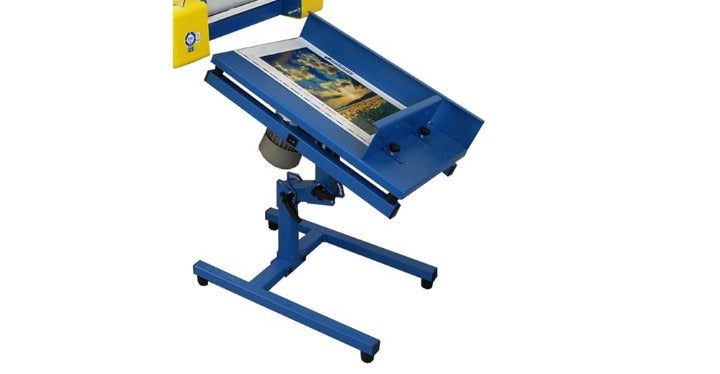

📍 Jogger 400 – Vibrating sheet reception unit (max 3.9” pile).
📍 Reception Unit 400 – Static adjustable desk for laminated sheet stacking.

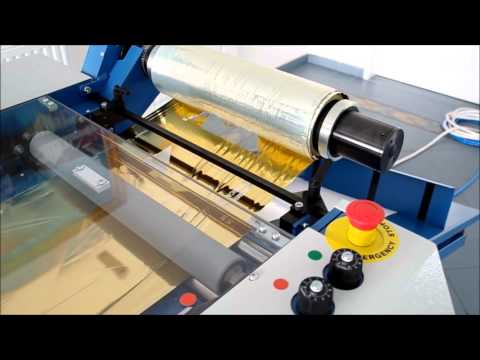

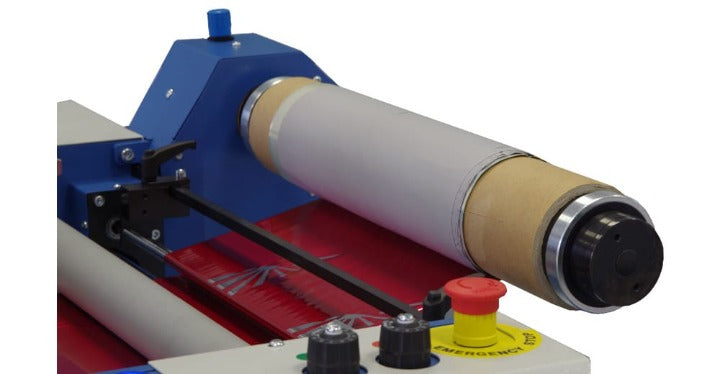

📍 Foliant Foiler – Applies metallic or spot-effect foils over digital toner.
📍 Extra Film Supply Shaft – Allows quick film changes for 3” or 1” cores.
📍 Air Shaft Upgrade – For tool-less roll installation, 3” core only.
📍 XXL Feeding Table Extension – For low-volume support of up to 51” long sheets.
📍 Anti-Static Bars – Ionization bars for static discharge on laminated output.
Benefits
✅ Delivers top-tier lamination for both digital and offset workflows.
✅ Minimizes manual cleaning with non-stick pressure roller.
✅ Improves productivity with automated sheet separation and easy setup.
✅ Reduces downtime through quick warm-up and easy film replacement.
✅ Built for long-term use, with robust frame and modular options.
