GBC
GBC Spire III Series
GBC Spire III Series
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

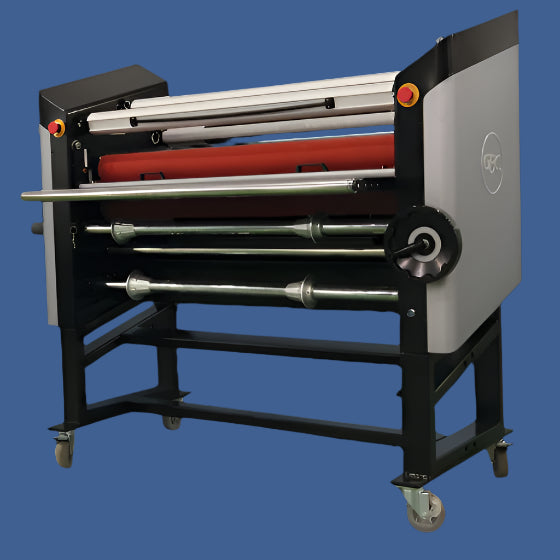

44T & 64T Thermal Wide Format Laminators
Heavy-Duty Thermal Laminators for Wide Format Mounting & Finishing
The GBC Spire III Series offers unmatched speed, durability, and versatility for professional thermal lamination and mounting. Available in 44" and 64" models, the Spire III 44T and 64T are ideal for signage, displays, and graphics requiring high-performance, long-lasting lamination. With a rugged all-steel frame, 4" heated rollers, and optional roll-to-roll operation, these machines are built for production-level environments that demand consistent results.
Key Features
🔷 Available in 44" or 64" wide format models
🔷 Independent upper & lower heated rollers with 300°F max temp
🔷 High-speed operation up to 20 ft/min for fast throughput
🔷 2" mounting gap supports rigid substrates and thick boards
🔷 Intuitive LED control panel and crank gap adjustment
🔷 Roll-to-roll capabilities with optional unwind/rewind shafts
🔷 All-steel construction for lasting performance in production settings
Specifications
| Model | Spire III 44T | Spire III 64T |
|---|---|---|
| Max Width | 44" | 64" |
| Max Speed | 20 ft/min | 20 ft/min |
| Max Temperature | 300°F | 300°F |
| Mounting Gap | 2" | 2" |
| Roller Diameter | 4" heated | 4" heated |
| Core Size | 3" | 3" |
| Voltage | 220V, 24A (NEMA 6-30) | 220V, 28A (NEMA 6-50) |
| Dimensions (W×D×H) | 61.5" × 31.5" × 55.9" | 81.2" × 31.5" × 55.9" |
| Net Weight | 691 lbs | 902 lbs |
Applications
-
Trade show and event graphics
-
Posters, banners, and backlit displays
-
Window signage and flexible graphics
-
Rigid board mounting and encapsulation
-
Thermal or pressure-sensitive laminating jobs
Available Options
-
Additional unwind/rewind shafts for roll-to-roll setup
-
Drop-in Autogrip and Multicore media shafts
-
Optional idler bars, embossers, and chill rollers
Benefits
✅ Thermal or cold film compatibility (Octiva®, Arctic®, AccuShield®)
✅ Professional-grade lamination across varied media types
✅ Minimal setup with tool-free loading and digital controls
✅ Efficient workflow with footswitch and photo eye safety
✅ Expandable system as production needs grow
