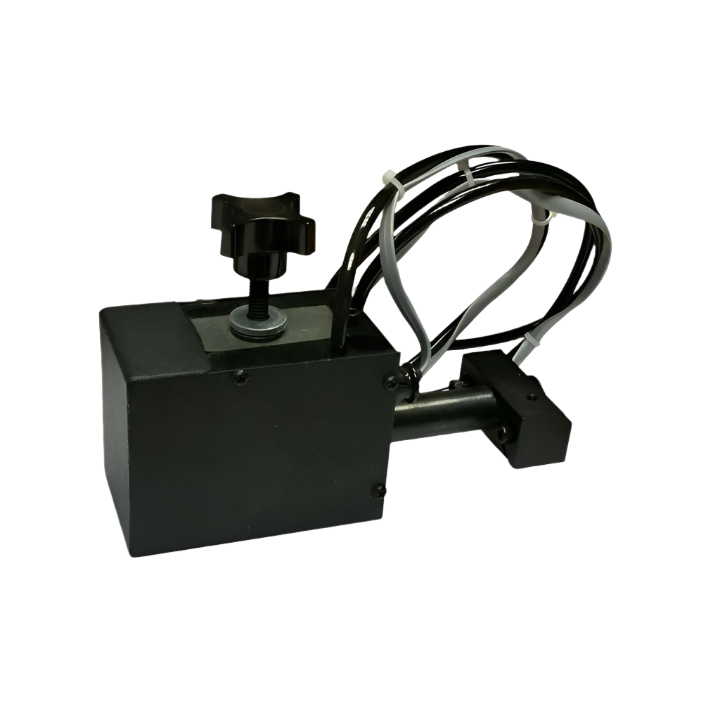

Graphic Whizard Pneumatic Drive Unit
The Graphic Whizard Pneumatic Drive Unit (part 94-072GW) fits the GW 8000P, 8000P-DS and GW 12000. It gives fast, clean numbering impact on NCR sets. Michigan-based Graphic Whizard dealer.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
For GW 8000P, GW 8000P-DS, and GW 12000 systems
The Graphic Whizard Pneumatic Drive Unit is an upgrade for high-speed, high-precision numbering, perforating, scoring, and slitting. It is compatible with GW 8000P, 8000P-DS, and GW 12000 systems. The drive unit gives rapid acceleration, accurate impact, and clean release for numbering work, including complex carbonless snap sets.
The unit is modular and built for future expansion. Lockable head rotation sets repeat options and accurate consecutive numbering. The feed mechanism gives accurate registration and feeding, especially on multi-part forms or NCR sets.
The GW 12000 version adds faster speeds and a built-in register board that holds alignment at scale.
Features
- Compatible with GW 8000P, 8000P-DS, and GW 12000 systems
- Pneumatic action provides fast, precise numbering impact
- Lockable rotation for repeat settings and custom sequences
- Accurately feeds carbonless forms for snap set creation
- Modular upgrade path without full system replacement
- Built-in register board (GW 12000) for better alignment
Specifications
| Specification | Detail |
|---|---|
| Compatibility | GW 8000P, 8000P-DS, GW 12000 |
| Drive Type | Pneumatic |
| Operation Modes | Consecutive, skip, repeat |
| Application Support | Numbering, perforating, scoring, slitting |
| Special Features | Snap set feeding, modular configuration |
Applications
- High-speed numbering on NCR and carbonless forms
- Booklets, tickets, forms, and transactional media
- Snap sets and sequentially numbered documents
- Finishing lines that need precise impact and fast throughput
Benefits
- Fast, clean, precise impact for high-volume production
- Numbering options for multiple repeat patterns
- Upgradeable design extends system life
- Integrates with existing Graphic Whizard setups
Machines this drive unit fits
The Pneumatic Drive Unit fits three Graphic Whizard systems:
The unit is a modular upgrade. You keep the base machine and change the drive. The part number is 94-072GW.
For wheels, blades and pads, see Graphic Whizard parts. For other models, see numbering machines or the Graphic Whizard page.
Shipping and support
The drive unit ships by ground carrier. It ships in 1 to 2 business days when it is in stock at our shop.
To confirm the fit on your machine, contact us with the model and serial number. For installation, see service and support.
Frequently asked questions
Which machines does the Graphic Whizard Pneumatic Drive Unit fit?
It fits the Graphic Whizard GW 8000P, GW 8000P-DS and GW 12000 systems.
What work does the drive unit support?
It supports numbering, perforating, scoring and slitting on the machines it fits.
Which numbering modes can I set?
You can set consecutive, skip and repeat numbering. Lockable head rotation holds a repeat setting.
Do I need a new machine to add the drive unit?
No. The drive unit is a modular upgrade for a GW 8000P, 8000P-DS or GW 12000. You keep the base system.
What is the part number?
The Graphic Whizard part number is 94-072GW.
