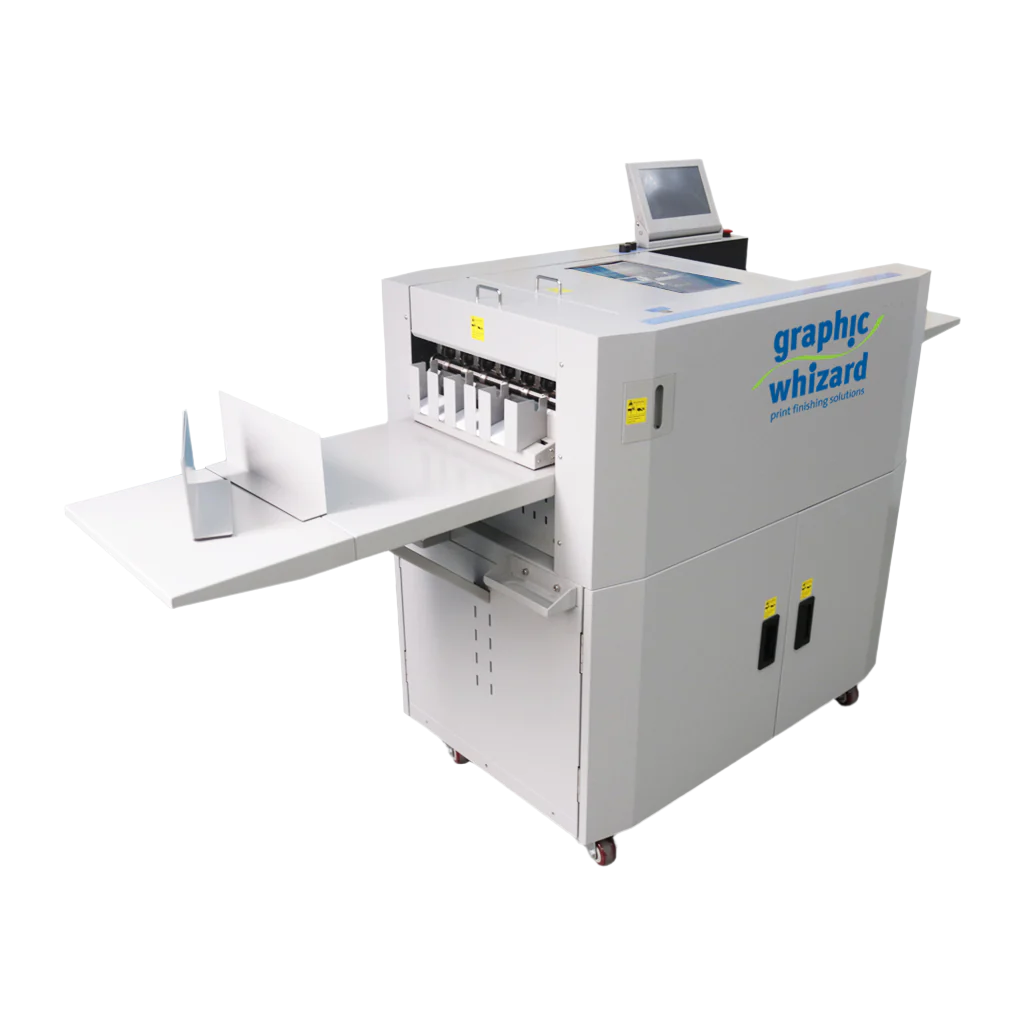

Graphic Whizard PT 8336SCC Multi
Slit, Cut, Crease, Cross/Rotary/Bi/Strike Perf & Score. The PT8336SCC Multi is a complete full-bleed finishing system designed for the digital marketplace.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
Slit, Cut, Crease Up/Down, Cross/Rotary/Bi/Strike Perf & Score
The PT 8336SCC Multi is a complete full-bleed finishing system designed for the digital marketplace. Equipped with interchangeable creasing/perfing dies, the PT 8336SCC Multi can quickly switch from perfing to creasing to prevent digital toner cracking. Strike perf capability alloys that the PT 8336SCC Multi to do partial perfs in both directions for “T” or “box” perfs.
The PT 8336SCC Multi makes short work of; business cards, greeting cards, invitations, brochures, pamphlets, catalogs, posters, book/CD covers, photographs, tent cards, and more by simply loading the high capacity 4” vacuum pile feeder. Processing sheets up to 400 gsm at speeds of 25 sheets per minute (8.5” x 11”, 2 cuts, 1 crease) the PT 8336SCC Multi is an ideal finishing solution to maximize efficiency while minimizing operator intervention.
- 25 sheets per minute
8.5” x 11” 2 cuts, 1 crease - 110-130V, 50/60Hz, 15A
- Minimum 8.26″ wide x 8.16″ long (20.98cm x 20.72cm)
Maximum 13″ wide x 26.5″ long (33.02cm x 67.31cm) 40” handfed (104 cm)
| Feed Capacity | 4″ |
| Feeder Type | Air suction Pile Feeder |
| Input Paper Weight | 150-400gsm |
| Input Paper Size | 8.26″ x 8.16″ (20.98cm x 20.72cm) 13”x 26.5” (33.02cm x 67.31cm) 40” Hand Fed (104cm) |
| Minimum finished cut size | 1.96″ x 1.89″ |
| Speed | Up to 25 sheets per minute |
| Crease Depth Adjustment | 5 steps auto adjust |
| Crease Width Options | 4 .6, 1, 1.2, 1.4 mm |
| Crease Direction | Up or Down |
| Number of Slitters | 6, variable gutters |
| Integrated Conveyor Outfeed Option | Yes |
| Cut Mark Image Shift Compensation | Yes (Lead and side) |
| Linear Perforating | Yes |
| Strike Perf Option | Yes |
| Cross Perforating | Yes |
| Micro Perforating | Yes 24/48 TPI |
| Custom Job Memory | 64 |
| Double Sheet Detect | Yes Ultrasonic |
| Bar Code Job Recognition | Yes |
| 9″ Color Touchscreen | Yes |
| Built in Job Creator | Yes |
| Warranty | 3 year parts and electronics |
NOTE: Machine performance will vary based on stock weight, type, and specifications of the job being performed.
