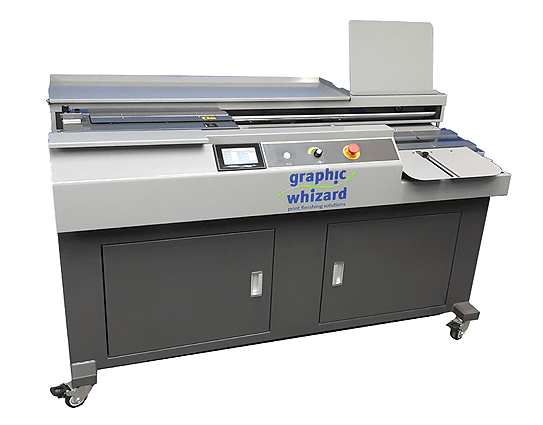

Graphic Whizard 460ATS EVA Perfect Binder
An easy-to-use system for consistent, professional quality short-medium run solutions. Affordable and efficient with standard features of more expensive units.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Details
The 460ATS EVA perfect binder boasts a 5-inch color touchscreen and a large glue pot with dual applicator rollers. It also includes disk application side glue, padding mode, and a book block glue trap setting. This industrial perfect binding system has a maximum binding speed of 460 cycles per hour and can bind books up to 18.1 inches long with a 2.25-inch wide spine. Additional features include a 20-tooth milling cutter with 2 notching blades for superior spine preparation, automatic clamping, and built-in dust extraction.
Features
- 460 cycles/hour
- 208-230V 1 phase / 20A
- Maximum Binding Length: 18.1" (46cm)
- Maximum Binding Thickness: 2.25" (6cm)
- Clamp opens and closes with the single press of a button
- Notching blades are housed beneath safety covers so that they are not exposed to the operator
- Hot melt glue is applied to the spine by a rotating application drum
- A scraper bar ensures that a smooth and uniform thickness of glue is always applied
- Nip dwell time can be adjusted to ensure professional looking finished pieces are produced every time
- 1 year warranty (excludes consumables)
Specifications
| Electrical | 208-230V 1phase / 20A |
| Cycle Speed | 460 cycles/hour |
| Max Binding Length | 18.1” (46cm) |
| Max Binding Thickness | 2.25” (6cm) |
| Milling/Notching | 20 tooth milling cutter, 2 notching blades |
| Dimensions | Length: 62” (156 cm) Width: 29” (72 cm) Height: 51” (130 cm) |
| Weight | 575 lbs (260 kg) |
| Clamping of Sheets | Electric Fully automatic |
| Clamping of Cover | Electric |
| Side Gluing | Yes, side glue pot with disk application |
| Cover Insertion | Manual |
| Warm up Time | 20-30 minutes |
| LCD Display | 5″ color touchscreen |
| Padding Mode | Yes |
| Dust Extraction | Vacuum, enclosed |
NOTE: Machine performance will vary based on stock weight, type, and specifications of the job being performed.Â
