Graphic Whizard PT33LSC
Graphic Whizard PT33LSC
Item Number:
PT33LSC
Graphic Whizard PT33LSC – Laminate • Slit • Cut

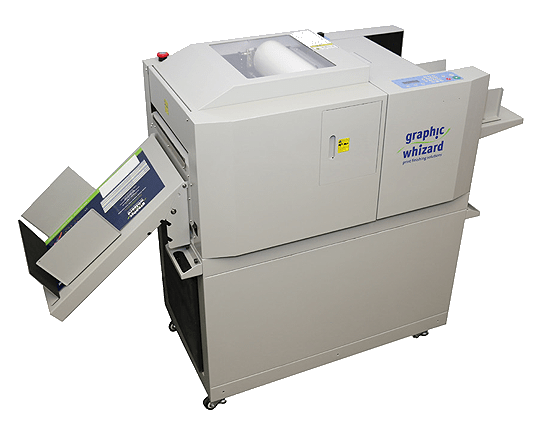

The Graphic Whizard PT33LSC is a high-performance laminating, slitting, and cutting system built for digital short-run work. It delivers true cut-to-bleed finishing, variable encapsulation for pouch lamination, single-sided laminating without a release liner, and precise anti-curl control for flat, professional output. Automatic setup, job memory, and a 2" vacuum pile feeder help operators keep production fast, repeatable, and reliable.
Key Features
- 🔹 True cut-to-bleed trimming for edge-to-edge finished pieces
- 🔹 Runs gloss, matte, soft-touch, and other specialty laminating films
- 🔹 Variable encapsulation mode with programmable border widths
- 🔹 External anti-curl lever keeps single-sided sheets flat
- 🔹 Automatic setup with job memory for recurring work
- 🔹 High film yield with minimal inter-sheet spacing
- 🔹 2" vacuum pile feeder for consistent feeding of digital stocks
- 🔹 Multiple modes: single-sided, double-sided, encapsulation, trim-to-bleed
- 🔹 Variable speeds up to 10 ft/min
- 🔹 Integrated foiling/sleeking capability for toner-based metallic embellishments
Specifications
| Minimum Sheet Size | 7" x 7" (17.78 cm x 17.78 cm) |
| Maximum Sheet Size | 13" x 19.7" (33.02 cm x 50.03 cm) |
| Paper Thickness | 100–350 gsm |
| Lamination Thickness | 1.5, 3, 5 mil |
| Laminating Modes | Double-sided, single-sided (no release film), adjustable encapsulation, trim-to-bleed |
| Laminating Width | 4.4" – 12.9" (custom widths available) |
| Cutting Method | Two automatic side slitters + one guillotine cutter |
| Feeding Method | 2" vacuum pile feeder |
| Speed | Variable, up to 10 ft/min |
| Machine Weight | 584 lbs (265 kg) |
| Dimensions (L × W × H) | 64.9" × 24.4" × 43.3" (165 cm × 62 cm × 110 cm) |
| Electrical | 110–130V, 60Hz, 15A |
Warranty: 1-year warranty (excludes consumables). Performance may vary based on stock, weight, and job specifications.
Applications
- 📄 Short-run brochures, flyers, and sell sheets
- 📚 Laminated book covers, menus, and in-store signage
- 🪪 Pouch lamination for badges, passes, and ID media
- 🧾 Cards, tags, and packaging inserts trimmed accurately to bleed
- ✨ Foiled logos, text, and spot accents for premium finishes
Available Options
- 📌 Foiling / sleeking attachment for toner-based metallic effects
- 📌 Specialty films including soft-touch and textured laminates
- 📌 Custom laminating widths and film configurations
Benefits
- Consolidates laminating, slitting, and cutting into one compact system
- Reduces setup time with automated adjustments and stored job programs
- Delivers flat, sale-ready output for single-sided laminated work
- Adds high-value foil embellishments without dies or long makereadies
- Ideal for digital print shops, in-plants, and short-run production environments
