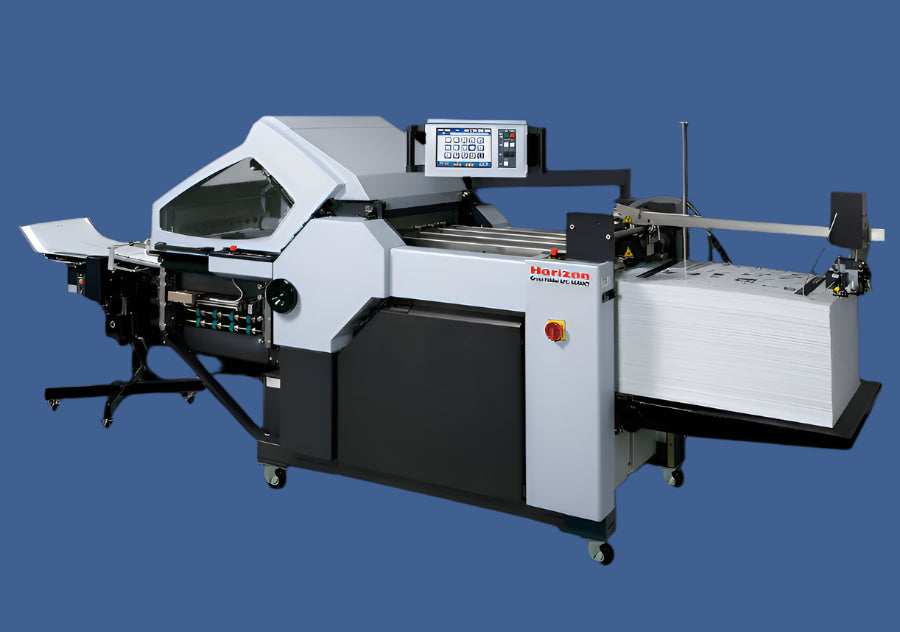

Horizon Cross Folder AFC-564AKT
The Horizon Cross Folder is a high performance, space efficient fully-automated cross-knife folding machine.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Horizon AFC-564AKT cross folder. Horizon cross-folder for right-angle commercial fold work with automated setup features.
Overview · Specifications · Why Mid-State Litho · Related · Request a quote
Overview
The AFC-564AKT targets cross-fold and multi-direction commercial folding. Right-angle work is where manual buckle folders lose the most time on make-ready.
The Horizon AFC-566AKT is a high-performance, fully automated knife-folding machine designed for precision, efficiency, and ease of use.
With automated adjustments, advanced rotary suction feeding, and high-speed folding, the AFC-566AKT is an ideal solution for print shops, manufacturers, and businesses needing professional folding capabilities.
Built by Horizon International in Japan. North American distribution through Standard Finishing Systems. Sold, installed, and serviced in Michigan and the Great Lakes by Mid-State Litho.
Key features
- Cross-fold production architecture

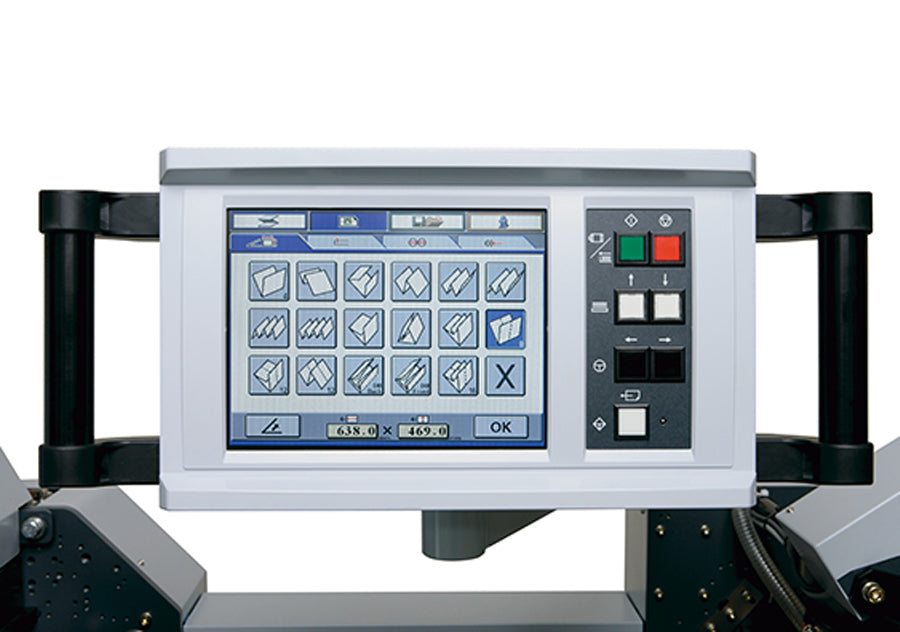

- Horizon AFC automated setup on equipped systems
- Commercial right-angle fold work
- Dealer install and service
Specifications
| Specification | Details |
|---|---|
| Machine Structure | 6KTT (6 Buckles + Fold Knife + 2 Buckles Below Knife) |
| Sheet Size (Max) | 21.97” x 33.46” (43.3” with optional extension table) |
| Sheet Size (Min) | 5.04” x 5.83” (Register guide min. width 3.0”) |
| Paper Weight Range | 35 to 220 gsm |
| Belt Speed | 30 to 230 m/min (99 to 754 ft/min) |
| Knife Fold Speed | 180 m/min (590 ft/min) |
| Production Speed | 42,000 cycles per hour (suction), 21,000 cycles per hour (knife) |
| Buckle Fold Length | 1.2” to 17.7” (Buckle 1-3, 5), 1.2” to 14.1” (Buckle 4, 6) |
| Vacuum Pump | 40 mÂł/hr |
| Power Requirements | 230V / Y400V, 50/60Hz, 1.8/2.2 kW |
| Machine Dimensions | Main Body: 120.7” x 41.4” x 62.2” |
Ranges can vary by configuration. Confirm against the factory sheet for the options on your quote.
Why buy Horizon equipment from Mid-State Litho
Horizon International designs and manufactures this machine in Japan. Standard Finishing Systems (SDMC) is the exclusive North American distributor. Mid-State Litho is the authorized Michigan and Great Lakes dealer: quote, install, train, finance, parts, and factory-trained service.
We work with Horizon and Standard Finishing as allies. We still want the buyer searching for a Horizon dealer to find Mid-State Litho first: local trucks, multi-brand honesty when another brand fits better, and a number that reaches people who install the line. Call 1-800-343-4231 or request a quote. Full line: Horizon print finishing equipment.
Related equipment
Related: AFC-566AKT · commercial automatic folders.
Call 1-800-343-4231 to size this for your stock and volume.
