Horizon PST-44L Press Stacker
Horizon PST-44L press stacker with long 800 mm delivery. Tight two-step folds for brochures and booklets. Handles up to 470 mm wide signatures.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Long conveyor model for tighter folded signatures

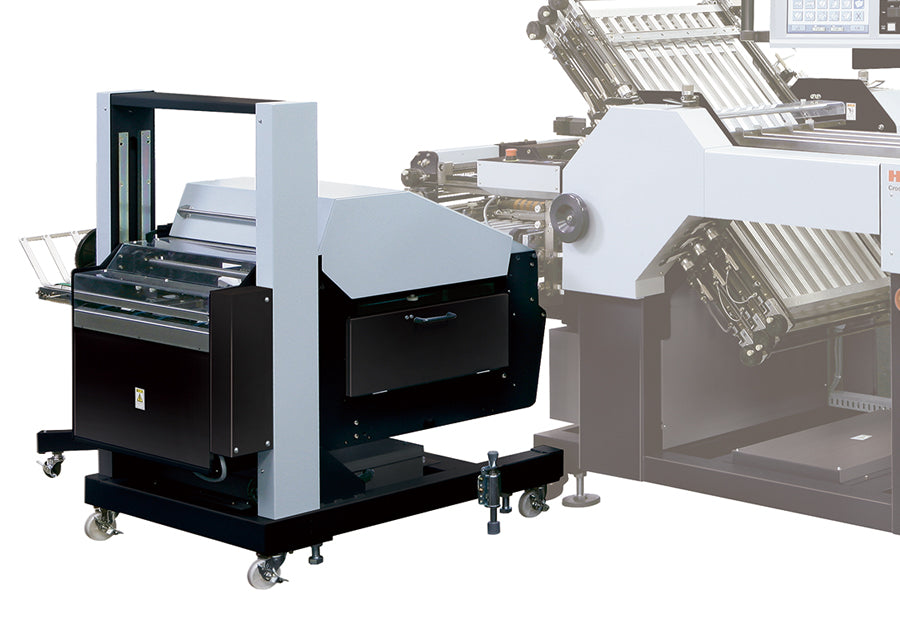

The Horizon PST-44L is a press stacker for Horizon folding systems. Its extended 800 mm delivery conveyor is built for longer production runs and better operator efficiency. A two-step pressing mechanism first removes air from folded signatures, then tightens the fold, for crisp, clean results.
The PST-44L handles signature widths up to 440 mm (17.32") with offset delivery and up to 470 mm (18.5") without. It suits applications that need tight, flat folded booklets, and it works with a wide range of Horizon folder models in automated finishing workflows.
Features
- Two-step pressing mechanism for tight, air-free folds
- Long 800 mm delivery belt for extended production
- Space-saving design
- Can function as a booklet press in automated workflows
Specifications
| Specification | Details |
|---|---|
| Electrical | 3 phase 200 to 220 V or single phase 220 to 240 V, 50 or 60 Hz |
| Dimensions (W x D x H) | 84.5 x 38.6 x 53.6 in (2,145 x 980 x 1,359 mm) |
| Function | Press stacker for folded signatures; two-step press removes air from the signature, then tightens the fold; operated from the folder; also usable as a booklet press |
| Maximum signature width | 17.32 in (440 mm) with offset delivery; 18.5 in (470 mm) without |
| Delivery belt length | 31.5 in (800 mm) |
| Model variants | PST-44 standard, space-saving model with a 19.69 in (500 mm) belt; PST-44L with the longer 31.5 in (800 mm) belt for longer runs |
| Compatible folders | Delivery option for the Horizon AF-76, AFC-74, AFC-56, AF-566T4F and AF-406 series folders; confirm the connection with the dealer |
Specifications from the Horizon Folder Options Brochure (11/2020) and horizon.co.jp (AF series delivery section page). Verified 2026-11-07. Specs can vary by configuration and options. Confirm against the factory sheet for the unit you order.
Applications
- Folding and stacking of brochures, signatures, and booklets
- Press stacker integration with Horizon folders
- Commercial print finishing on long runs
Benefits
- Tight, flat folds for easy handling and packing
- Extended delivery length for smoother stacking during long runs
- Helps reduce operator strain and improve finishing consistency
- Integrates with Horizon folder models
